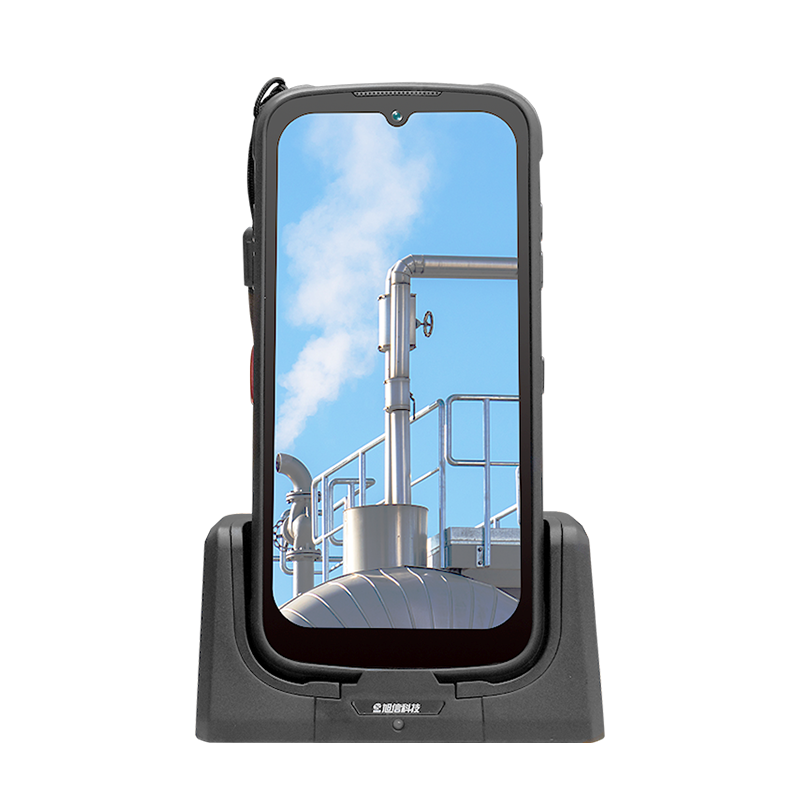

IP68 Mining Refinery EX Proof Mobile Phone
XUXIN KTW280 Explosion-Proof Mobile Phone is certified for chemical and coal mine dust explosion-proof standards, making it safe for use in coal mines containing explosive mixtures like methane and coal dust. It is also suitable for operation in Zone 1 and Zone 2, as well as Class IIA, IIB, IIC gas environments and hazardous dust conditions, ensuring reliable and secure performance in high-risk industrial settings.
Product Description
Introduction of IP68 Mining Refinery EX Proof Mobile Phone
XUXIN KTW280 Explosion-proof Cell Phone has obtained the chemical coal mine dust explosion-proof certification and can be used in coal mines with explosive mixtures such as methane and coal dust. It can also be used in Zone 1, Zone 2, Class IIA, IIB, IIC gas environments and dust environments.
Feature of IP68 Mining Refinery EX Proof Mobile Phone
1)IP68 Rugged Protection: Designed to withstand harsh environments, making it ideal for use in coal mines and other challenging conditions.
2)Infrared Night Vision Camera: Captures clear images even in complete darkness, enhancing visibility in low-light environments.
3)Powerful Performance: Runs Android 11 and is powered by the MTK6873 5G-A Dimensity 800 octa-core 2.0GHz processor for smooth multitasking and efficient operation.
4)Responsive Touchscreen: Features a 6.3-inch display with fast system response and precise touch control for seamless operation.
5)Ample Memory & Storage: Equipped with 8GB RAM and 256GB internal storage, easily handling both work tasks and entertainment needs.
Detail photos of Explosion-proof Cell Phone
Product parameters of IP68 Mining Refinery EX Proof Mobile Phone
| Explosion proof type |
Ex ib I Mb Ex ib IIC T4 Gb Ex ibD 21 T130℃ |
| Network frequency band |
GSM：B2/3/5/8 WCDMA：B1/2/4/5/6/8/19(带RXD) TDS：B34/39 CDMA：BC0/BC1/BC10(带RXD) TDD：B34/38/39/40/41 FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 5G:N1/3/5/8/20/28/38/41/77/78/79 |
| Downward/Upward Speed |
GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps |
| Processor | MTK6873 chip 5G-A Dimensity 800 2.0 GHz octa core |
| Operating system | Android 11 |
| Memory | 8+256GB |
| Battery capacity | Chemical: 8000mAh |
| Coal mine: 5500mAh | |
| LCD size/screen resolution | 6.3FHD incell； 1080*RGB*2340 |
| Touch | Support (10 points, incell) |
| Front end | 13 million (2.2 aperture) |
| Rear mounted | 48 million (rear main camera/1.8 large aperture)+20 million (infrared night vision)+16 million (ultra wide angle)+2 million (macro) |
| Flash lamp | support |
| Size | L173*W82*H19mm |
| Weight | 350g |
| Protection level | IP68 |
| SIM card | Dual card (small card)/Nano sim |
| WiFi Supports | WiFi (2.4g&5G, A/B/G/N/AC) |
| Bluetooth | Support (Supports Bluetooth 5.0) |
| GPS positioning/GPS/Beidou/GLONASS/Galileo | BT/WIFI/GPS three in one antenna, supporting four mode positioning (GPS+Beidou+Glonass+Galileo) |
| Charging interface | Type-C interface (supports fast charging) |
| Headphone jack | Type-C to 3.5 |
| USB OTG | support |
| Key | Touch button (main menu button+menu button+return button)+physical button (power button+volume+/- button+PTT button+AI button+FN button) |
| NFC | 13.56MHz (antenna placed in battery area); Supports ISO15693 and ISO1443A/B protocols, including read-write mode, card mode, and near-field communication (point-to-point file transfer) |
| Charging method | Wired charging, wireless charging, landline charging, magnetic charging |
| fingerprint identification | support |
| Input method | Touchscreen (above 10 points, incell) |
| Antenna | Built in antenna |
| Motor | Linear motor |
| Horn | 2W waterproof speaker |
| Receiver | Waterproof earpiece |
| Microphone | Dual silicon microphone (supporting noise cancelling MIC) |
| Radio | support |
| POC intercom | Support (broadcast activation APK mode) |
| Distance sensing | support |
| Brightness sensing | support |
| Gravity induction | support |
| Power breathing indicator | support |
| Compass | support |
| Gyroscope | support |
| Atmospheric pressure altitude | support |
| Waist clip, hanging rope | support |
| Infrared remote contro | support |
| Thermal imaging (optional) |
Resolution 256 * 192 Pixel size 17 μ m Field of view angle 50 ° Power consumption<1 50mW Temperature measurement range -20 ° C~170 ° C (Temperature measurement accuracy: Industrial temperature measurement: soil 2 ° C or 2% of the reading, whichever is greater) Temperature measurement distance of 1 meter Normal operating temperature -20~60 ℃ Best operating temperature 16 ° C-22 ° C Storage temperature -40~85 ℃ (relative humidity 5%~95% in non condensing state) |
| Temperature | -20℃～50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Place of use | It can be used in coal mines with explosive gas hazards such as coal dust and methane, and can also be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and combustible dust environments. |
FAQ
Q1：Can I customize Explosion-proof Cell Phone?
A1：Sure, our factory produces OEM/ODM .
Q2： Can you put my brand name(LOGO)on the products?
A2: Yes,We can.
Q3. Why choose you?
A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q4. How can you slove the problem if we receive the defective goods？
A4: Send us the pictures or video first time, we will send free replacement spare parts for you.
Q5：Are you a trading company or a manufacturer?
A5：We are a manufacturer with over 10 years of experience. Welcome to visit our factory.
