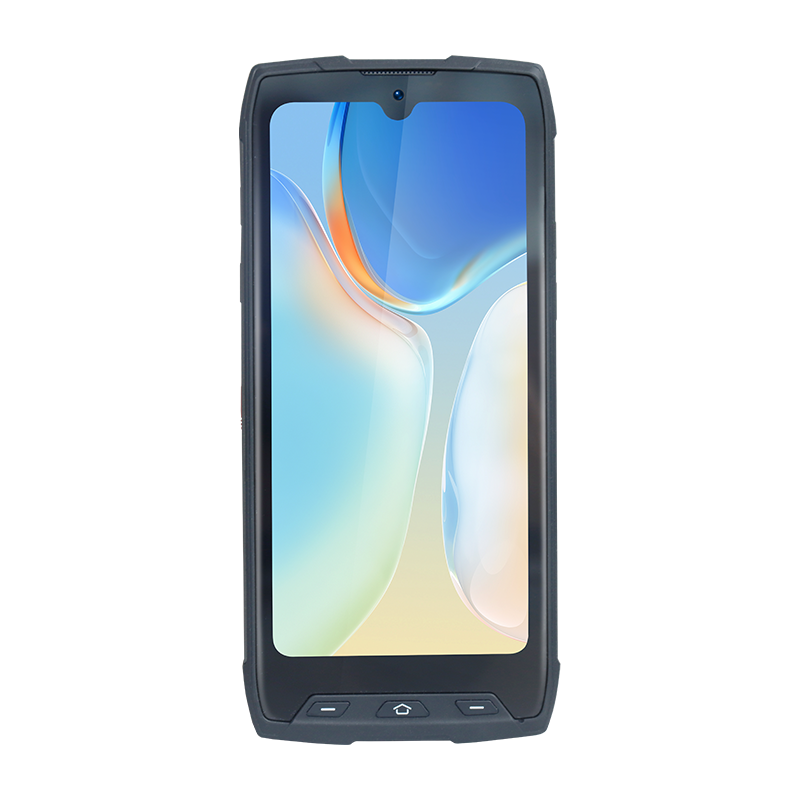

Waterproof Explosion Proof Rugged Phone
V3-XUXIN Rugged Explosion-Proof Phone features intrinsically safe explosion-proof technology and has obtained IIC-level certification, making it suitable for Class IIA, IIB, and IIC gas environments as well as combustible dust environments in chemical Zones 1 and 2. The device is constructed with a high-strength alloy body and explosion-proof glass, while the IP68 rating ensures reliable waterproof, dustproof, and shockproof performance, providing durable protection in harsh industrial conditions.
Product Description
Introduction of Waterproof Explosion Proof Rugged Phone
V3-XUXIN Rugged Explosion-proof Phone adopts intrinsic safety explosion-proof technology and has passed the IIC level certification, suitable for Class IIA, IIB, IIC gas environments and combustible dust environments in chemical zones 1 and 2. The appearance uses high-strength alloy and explosion-proof glass, with an IP68 protection level, and is waterproof, dustproof, and shockproof.
Feature of Waterproof Explosion Proof Rugged Phone
1)Explosion-Proof Certification: Certified for IIC-level chemical industry explosion-proof standards, with marks including Ex ib I Mb, Ex ib IIC T4 Gb, and Ex ib IIIC T130℃ Db, ensuring safe use in hazardous environments.
2) 5G Connectivity: Supports 5G networks for faster data transmission, lower latency, and precise positioning, meeting the demands of high-speed, real-time communication in industrial settings.
3) Camera System: Features a 16MP front camera and a rear camera setup with 48MP main lens + 8MP wide-angle lens, providing versatile imaging capabilities.
4) Durable Protection: Rated IP68 for water and dust resistance, enhancing reliability and durability in harsh and challenging environments.
Detail photos of Waterproof Explosion Proof Rugged Phone
Product parameters of Waterproof Explosion Proof Rugged Phone
| Explosion proof type | Intrinsically Safe |
| Explosion proof sign |
Ex ib I Mb Ex ib IIC T4 Gb Ex ib IIIC T130℃ Db |
| Network standard |
5G:N1/N3/N28/N41/N77/N78/N79 FDD:B1/B2/B3/B5/B7/B8 TDD:B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 TDSCDMA:B34/39 CDMA:BC0 GSM:B2/3/5/8 GPRS:support |
| Number of CPU cores | MT6833, 8-core, 2.2GHz |
| operating system | Android 12 |
| storage capacity | Running memory 8GB+body storage 128GB |
| Battery capacity | 6000 mAh |
| Screen size | 6.08 inches, resolution 720 * 1560 |
| Screen brightness | four hundred and fifty |
| Full screen fit | yes |
| Screen Touch Points | More points |
| front camera | 16 million pixels |
| Rear camera | 48 million pixels+8 million pixels wide-angle |
| Flash lamp | support |
| SIM card | Dual Nano Card |
| Antenna | Built in FPC antenna, NFC antenna |
| Mike | Double Mike |
| Horn | 8 Ω, 2W, 1528 waterproof intercom speaker |
| Receiver | 1206 waterproof earpiece |
| Headset | Type-C earphones |
| GPS | support |
| WIFI | support |
| OTG | support |
| USB | Type-C |
| Bluetooth | support |
| Side button | 6, SOS key, PTT key, volume+/- key, custom key, power on/off key |
| Front button | 3, menu button, HOME button, return button |
| Noise reduction | Dual microphone noise reduction |
| Sensor | Support gyroscope, gravity sensing, light sensing, distance sensing, fingerprint, compass |
| Size | 175.23mm*80.96mm*15mm |
| Weight | About 301g |
| Protection level | IP68 |
| Work Environment | |
| Temperature | -20℃～+50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Applicable places | Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments. |
FAQ
Q1. What is a Rugged Explosion-proof Phone？
A1: Rugged Explosion-proof Phone is intelligent devices with explosion-proof capabilities, suitable for hazardous environments containing flammable or explosive gases. This type of mobile phone controls the energy level of the device itself to ensure that the electric sparks and thermal effects generated under normal working or fault conditions do not reach the critical conditions for igniting explosive gases, thereby preventing the occurrence of explosion accidents.
Q2. What environments are Rugged Explosion-proof Phone suitable for？
A2: Rugged Explosion-proof Phone is suitable for hazardous areas such as petroleum, chemical, natural gas, energy, and pharmaceutical production where flammable and explosive gases exist. These environments have strict requirements for the explosion-proof performance of devices, and inherently safe 5G phones can provide necessary protection to ensure the safety of operators.
