KTW346(5G) Explosion Proof Mobile Phone
XUXIN KTW346 (5G) Explosion-Proof Mobile Phone holds triple explosion-proof certifications for coal mines, chemical environments, and dust hazards. It is suitable for use in coal mines containing explosive mixtures like methane and coal dust, as well as in Zone 1 and Zone 2, Class IIA, IIB, and IIC gas environments, and other combustible dust settings, ensuring safe and reliable communication in high-risk industrial areas.
Product Description
Introduction of KTW346(5G) Explosion Proof Mobile Phone
XUXIN KTW346 (5G) explosion-proof mobile phone supports 5G network and is equipped with a 64 megapixel main camera, an 8-megapixel wide-angle lens, and a 5-megapixel macro lens. It is suitable for explosive hazardous environments such as coal mines, chemical, pharmaceutical, natural gas pipeline inspections, oil tank areas, gas stations, and dock oil tankers.
Feature of KTW346(5G) Explosion Proof Mobile Phone
1)Display: 6.67-inch screen with 2400 × 1080 resolution, offering clear and vibrant visuals.
2)Memory & Storage: Equipped with 8GB RAM and 256GB internal storage to handle multitasking and large files efficiently.
3)Camera System: Rear triple camera setup (64MP main + 8MP wide-angle + 5MP macro) and a 16MP front camera, supporting versatile photography needs.
4)5G Connectivity: Supports 5G networks for fast, stable data transfer and voice communication.
5)Navigation & NFC: Includes NFC and multi-system positioning with GPS, Beidou, and GLONASS for accurate navigation and connectivity.

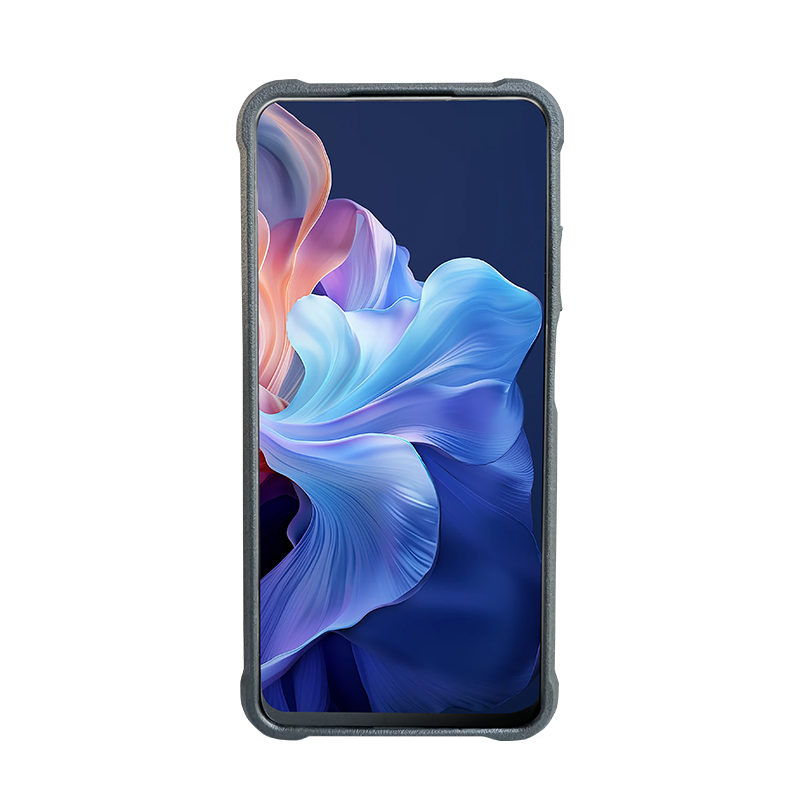

Detail photos of KTW346(5G) Explosion Proof Mobile Phone
Product parameters of KTW346(5G) Explosion Proof Mobile Phone
| Explosion proof mark |
Ex ib IIC T4 Gb Ex ib IIIC T130℃ Db Ex ib I Mb/KA |
| Network standard | Support Unicom/Telecom 5G/4G+/4G/3G/2G |
| Support mobile | 5G/4G+/4G/2G |
| Network frequency |
5G NR NSA/SA: n1/n5/n8/n28/n41/n78 4G LTE FDD:B1/B3/B5/B7/B8 4G TD-LTE :B34/B38/B39/B40/B41 3G WCDMA:B1/B2/B5/B8 2G GSM:B2/B3/B5/B8 |
| CPU model | MediaTek Dimensity 810 6nm 2.4GHz 8-core processor |
| Number of CPU cores | Eight nuclei |
| Operating system | Android R（MyOS11.5） |
| Screen size | 6.67 inches |
| Screen color | 1.07 billion colors |
| Resolving power | 2400×1080 |
| Screen type | AMOLED |
| Front camera | 16 megapixel camera |
| Rear camera | 64 million pixel camera+8 million pixel wide-angle lens+5 million pixel macro lens |
| Size | 163.9 mm×76.2 mm×8.3mm |
| Weight | About 192g |
| SIM card | Nano SIM |
| Bluetooth | BT 5.1 |
| GPS navigation | support |
| Headphone jack | Supports Type-C analog and digital earphones |
| Data cable interface | USB Type-C |
| NFC | support |
| Anti shake mode | Electronic anti shake |
| Location | GPS+Beidou+GLONASS |
| WiFi | Dual band WiFi, WiFi5 (IEEE 802.11 a/b/g/n/ac) |
| Side keys (physical keys) | Power button |
| Volume key | |
| Accelerometer | support |
| Fingerprint sensor | support |
| Gyroscope | support |
| Compass | support |
| Running memory | GB |
| Body storage | 256GB |
| Battery capacity | Chemical 5100mAh/coal 2600mAh |
| Work environment | |
| Temperature | -20℃～+50℃ |
| Relative humidity | ≤98％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Applicable places | Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments. |
| Protection level | IP54 |
FAQ
Q1：Can I customize Explosion-proof Mobile Phone?
A1：Sure, our factory produces OEM/ODM.
Q2： Can you put my brand name(LOGO)on the products?
A2: Yes,We can.
Q3. Why choose you?
A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service.
Q4. How can you slove the problem if we receive the defective goods？
A4: Send us the pictures or video first time, we will send free replacement spare parts for you.
Q5：Are you a trading company or a manufacturer?
A5：We are a manufacturer with over 10 years of experience. Welcome to visit our factory.
