Rugged Phone For Construction
This outdoor rugged smartphone is built with durable ABS+PC materials and powered by an MT6789 octa-core processor. It comes with 8GB RAM and 128GB of storage, with an optional 256GB upgrade. Featuring a 6.56-inch TFT display, the screen remains responsive even when operated with wet hands or gloves.The device includes a 48MP main camera along with three auxiliary lenses for versatile photography. Its 5800mAh battery supports 33W fast charging, delivering up to 17.5 hours of continuous use. Certified with IP68 and MIL-STD-810H standards, it withstands drops from heights up to 1.5 meters and functions reliably in temperatures ranging from -20°C to 60°C. Additionally, it supports NFC and is equipped with multiple sensors for enhanced functionality.
Product Description
Introduction of Rugged Phone For Construction
This outdoor rugged phone is made of ABS+PC material, equipped with an MT6789 octa-core processor, 8+128GB storage (256GB is optional), and a 6.56-inch TFT screen that supports operation with wet hands or gloves. Equipped with a 48MP main camera and three other cameras, it features a 5800mAh battery and 33W fast charging, providing approximately 17.5 hours of battery life. It has passed certifications such as IP68 and MIL-STD-810H, is resistant to drops from 1.5 meters, can operate within the temperature range of -20 to 60℃, and supports functions such as NFC and multiple sensors.
Feature of Rugged Phone For Construction
1) With IP68 certification and 1.5-meter drop resistance, this device operates reliably in temperatures from -20°C to 60°C, making it ideal for challenging environments.
2) Powered by a 5800mAh high-capacity battery and 33W fast charging, it delivers around 17.5 hours of usage and reaches a full charge in just 1 hour and 50 minutes.
3) Featuring an MT6789 octa-core processor with 8GB RAM and 128GB storage, and running on Android 14, it ensures smooth and efficient performance.
4) Equipped with a 48MP main camera, an 8MP ultra-wide lens, and a 2MP macro camera, it easily adapts to various photography scenarios.
5) The screen supports operation with wet hands or gloves, and the dual customizable buttons enhance practicality and user convenience.

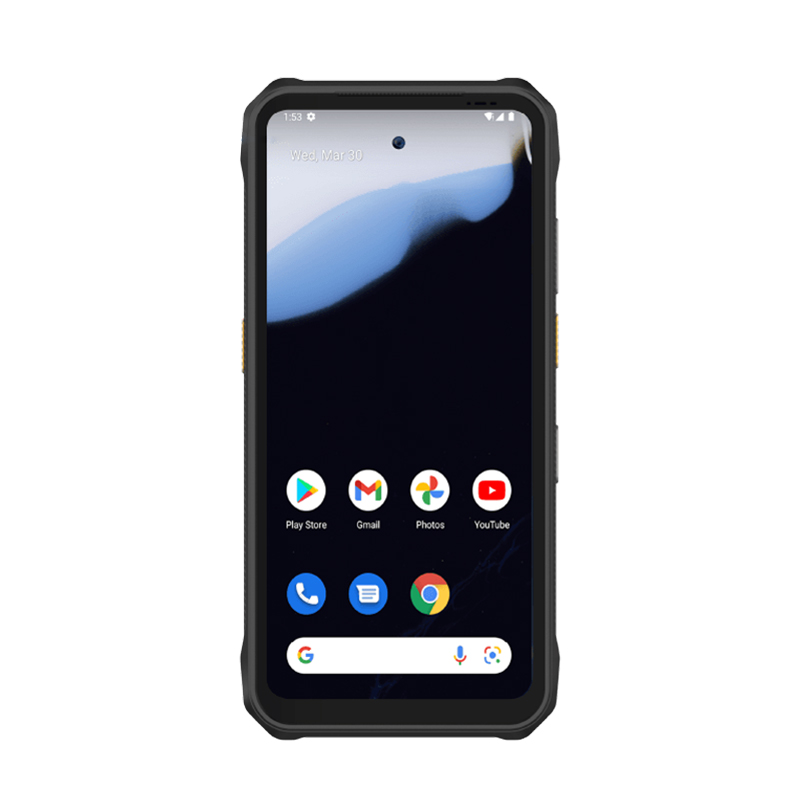

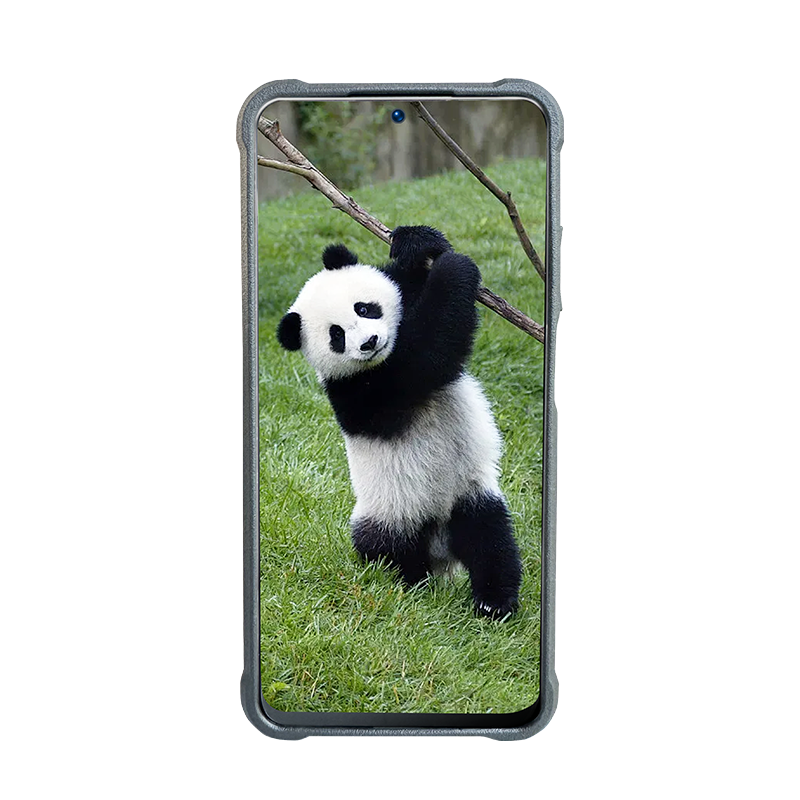

Detail photos of Rugged Phone For Construction
Product parameters of Rugged Phone For Construction
| Tech Spec | |
| Product Form | Rugged Phone |
| Material | ABS+PC |
| Dimension | 170.2*80.7*14mm |
| Weight | Approximately 311g |
| Product Color | Black+Orange |
| CPU |
MT6789 Octa-core, two cores of 2.2GHz + six cores of 2.0GHz 2*A76 2.2GHz 6*A55 2.0GHz |
| GPU | ARM G57 MC2 |
| Memory |
RAM 8GB LPDDR4X ROM 128GB UFS2.2 (Optional 8+256GB for bulk orders.) |
| Operating System | Android 14/ GMS |
| Display |
Type: TFT Size: 6.56-inch 20:9 Resolution: 720*1612 Brightness: 670 Nit Support wet hands and gloves operation. |
| Touch Pannel | PolyRainbow Cover, 5-point capacitive screen, Hardness above 7H, Scratch-resistant. |
| Camera |
Front 32MP, Fixed Focus Rear Main Camera 48MP, Autofocus, Supports PDAF Rear Secondary Camera1 2MP Macro Rear Secondary Camera2 8MP Wide-angle |
| Flashlight | True Flash |
| Buttons |
Power & Fingerprint *1 Volume + Key *1 Volume - Key *1 Custom button *2 （The default custom button on the left is: press and hold for 3s to turn on the top flashlight, click to turn off the flashlight） |
| Indicator Light | Indicator light *1, R/G dual-color light: Red constant when charging, green constant when fully charged (above 90%), red flashing when low battery (0-15%), off when discharging. |
| Audio |
Speaker*1 7Ω/1.5W Earphone*1 Dual-MIC Motor*1 Audio SMART PA |
| Sensor |
Light Sensor Proximity Sensor 3D Accelerometer Geomagnetic Sensor Gyroscope Gravity Sensor |
| Battery |
Built-in Polymer Lithium-ion Battery 3.85V/5800mAh Charging Power: 33W/PD 3.0 PPS Protocol Battery Life：Approximately 17h24min（The default volume is 70dB, Default 300 nits brightness; Playing 1080P HD video) Charging time：Approximately 1h50min |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G Dual-band WIFI, Supports AP seamless roaming |
| Bluetooth | BT5.1 (BLE) class1 Transmission Distance: 30m |
| 4G | GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDD(B34/38/39/40/41)+FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20//25/26/28A/28B/30/66) |
| GPS |
Supports GPS/Beidou/Galileo/GLONASS Supports AGPS Cold Start Time: <60 seconds |
| I/O Interfaces | Type C *1 (Charging/Data/Earphone/Reverse charging 6W) |
|
TF Card*1 SIM Card *2 2 of 3 card slot (Nano Sim+TF or Nano Sim+Nano Sim) |
|
| Pogo Pin (Charging) *1 | |
| Power Adapter | 33W Fast Charge Adapter |
| Type-C Cable | Type-C Data Cable（1m） |
| Rugged Features | Drop Height: Withstands drops from 1.5 meters onto composite wood flooring, while powered on. |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Electrostatic Discharge: Contact Discharge ±8KV, Air Discharge ±12KV | |
| OVP: Threshold 12V | |
| EOS: VBUS 300/80us VBAT 300v/20us | |
| Certifications | IP68 |
| CE | |
| CCC | |
| FCC | |
| ATEX Zone 2/22 | |
| MIL-STD-810H | |
| Data Collection |
Fingerprint Power On/Off & Fingerprint 2-in-1，Support fingerprint unlocking |
|
Flashlight 1W（The default custom button on the left is: press and hold for 3s to turn on the top flashlight, click to turn off the flashlight） |
|
|
NFC Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance，Card reading distance from 0 to 4 cm,Frequency: 13.56MHz |
|
| Accessories | Hand Strap (Standard) |
| 33W Fast Charge Adapter (Standard) | |
| 1m Type-C Cable (Standard) | |
| Tempered Glass Film (Optional) | |
| Docking Charger 5V2A (Optional) | |
| Bicycle mobile phone holder (half pack and full pack) (optional) | |
FAQ about Rugged Phone For Construction
A1: What is the water resistance level of the mobile phone?
Q1: Supports IP68-level water and dust resistance, suitable for dusty and humid environments.
A2: How long does it take to fully charge?
Q2: Approximately 1 hour and 50 minutes, supporting 33W PD 3.0 PPS fast charging protocol.
A3: Can the storage be expanded?
Q3: Supports TF card expansion and dual SIM card options (Nano SIM+TF or dual Nano SIM).
A4: What is the working temperature range?
Q4: It can operate stably in both low-temperature and high-temperature environments ranging from -20℃ to 60℃.
A5: Does the screen support operation while wearing gloves?
Q5: Supported. The screen supports glove operation and is also suitable for wet hand operation.
