Excam4800 Explosion Proof Digital Camera
The Excam4800 explosion-proof digital camera features an intrinsically safe design and has been certified by authoritative explosion-proof standards, making it suitable for use in various hazardous environments. Equipped with a 48-megapixel sensor and 16x zoom, it supports 4K video recording and adopts a dual-screen design. Compact and lightweight at about 146.5g, the device offers IP68-rated protection and operates reliably within a temperature range of -20℃ to +50℃. It also supports a 128GB TF card and provides simple, user-friendly operation.
Product Description
Introduction of Excam4800 Explosion Proof Digital Camera
Excam4800 explosion-proof digital camera, with intrinsically safe design, has obtained authoritative explosion-proof certification and is suitable for various types of risk environments. 48 million pixels + 16x zoom, supports 4K video, dual-screen design. The body is compact and portable, weighing approximately 146.5g and featuring IP68 protection. It operates stably within the temperature range of -20℃ to +50℃, supports 128GB TF card, and is easy to operate.
Feature of Excam4800 Explosion Proof Digital Camera
1) Certified explosion-proof safety: Designed with intrinsic safety in mind, the device meets national explosion-proof standards and holds official certification, ensuring reliable use in environments with potential explosion risks.
2) High-definition, versatile imaging: Features a 48-megapixel sensor with 16x zoom and a maximum resolution of 8000×6000, supporting 4K and lower video recording. Equipped with a fill light for capturing clear, detailed images in any setting.
3) Compact and robust build: Measuring 104.6×65.1×30.2mm and weighing about 146.5g (excluding battery and memory card), the camera is IP68-rated for dust and water resistance, combining portability with durability.
4) Excellent environmental adaptability: Suitable for both gas and dust hazardous zones, it operates reliably within temperatures from -20℃ to +50℃, ensuring stable performance in tough conditions.
5) User-friendly configuration: Features a dual-screen design, supports 128GB TF card expansion, includes a 700mAh battery, multiple language options, and adjustable settings for convenient operation.

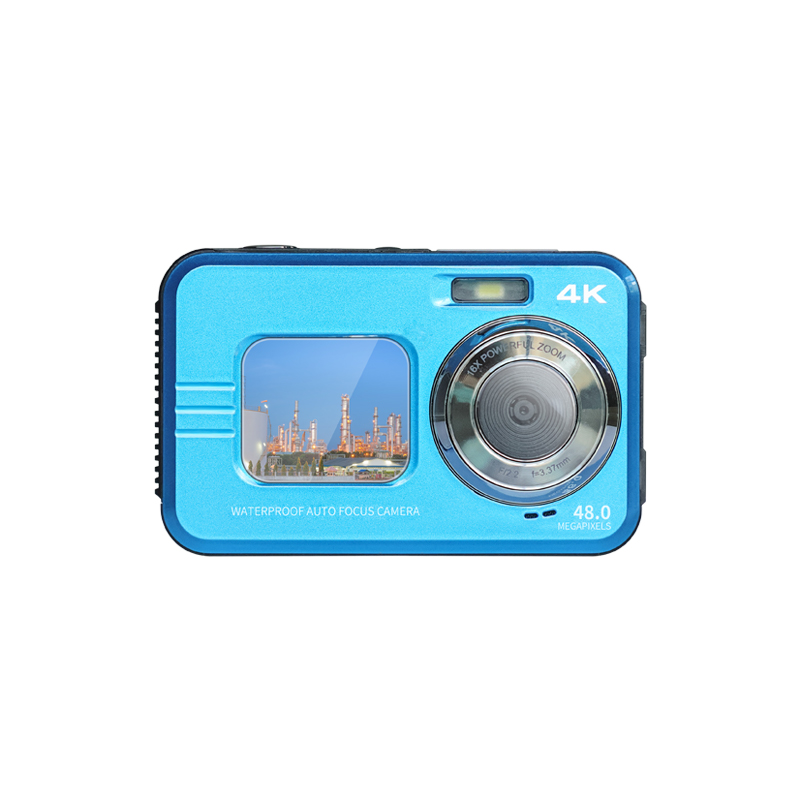

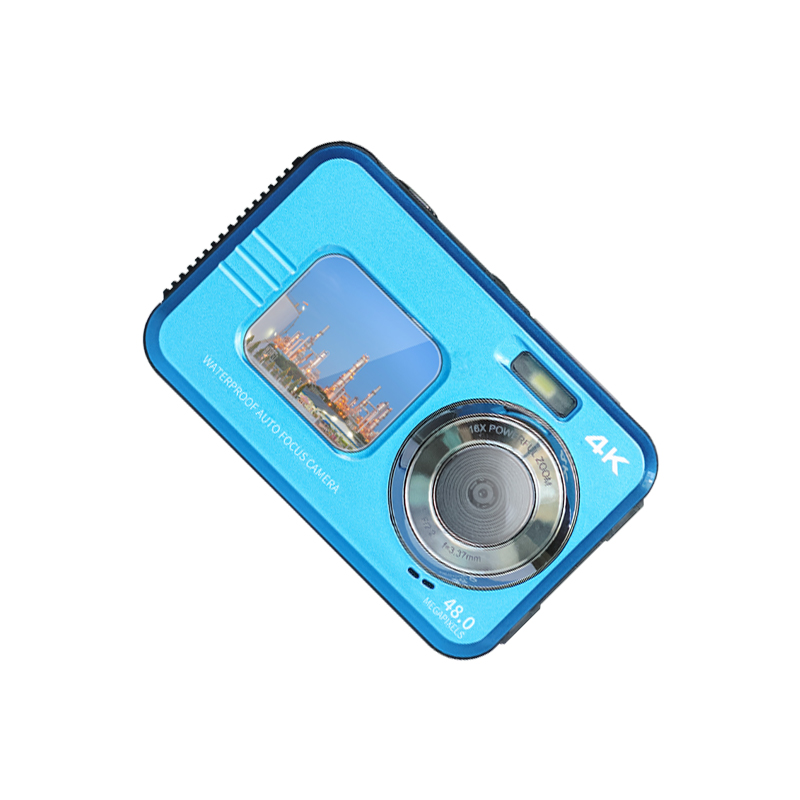

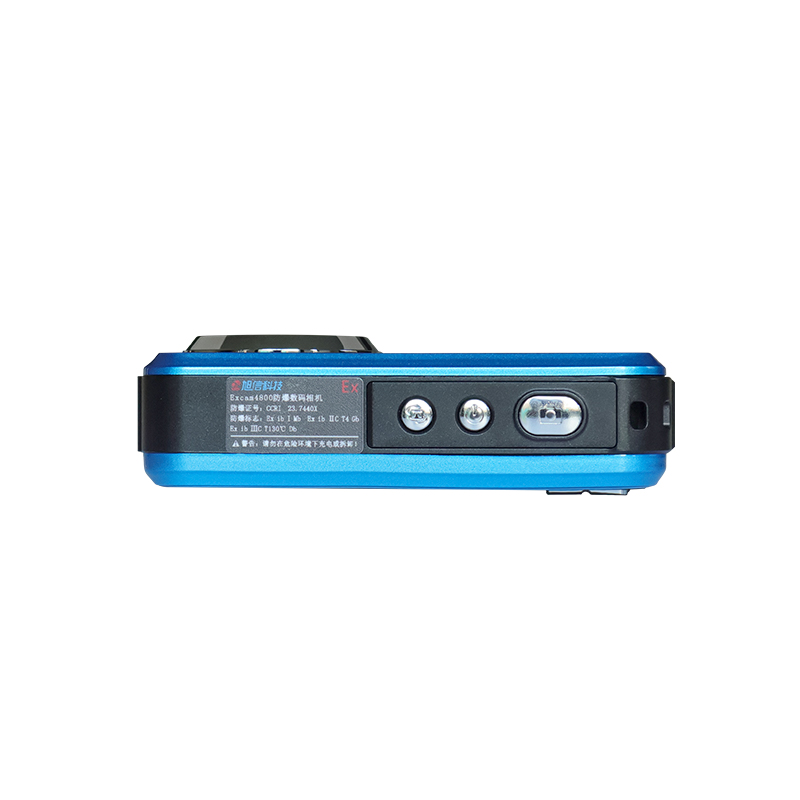

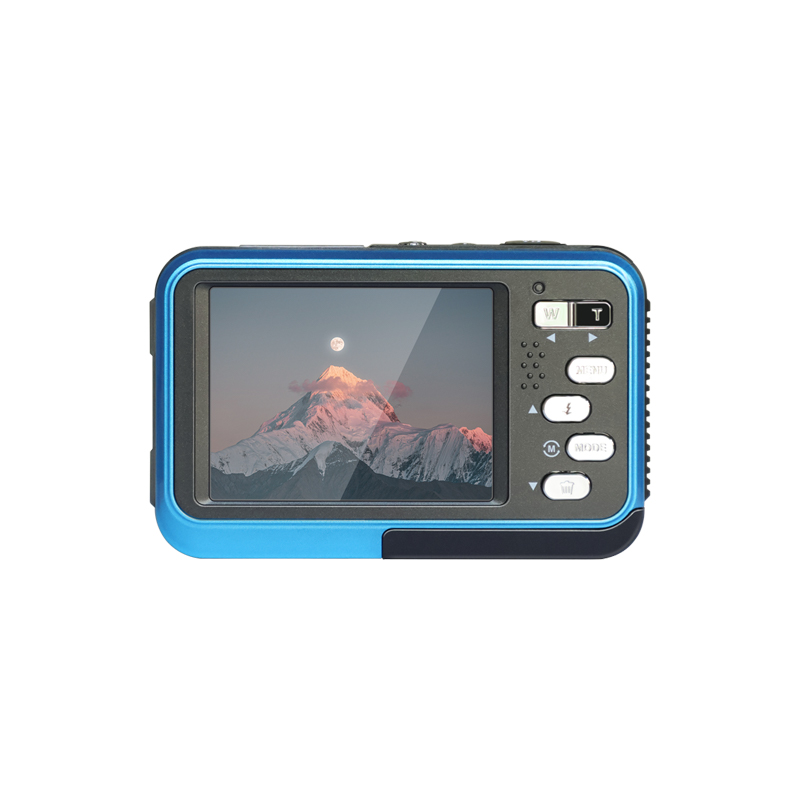

Detail photos of Excam4800 Explosion Proof Digital Camera
Product parameters of Excam4800 Explosion Proof Digital Camera
| Explosion-proof type | Intrinsically safe type |
| Explosion-proof mark |
Ex ib I Mb Ex ib IIC T4 Gb Ex ib IIIC T130℃ Db |
| White balance | Automatic/Daylight/daylight/tungsten filament lamp/fluorescent, etc |
| Exposure compensation | -3.0～+3.0 |
| Aperture | F/2.2 |
| Focal length | F=3.37mm |
| Front display screen | 1.7 inches, 240×280IPS high definition |
| Rear display screen | 2.8 inches, 640×480IPS high definition |
| Photo format | JPG |
| Photo resolution | 8000×6000、7600×5800、6912×5184、5600×4200、5200×3900、4608×3456、4000×3000、3648×2736、3072×2304、2592×1944、2048×1536、1600×1200 |
| Video format | AVI |
| Video resolution | 4K(3840×2160)、2.7K(2688×1520)、FHD(1920×1080)、HD(1280×720)、VGA(640×480) |
| Size | 104.6mm×65.1mm×30.2mm |
| Weight | Approximately 146.5g (excluding battery and memory card) |
| Storage medium | Supports TF memory card (up to 128GB of memory) |
| Zoom ratio | 16 times |
| LED fill light | Support |
| USB interface | Micro USB |
| Language | Support multiple languages |
| Automatic | 1 minute /3 minutes /5 minutes/None |
| Battery | 700mAh |
| Temperature | -20℃～+50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Applicable places | It can be used in Zone 1 and Zone 2, and in gas environments of Class IIA, IIB and IIC. At the same time, it can also be used in combustible dust environments. |
| Protection grade | IP68（1.2m，30min） |
FAQ related to Excam4800 Explosion Proof Digital Camera
Q1: Has the explosion-proof performance of the Excam4800 explosion-proof digital camera been certified by authoritative authorities?
A1: Yes, this camera complies with the provisions of the standards GB/T 3836.1-2021 and GB/T 3836.4-2021. It has been reviewed and approved by the designated national inspection unit and obtained the EX explosion-proof qualification certificate.
Q2: What is the protection level of this camera? Can it be used underwater?
A2: The protection grade is IP68 (1.2 meters, 30 minutes), which means it can operate normally within 30 minutes of immersion in 1.2 meters of water. Short-term underwater use is acceptable, but attention should be paid to the time and depth limitations.
Q3: What capacity of memory card does the camera support?
A3: Supports TF memory cards, with a maximum capacity of 128GB of memory, which can meet the storage requirements of a large number of photos and videos.
Q4: Can the camera work properly in a low-temperature environment?
A4: The operating temperature range of the camera is -20 ℃ to +50℃. It can operate normally in low-temperature environments of -20 ℃ and above, but it should be noted that temperatures below this range may affect its performance.
Q5: What is the zoom ratio of this camera and what is the maximum resolution it can achieve for taking photos?
A5: It supports 16x zoom, with a maximum resolution of 8000×6000 for taking photos, allowing for clear capture of distant scenes and details.
