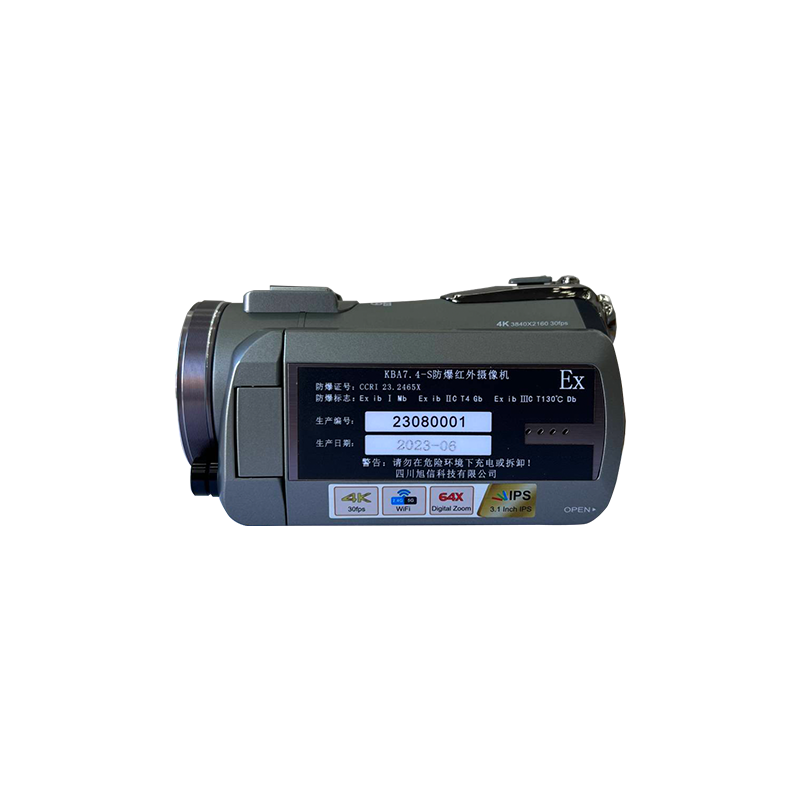

KBA7.4-S Intrinsically Safe Digital Camera
The KBA7.4-S explosion-proof infrared digital camera is certified by multiple explosion-proof standards, making it ideal for use in various hazardous environments. Equipped with a 13-megapixel CMOS sensor, it supports 4K video recording and offers a range of practical features. Compact and lightweight at approximately 305g, the device is easy to operate, provides IP54-rated protection, and functions reliably within a temperature range of -20℃ to +50℃.
Product Description
Introduction of KBA7.4-S Intrinsically Safe Digital Camera
KBA7.4-S explosion-proof infrared digital camera is an intrinsically safe type of camera equipment, which has passed the examination and inspection of the designated inspection unit and obtained the explosion-proof certificate. With chemical ⅡC class and dust explosion-proof certification, explosion-proof mark is Ex ib I Mb, Ex ib IIC T4 Gb, Ex ib IIIC T130℃ Db. It is suitable for chemical plants, oil tank farms, steel plants, refueling stations, pharmaceutical plants and other IIA, IIB, IIC gas environment and combustible dust environment in zone 1 and 2.
Features of KBA7.4-S Intrinsically Safe Digital Camera
Outstanding explosion-proof capability: Certified by multiple explosion-proof standards, the KBA7.4-S can be safely operated in a wide range of hazardous environments, including Zones 1 and 2 with IIA, IIB, and IIC gas atmospheres, as well as combustible dust areas. It ensures reliable performance for photography and monitoring in high-risk settings.
Superior imaging performance: Featuring a 13-megapixel CMOS image sensor (up to 28 megapixels through interpolation), it captures high-resolution photos and videos with exceptional clarity. Supporting 4K video recording at 3840×2160 resolution, it delivers sharp and detailed images whether capturing static scenes or dynamic motion.
Comprehensive and practical features: Equipped with infrared night vision, the camera enables clear shooting even in low-light or complete darkness. Its face detection feature automatically identifies faces within the frame, enhancing monitoring accuracy. Additional functions such as anti-shake, automatic white balance, and exposure compensation ensure optimal performance across various shooting environments and conditions.
Compact and user-friendly design: With dimensions of 128mm×68mm×70mm and a weight of approximately 305g (without battery), it is lightweight and easy to carry, ideal for mobile shooting and field monitoring. The 3.1-inch IPS touchscreen provides a simple, intuitive interface, allowing users to easily navigate menus and adjust shooting settings.

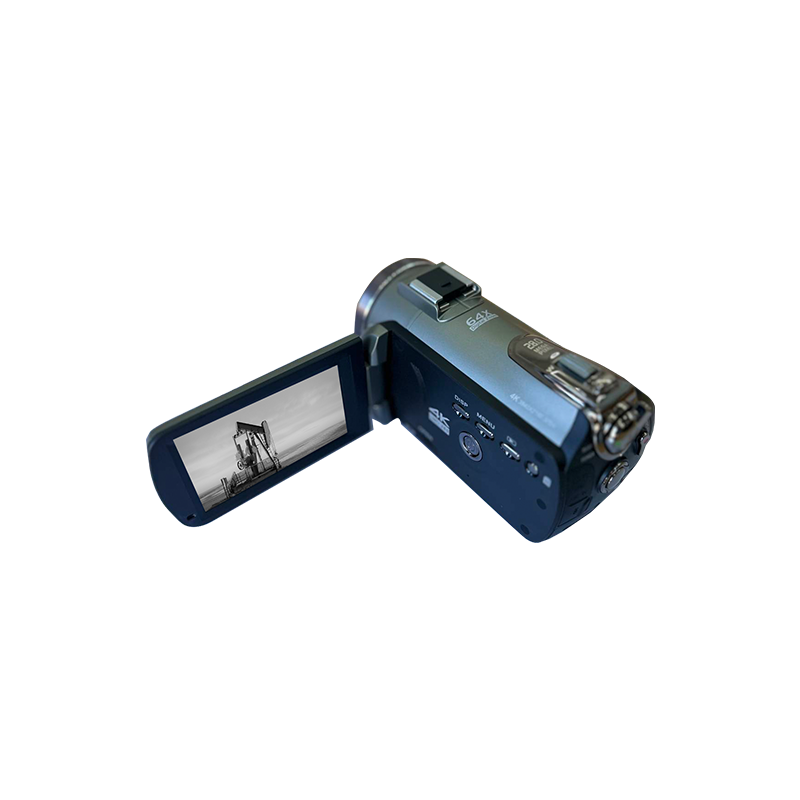

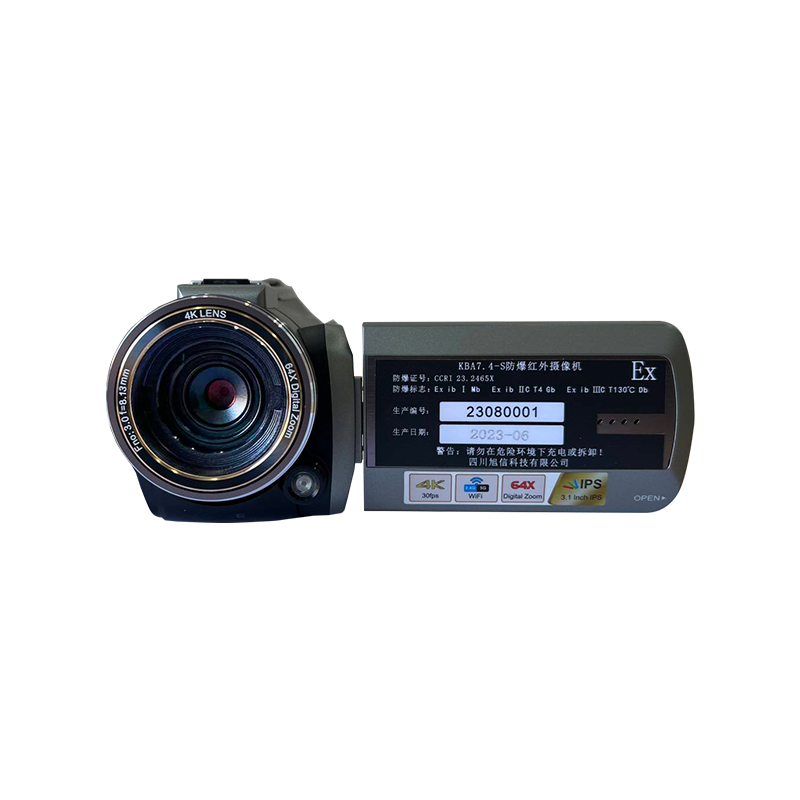

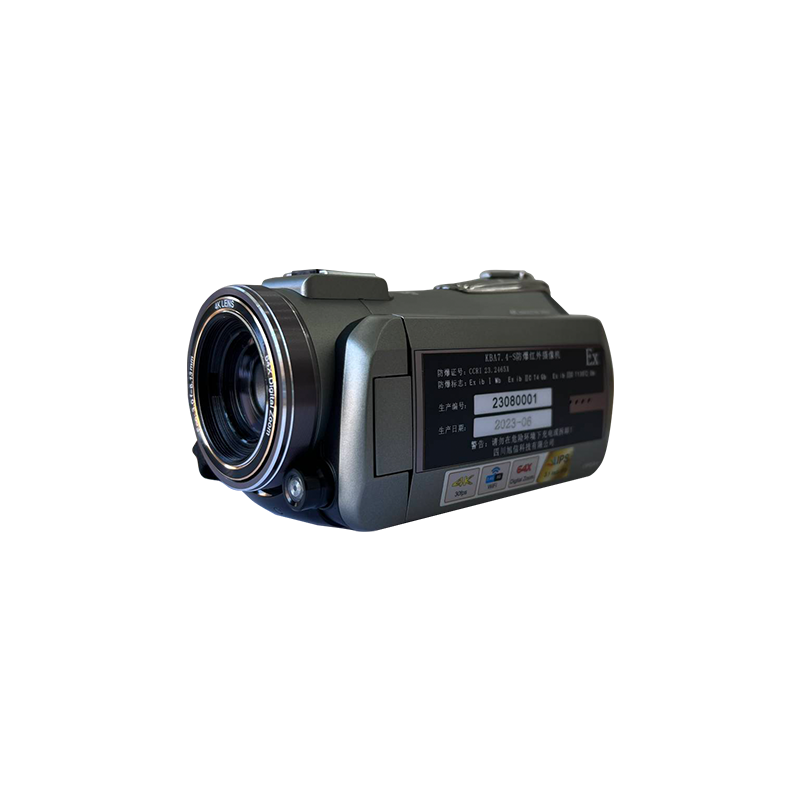

Detail photos of KBA7.4-S Intrinsically Safe Digital Camera
Product parameters of KBA7.4-S Intrinsically Safe Digital Camera
| Explosion-proof mark |
Ex ib I Mb Ex ib IIC T4 Gb Ex ib IIIC T130℃ Db |
| Image sensor | 13 megapixel CMOS sensor, up to 28 megapixel (interpolation) |
| Aperture | F: 3.0 |
| Focus Distance | F = 8.13 mm |
| Focusing range | 2.5 meters to infinity |
| Lens class | Digital zoom lens |
| zoom | 64X |
| Storage medium | SD/SDHC cards (U3) are supported, with a maximum of 256GB |
| Display screen | 3.1-inch IPS Touch screen (16:9) |
| video |
Standard: 4K(3840*2160 30fps) 2K(2560*1440 30fps) 1080P(1920*1080 30fps) 720P(1280*720 30fps) 480P(640*480 30fps) Movement: 1080P(1920*1080 60fps) 720P(1280*720 120fps) 480P(640*480 240fps) |
| photograph |
6080*4560(28M)、5600*4200(24M) 5200*3900(20M)、4608*3456(16M) 4192*3144(13M)、3648*2736(10M) 3648*2048(7MHD)、2592*1944(5M) 2048*1536(3M)、1920*1080(2MHD) 640*480(VGA) |
| dimension | 128mm×68mm×70mm |
| weight | Approx. 305g (without battery) |
| ISO | Auto /100/200/400/800/1600 |
| Face detection function | support |
| White balance | Automatic/daytime/cloudy/tungsten lamp/fluorescent lamp |
| Anti-shake function | Support (Digital Anti-shake) |
| Exposure compensation | Ev-3.0 ~ EV+3.0 |
| Selfie timing | 2 seconds /5 seconds /10 seconds |
| WiFi point-to-point connection |
Support (2.4G/5G) Stream format :H.264 |
| Night vision function | Support (IR CUT black and white night vision) |
| Hot shoe joint | Support external stereo microphone/fill light |
| USB interface | USB2.0: MIC IN/DC IN |
| Computer interface | High-speed USB2.0 |
| Lens aperture | M=37mm |
| loudspeaker | built-in |
| microphone | built-in |
| battery | Intrinsic safety battery 1700mAh |
| Working environment | |
| temperature | -20℃～+50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Applicable place | It can be used in zone 1 and 2, IIA, IIB, IIC gas environment, and can be used in combustible dust environment. |
| Class of protection | IP54 |
FAQ about KBA7.4-S Intrinsically Safe Digital Camera
Q1: What specific environment is KBA7.4-S explosion-proof infrared digital camera suitable for?
A1: The camera is suitable for IIA, IIB, IIC gas environment in Zone 1 and 2, and can also be used in combustible dust environment, such as chemical plants, oil tank farms, steel plants, refueling stations, pharmaceutical plants, etc.
Q2: What is the meaning of its explosion-proof mark?
A2: explosion-proof mark Ex ib I Mb, Ex ib IIC T4 Gb, Ex ib IIIC T130℃ Db, respectively, indicating intrinsically safe, suitable for coal mine, Class II gas environment and Class III dust environment, corresponding to different temperature groups and equipment protection levels.
Q3:What are the image shooting pixels of KBA7.4-S?
A3:The 13-megapixel CMOS image sensor can be interpolated up to 28 million pixels to meet different shooting needs.
Q4: What video formats can I shoot?
A4: Support 4K (38402160 30fps), 2K(25601440 30fps), 1080P(19201080 30fps) in standard mode; In sports mode, it supports 1080P (19201080 60fps) and 720P (1280*720 120fps) formats.
