Excam6400 Explosion Proof Handheld Digital Camera
Excam6400 is an intrinsically safe explosion-proof handheld digital camera, suitable for flammable and explosive places such as petrochemicals and dust, and is used for equipment inspection, safety evidence collection, etc. Supports multi-resolution shooting, equipped with front and rear CMOS sensors, 3.6-inch IPS touch screen, and 1350mAh lithium battery, meeting the operation requirements in hazardous environments.
Product Description
Introduction of Excam6400 Explosion proof handheld Digital Camera
Excam6400 is an intrinsically safe explosion-proof handheld digital camera, suitable for flammable and explosive places such as petrochemicals and dust, and is used for equipment inspection, safety evidence collection, etc. Supports multi-resolution shooting, equipped with front and rear CMOS sensors, 3.6-inch IPS touch screen, and 1350mAh lithium battery, meeting the operation requirements in hazardous environments.
Feature of Excam6400 Explosion proof handheld Digital Camera
1) Reliable explosion-proof performance: Intrinsically safe design, explosion-proof marks such as Ex ib IIC T4 Gb, etc. It can be safely used in Zone 1/2 and IIA-IIB-IIC gas and combustible dust environments.
2) Clear image performance: It offers multiple image resolutions ranging from 64M to 8M and video resolutions from 5K to 720P, supporting interpolation technology, ensuring clear and distinguishable imaging.
3) Multi-functional modes: Covering various modes such as portrait, landscape, slow-motion, and time-lapse photography, it caters to the shooting needs of different working scenarios.
4) Ample expansion storage: Single TF card slot, supporting up to 256GB storage expansion, meeting the storage requirements of a large number of image files.
5) Convenient connection experience: Supports WIFI function, allowing remote control and file transfer via mobile phone, with flexible and efficient operation.

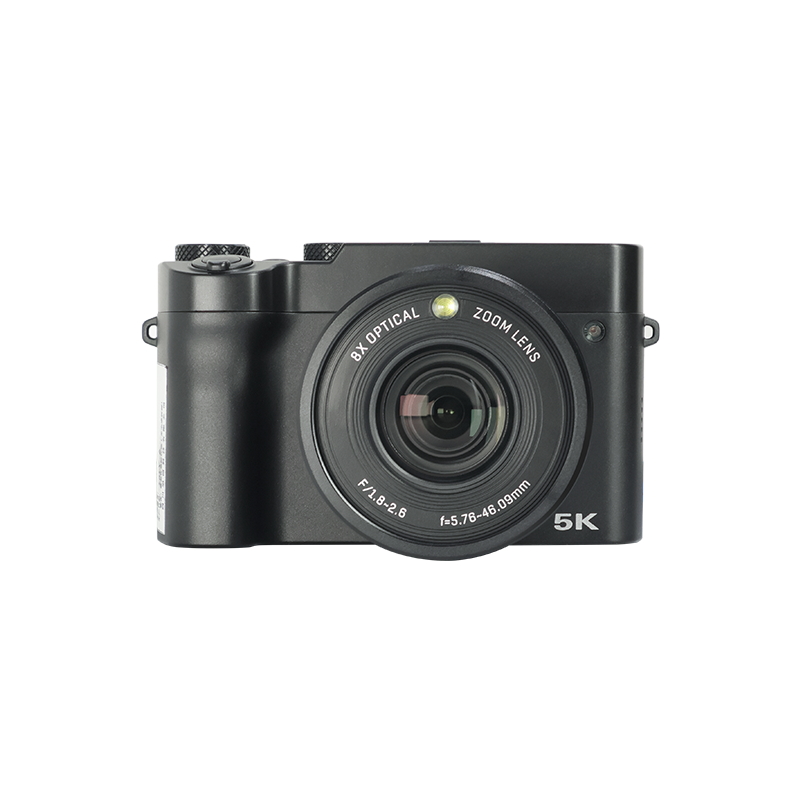

Detail photos of Excam6400 Explosion proof handheld Digital Camera
Product parameters of Explosion Proof Thermal Imaging Camera
| Product model | Excam6400 Explosion Proof Digital Camera |
| Explosion-proof type | Intrinsically safe type |

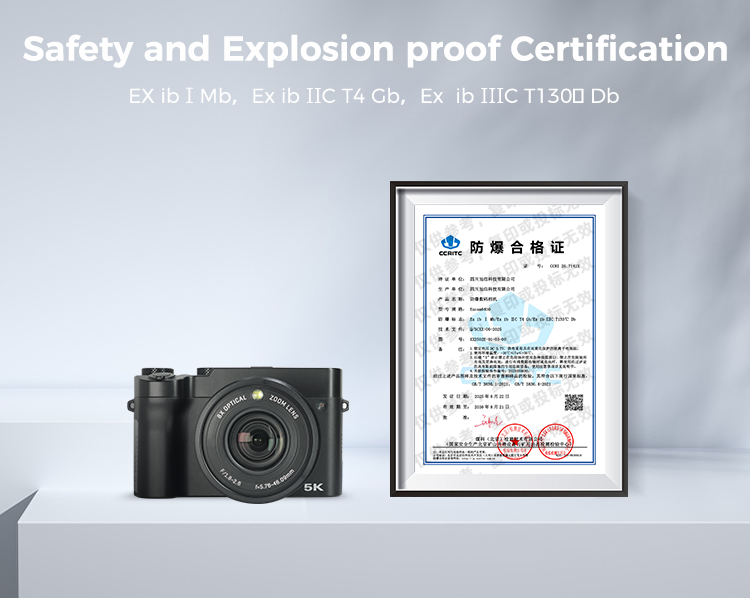

| Explosion-proof mark | Ex ib IIC T4 Gb; Ex ib IIIC T130℃ Db; Ex ib I Mb |
| Image resolution | 64M; 48M; 36M; 24M; 20M; 16M; 12M; 8M(64 million interpolation) |
| Video resolution | 5K 25fps 4K/30 fps: 2.7K/30 fps 1080P/60 fps 1080P/30 fps 720P/60 fps |

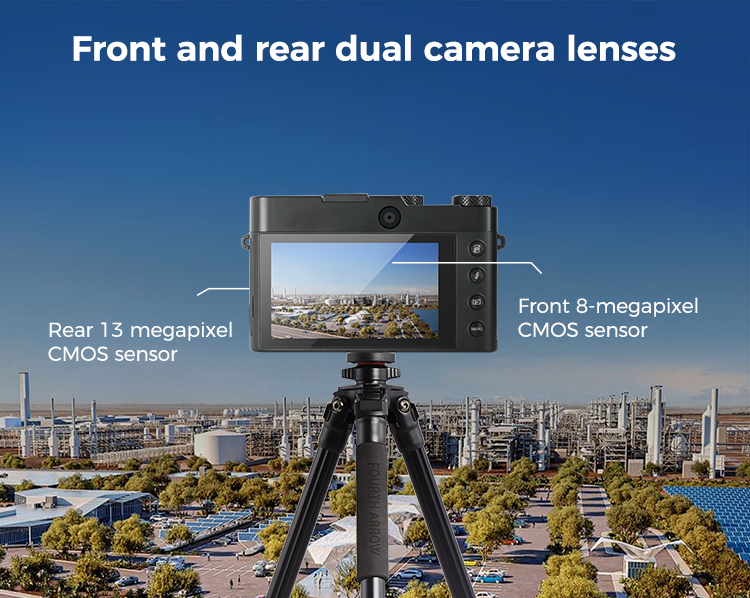

| Front image sensor pixels | 8MP CMOS sensor (up to 64MP interpolation) |
| Front image sensor size | 1/2.8 inch |
| Rear image sensor pixels | 13MP CMOS sensor (up to 64MP interpolation) |
| Size of the rear image sensor | 1/3.06 inch |
| Display screen type | IPS HD |
| Display screen size | 3.6 inch |
| Display screen resolution | 720 * 1280 |
| Capacitive touch screen | Support |
| Battery type | Lithium battery |
| Battery capacity | 1350mAh/ 3.8V rechargeable lithium battery |
| Auto focus function | Support |
| PC auxiliary functions | Webcam |
| LED flash lamp | Support |
| External expansion flash | Support |
| Auxiliary focusing light | Off/Automatic |
| File format | Photos (JPG), videos (MP4) |
| Maximum expansion capacity | External storage: Single card slot: TF card slot (up to 256GB) |
| Interface | USB(supporting external cameras), HDMI, MIC |
| Function mode | Normal photo taking, portrait mode, landscape mode, creative filters, normal video recording, slow-motion video recording, time-lapse video recording, night scene mode |
| Take photos at regular intervals | Off / 3-second timer / 5-second timer / 10-second timer |
| Continuous shooting | Three/Five/ten |
| Exposure compensation | Manual: ±2.0EV |

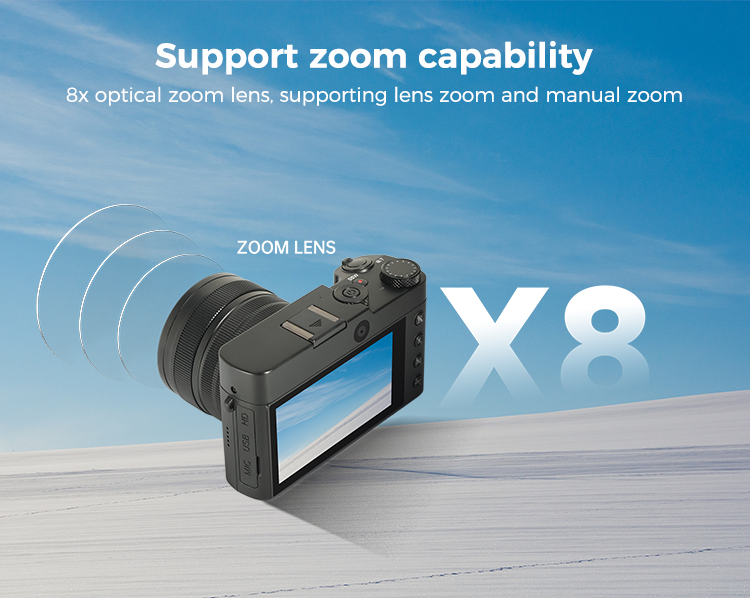

| Focus | 8X optical zoom |
| Focusing mode | Manual focus/single focus/auto focus |
| Sharpness | Strong/Standard/gentle |
| Automatic shutdown | Turn off /5 minutes /15 minutes /30 minutes |
| ISO | Automatic / 100/200/400/800/1600/3200/6400 |
| Shutter time | Automatic, 1/30, 1/60, 1/120, 1/240, 1/480 |
| Date setting | Adjustable date stamp |
| Image quality | Low/Medium/high |
| White balance | Automatic/Sunlight/cloudy/incandescent lamp/fluorescent lamp |
| Photometric measurement | Central metering/average metering/spot metering |
| Fill light | Off/Always on |
| WIFI | Supports (Supports remote control and transmission via mobile phone WIFI) |
| Shutter speed | 1/25Sec-1/480Sec |
| Applicable places | It can be used in Zone 1 and Zone 2, and in gas environments of Class IIA, IIB and IIC. At the same time, it can also be used in combustible dust environments. |
FAQ about Explosion Proof Thermal Imaging Camera
Q1: In which hazardous environments can Excam6400 be safely used?
A1: It can be used in Zone 1/2, IIA-IIB-IIC class gas environments and combustible dust environments, and is suitable for various flammable and explosive operation scenarios.
Q2: What is the storage format of the camera? What is the maximum supported storage expansion?
A2: Photos should be saved in JPG format and videos in MP4 format. The single TF card slot supports up to 256GB expansion, meeting the conventional image storage requirements.
Q3: What kind of battery is equipped with the camera? How about the battery life?
A3: Equipped with a 1350mAh/3.8V rechargeable lithium battery, the battery life is affected by the shooting frequency and the intensity of function usage, making it suitable for regular operation shooting.
Q4: What focusing modes does Excam6400 have? Does it support auxiliary focusing?
A4: Supports three focusing modes: manual, single shot, and automatic. The auxiliary focusing light can be switched between off and automatic states to meet the focusing needs of different scenarios.
Q5: What is the highest parameter for camera video shooting? What resolutions are available?
A5: It supports up to 5K 25fps and 4K 30fps video recording, and also offers multiple resolution options from 2.7K to 720P to meet different clarity requirements.
