Explosion-proof Android Tablet with 5G Speed
KJD3.7 (5G) Explosion-proof Android Tablet with 5G Speed, suitable for flammable and explosive environments such as oil, gas and coal mines, with Ex ib Ⅰ Mb certification. 8-inch high-definition touch screen, Qualcomm octa-core + 8GB+128GB configuration, supports multi-network positioning, meeting the needs of underground inspection and data collection.
Product Description
Introduction of Explosion-proof Android Tablet with 5G Speed
KJD3.7 (5G) Explosion-proof Android Tablet with 5G Speed, suitable for flammable and explosive environments such as oil, gas and coal mines, with Ex ib Ⅰ Mb certification. 8-inch high-definition touch screen, Qualcomm octa-core + 8GB+128GB configuration, supports multi-network positioning, meeting the needs of underground inspection and data collection.
Feature of Explosion-proof Android Tablet with 5G Speed
1) Intrinsically safe explosion-proof design, certified by authoritative authorities, eliminates the risk of explosion in flammable and explosive environments
2) 5G + full network support, multi-system positioning, stable and accurate signal
3) Qualcomm octa-core + large storage, smooth operation, and efficient processing of industrial data
4) 8-inch high-definition touch screen, visible in strong light, suitable for harsh industrial environments
5) Dual cameras + LED flashlight to meet the needs of underground shooting and emergency lighting

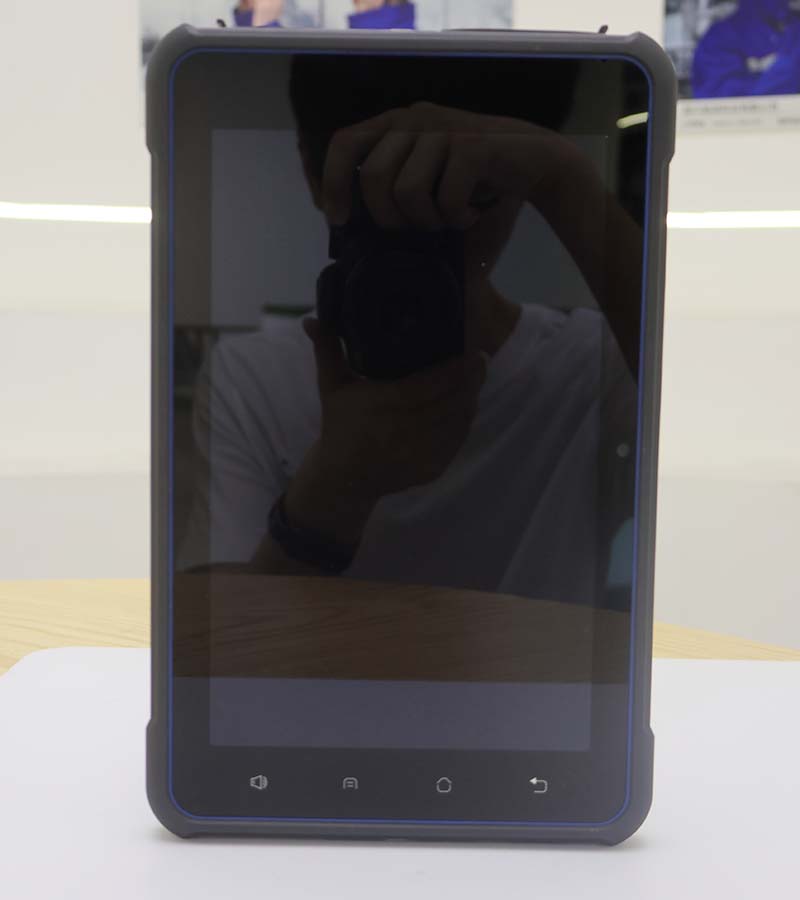

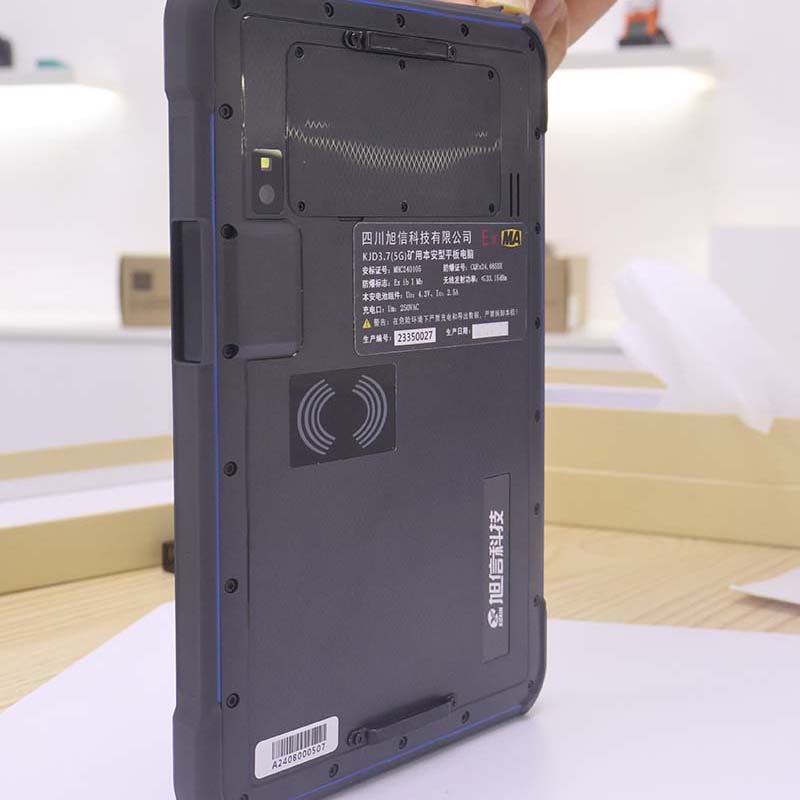

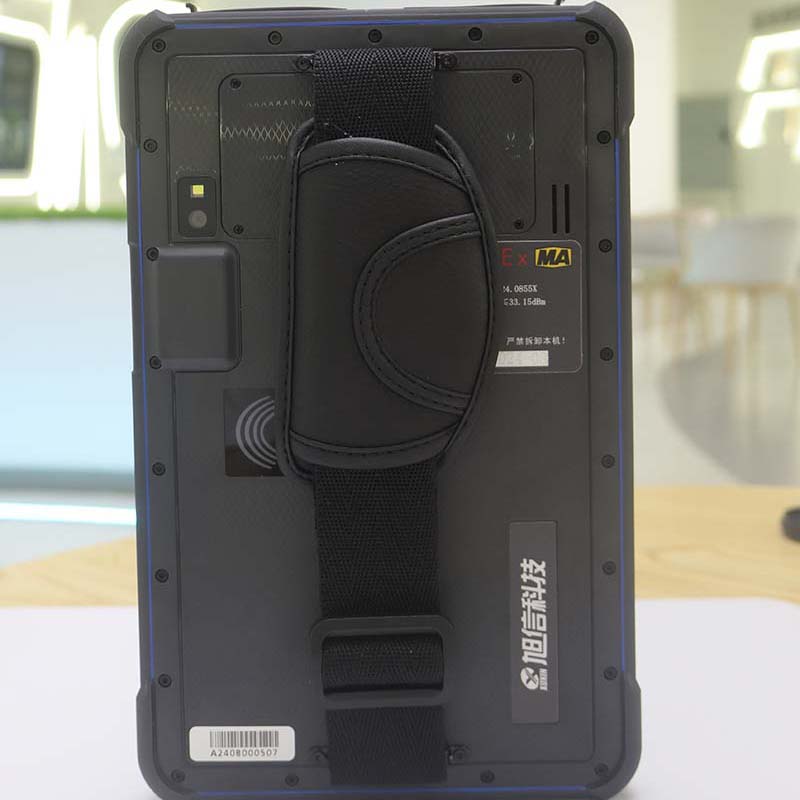

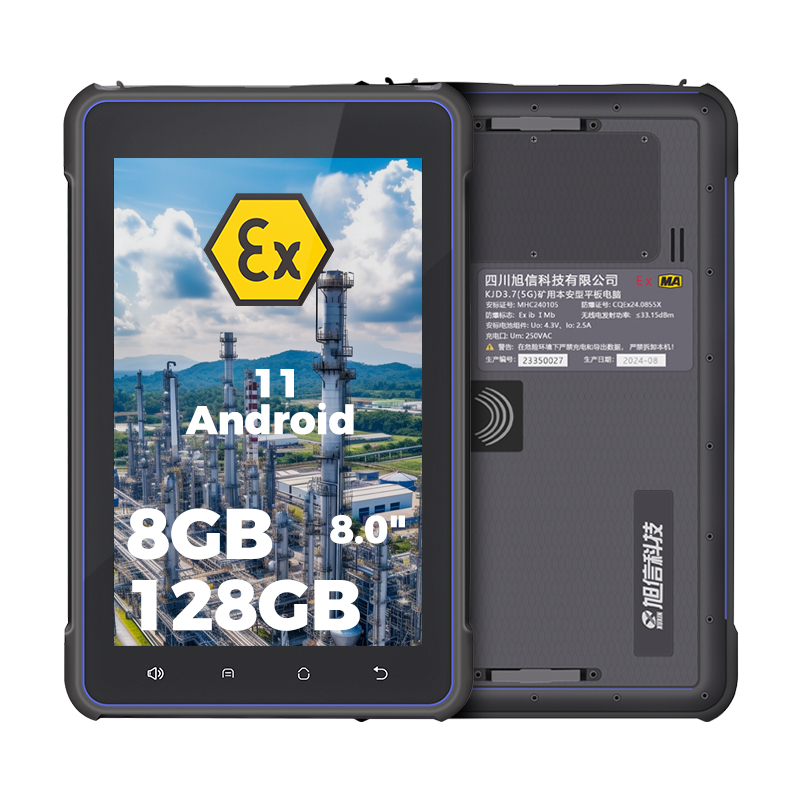

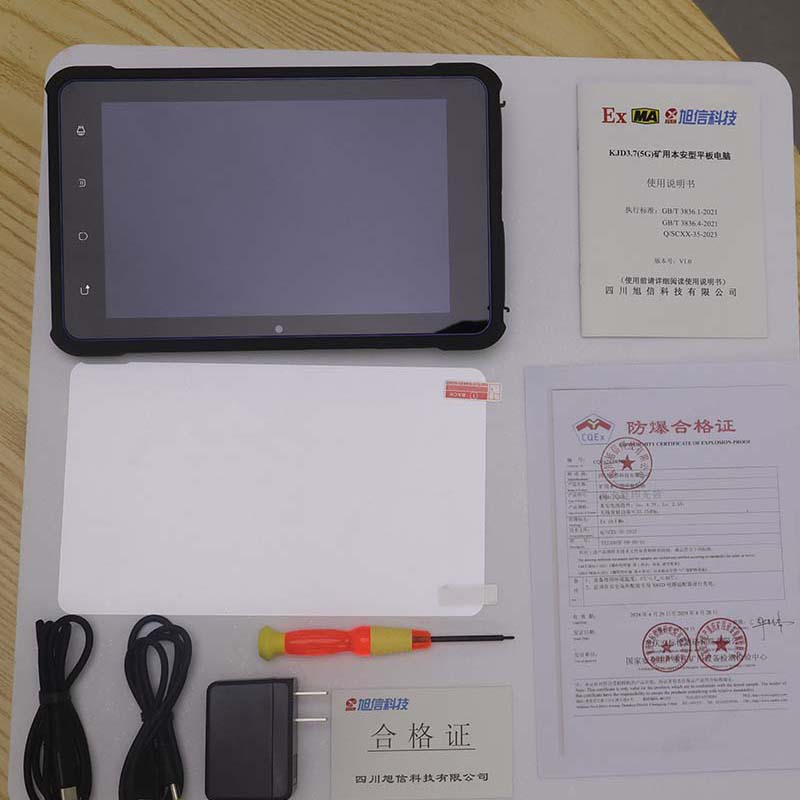

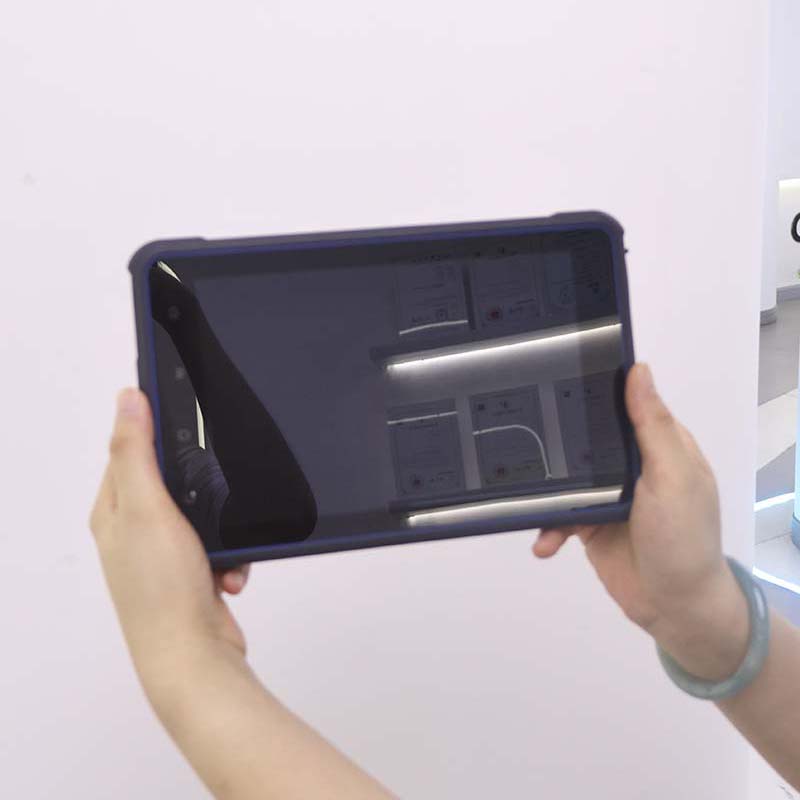

Detail photos of Explosion-proof Android Tablet with 5G Speed
Product parameters of Explosion-proof Android Tablet with 5G Speed
| Product Name | KJD3.7(5G) |
| Explosion proof mark | Ex ib I Mb |
| Size | 230×146×20mm |
| Weight | About 800g (including battery) |
| Display | 8-inch IPS high-definition screen, resolution 800 * 1280 |
| Touch screen | Industrial grade multi touch capacitive screen |
| Expansion Slots | 1 SIM card slot, 1 Micro SD (TF) card slot, |
| Communication interface | Type-C data interface supports USB 3.1 and OTG |
| Indicator light | Charging indicator light |
| keyboard | Power button, F1-F3 buttons |
| Camera | Front 5MP, rear 13MP, camera with flash |
| Flashlight | Low power LED lighting for emergency use |
| Location | GPS/BeiDou/GLONASS/Galileo/NavIC/QZSS， Supports L1+L5 dual frequency |
| CPU | Qualcomm SM4350 Octa Core 64 bit processor |
| Memory capacity | 8GB+128GB |
| Operating system | Android11.0 |
| Expand memory | Supports 256GB Micro SD card (optional) |
| 5G |
NR SA n1/n28/n41/n78/n79 NR NSA n41/n78/n79 |
| 4G |
TDD-LTE Band B34/B38/B39/B40/B41 FDD-LTE Band B1/B3/B5/B8 |
| 3G | WCDMAB1/B5/B8 |
| 2G | GSM/GPRS/Edge（850/900/1800/1900Mhz） |
| WIFI | 2.4&5 GHz，802.11a/b/g/n/ac/ax-ready，2×2 MIMO |
| Bluetooth | Bluetooth5.1 |
| Operating temperature | 0℃～40℃ |
| Relative humidity | ≤95%（25℃） |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage Temperature | -40℃～60℃ |
| Place of use | Underground coal mines with methane mixture and coal dust explosion hazards |
| Battery capacity | 12000mAh |
FAQ about Explosion-proof Android Tablet with 5G Speed
A1: In which hazardous locations is this tablet suitable?
Q1: It is applicable to underground coal mines with the risk of methane mixtures and coal dust explosions.
A2: Which networks and location methods are supported?
Q2: Supports 5G/4G/3G/2G/WIFI, multi-system dual-frequency positioning, and stable signal.
A3: Can storage be expanded? What is the maximum support?
Q3: Supports expansion, with a maximum compatibility of 256GB Micro SD cards (optional).
A4: What is the operating temperature range? Can it adapt to harsh environments?
Q4: Operating temperature range: 0℃ to 40℃. Dust-proof and shock-resistant, suitable for harsh underground environments.
A5: What is the battery capacity of the A5? Can the battery life meet the inspection requirements?
Q5: Equipped with a 12000mAh large-capacity battery, it offers strong battery life and is suitable for long-term underground operations.
