Rugged Tablet For Hazardous Environments
The XUXIN Expad-10 (DW) is a rugged tablet designed for use in hazardous environments, including areas with flammable or explosive gases such as petroleum facilities, chemical plants, pharmaceutical factories, gas stations, oil depots, and storage tank zones.
Product Description
Introduction of Rugged Tablet For Hazardous Environments
XUXIN Expad-10 (DW) is a rugged tablets for hazardous environments, that supports Windows system, 10.1-inch touch screen, 8G+128G memory, 4G full network, and passes the IIC explosion-proof rating. It can be used in Zone 1 and Zone 2 flammable and explosive environments and dust environments.
Feature of Rugged Tablet For Hazardous Environments
1）Display: 800 × 1280 HD screen, with an optional 1200 × 1920 FHD version available at an additional cost.
2）Camera: 8MP autofocus camera with built-in flashlight for clear imaging.
3）Graphics: Intel® HD Graphics Gen 11 LP for smooth visual performance.
4）Memory & Storage: 8GB RAM and 128GB internal storage.
5）Optional Features: Choose either RFID or ID card functionality (additional cost applies).
6）Battery: Built-in 10,000mAh intrinsically safe battery for extended operation.
7）Wireless Connectivity: Dual-band Wi-Fi (802.11 a/b/g/n/ac) supporting both 2.4GHz and 5.8GHz networks.

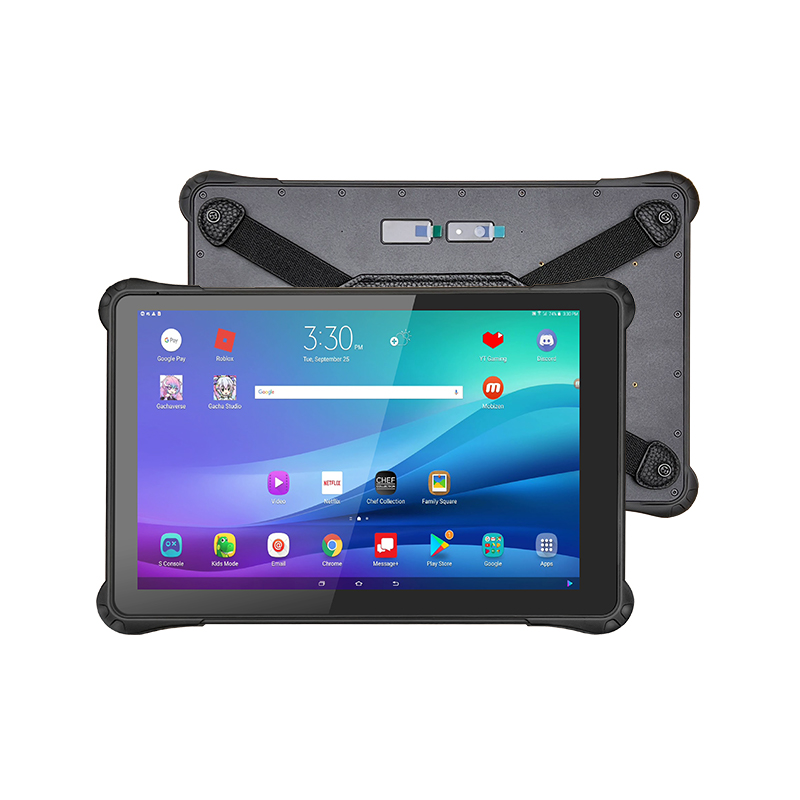

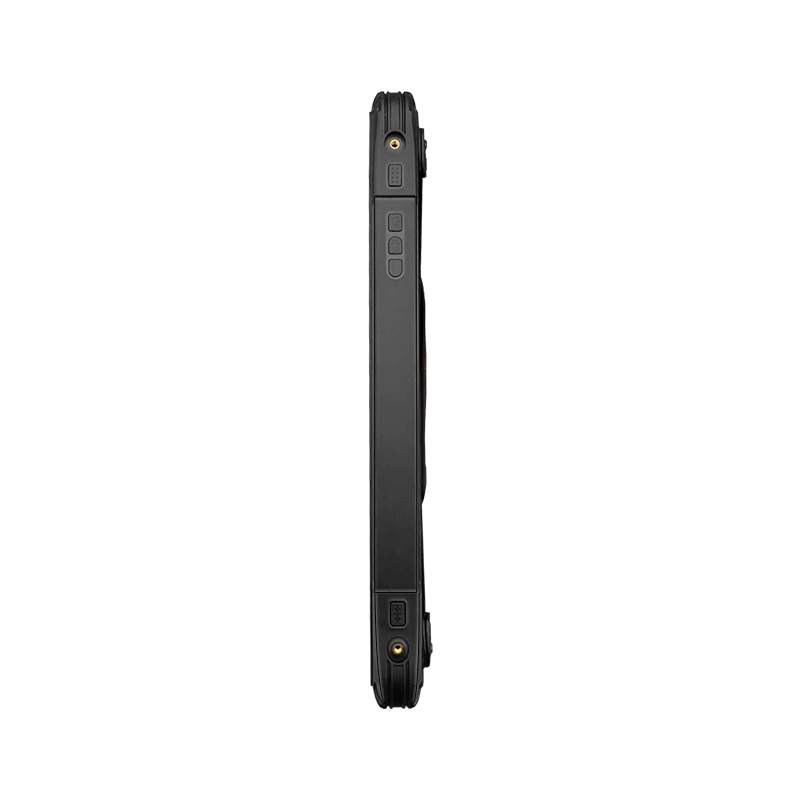

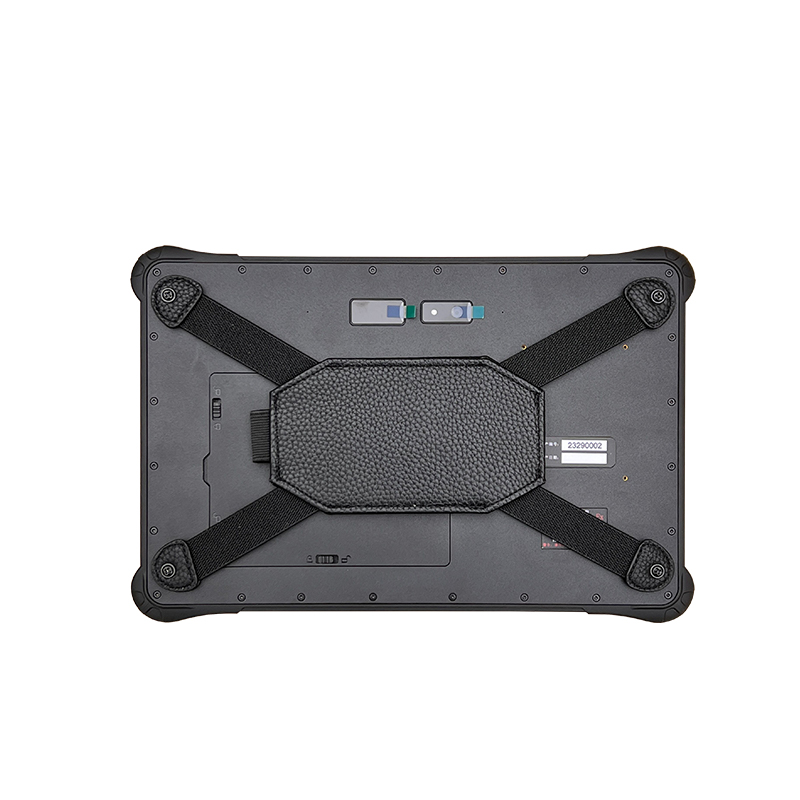

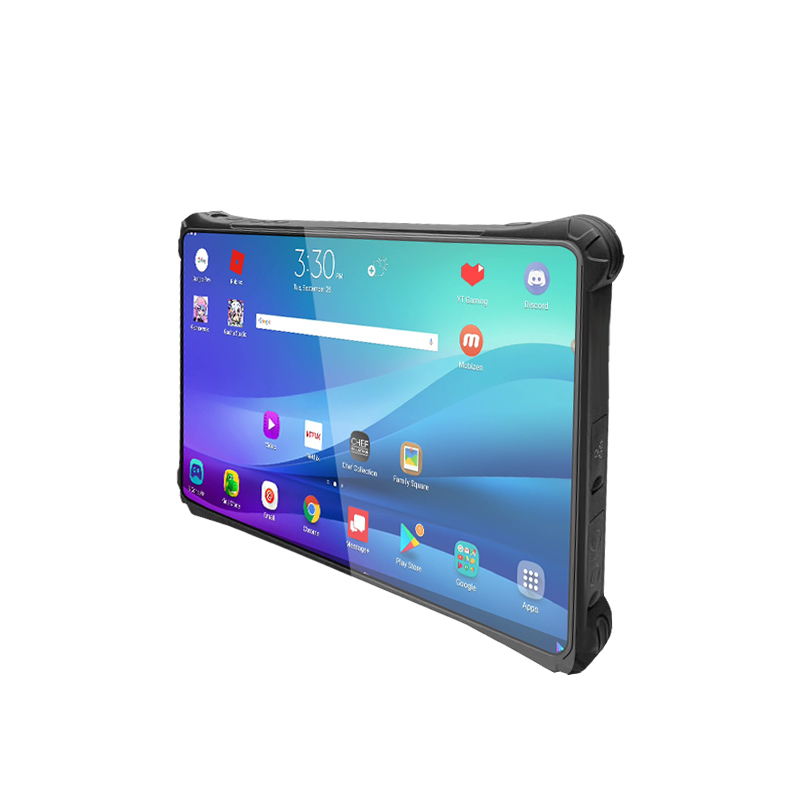

Detail photos of Rugged Tablet For Hazardous Environments
Product parameters of Rugged Tablet For Hazardous Environments
| Physical parameters | size | 280*188*23mm |
| weight | 1200g | |
| color | black | |
| LCD | size | 10.1-inch 16:10 TFT IPS screen |
| resolution standard | 800 * 1280 HD, optional: 1200 * 1920 FHD (customized at a separate cost) | |
| brightness | 750cd/㎡ high brightness screen | |
| touch Screen | 10 point touch capacitive touch screen, G+G, Gorilla Glass, hardness 7H | |
| Camera | front | 5MP fixed focus camera |
| postposition | 800MP autofocus camera with flashlight function | |
| Speaker | built-in | 8 Ω/1W, stereo dual speakers |
| Microphone | built-in | Single MIC, sensitivity: -42db, output impedance 2.2k Ω |
| Battery | capacity | 3.7V/10000mAh |
| endurance | 8 hours (default 50% brightness to play 1080P video) | |
| CPU | Intel JASPER LAKE N5100 processor, 4 cores, 4 threads, embedded 4 MB SmartCache；Maximum frequency 2.8GHz | |
| GPU | Intel® HD Graphics Gen 11 LP | |
| Memory | 8GB+128GB | |
| Operating system | windows 10/11 (Genuine systems require additional purchase) | |
| Sensor | support gravity acceleration sensor | |
| WIFI | WIFI 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI | |
| Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m | |
| 4G | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD B40,WCDMA: B1/B5/B8 GSM: 900/1800 | |
| GPS | GPS、Glonass、beidou(G+G+B) | |
| NFC | 13.56MHz supports ISO/IEC 14443A/14443B/15693/18092/Mifare protocol, with a card reading distance of 2-5cm | |
| RFID | RFID and ID card optional (paid separately) can only choose one or the other optional (paid separately) | high frequency 13.56MHz, supporting ISO/IEC 14443A/14443B/15693 protocol |
| ID | ultra high frequency PR9200/R2000 | |
| QR code | optical resolution: 5ml, scanning speed: 50 times/s | |
| fingerprint | optional (paid separately) | FBI certified fingerprint module |
| Standard interface | TF card | TF card x1, supports up to 256GB expansion (optional separately paid) |
| SIM | card micro SIMcard x1 | |
| USB Type-C | fully functional Type-C x1, charging and data transmission | |
| USB Type-A | USB 3.0 x1 | |
| headphone jack | standard 3.5mm interface x1 | |
| HDMI | Mini HDMI 1.4a x1 | |
| etherNet | RJ45 x1，10M/100/1000M | |
| Expansion | pogo pin | bottom 12pin * 1 (charging interface, USB signal connection base) |
| aviation interface (optional, paid separately) | aviation interface x2, USB, RS232, DC power input (two out of three functions) | |
| The power adapter | input AC100V~240V, 50Hz/60Hz, output DC 19V/3.42A | |
| Data line | Type-C USB data cable | |
| Base | optional (paid separately), supports simultaneous charging of host and single battery, supports USB, RJ45 network port, RS232 data interface expansion | |
| Hand strap | hand strap x1 | |
| Shoulder strap | optional (paid separately) | |
| Protective performance | dustproof and waterproof | IP67 |
| operation temperature | -10 °C ~ 50 °C | |
| storage temperature | -20 °C ~ 60 °C | |
| electrostatic Discharge | ± 5kV contact discharge, ± 10kV air discharge | |
| humidity | 95% non condensing | |
