Intrinsically Safe Tablet for Hazardous Locations
The XUXIN Expad-10 is an intrinsically safe tablet certified with an IIB explosion-proof rating, allowing secure operation in Zone 1 and Zone 2 flammable and explosive environments. It is ideal for high-risk sites such as petroleum facilities, chemical plants, pharmaceutical factories, military zones, oil depots, and storage tank areas, supporting on-site inspections, data collection, and real-time communication.
Product Description
Introduction of Intrinsically Safe Tablet for Hazardous Locations
XUXIN Expad-10 is an intrinsically safe tablet equipped with the Windows 10 operating system, providing a smooth user experience. 8GB RAM and 128GB ROM memory configuration, meeting daily office and data processing needs. A 10.1-inch touch screen provides clear display effects and convenient touch operations, making it easy for employees to take pictures, view data, and perform other operations on site. Suitable for high-risk areas such as petroleum, chemical, pharmaceutical, military, oil depots, and tank farms, used for on-site inspections, data collection, and real-time communication.
Feature of Intrinsically Safe Tablet for Hazardous Locations
1）Display: 10.1-inch touchscreen with a resolution of 1200 × 1920 for clear and detailed visuals.
2）Operating System: Windows 10 Home 64-bit.
3）Processor: Intel Jasper Lake N5100, 4MB cache, 2.20 GHz for efficient computing performance.
4）Memory & Storage: 8GB RAM and 128GB internal storage, with an optional upgrade to 256GB.
5）Wireless Connectivity: Wi-Fi 802.11 a/b/g/n/ac, operating on 2.4GHz frequency.
6）Battery: Built-in intrinsically safe 5000mAh battery for reliable long-term use.
7）Bluetooth: BT 4.2 (BLE) with Class 1, providing a transmission range of up to 10 meters.

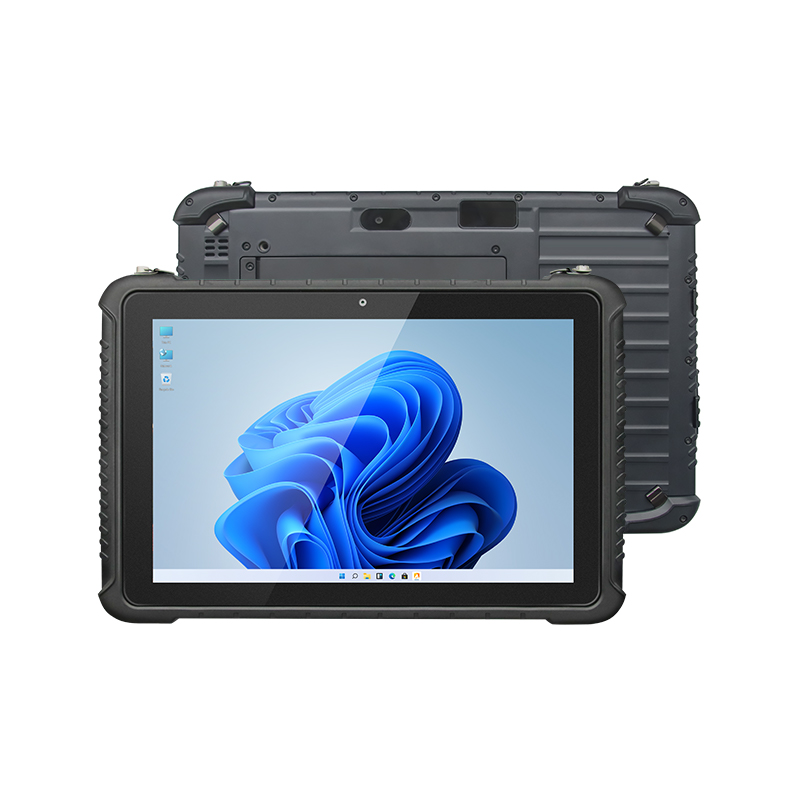

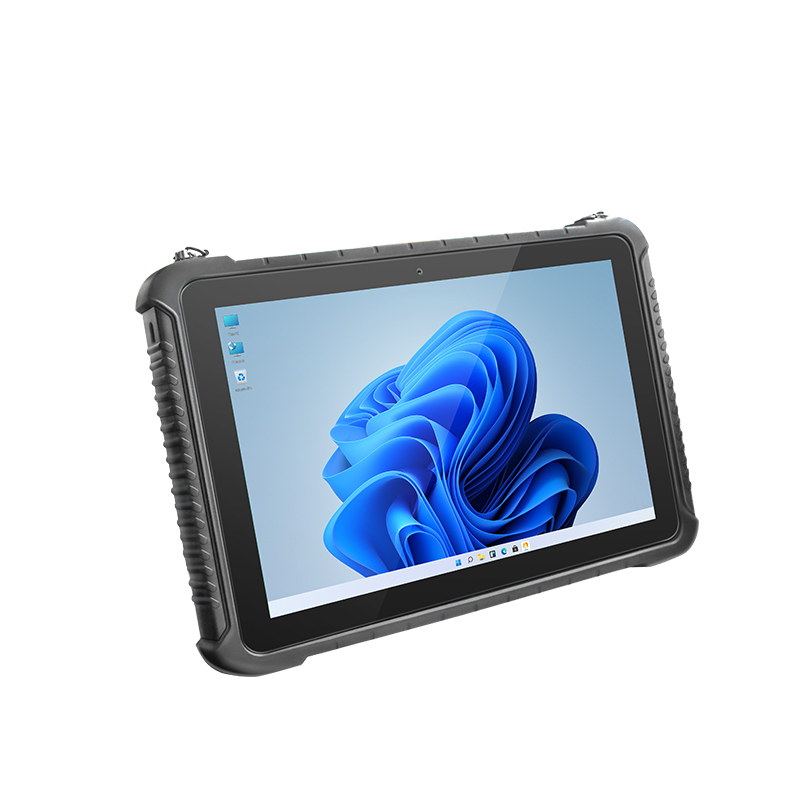

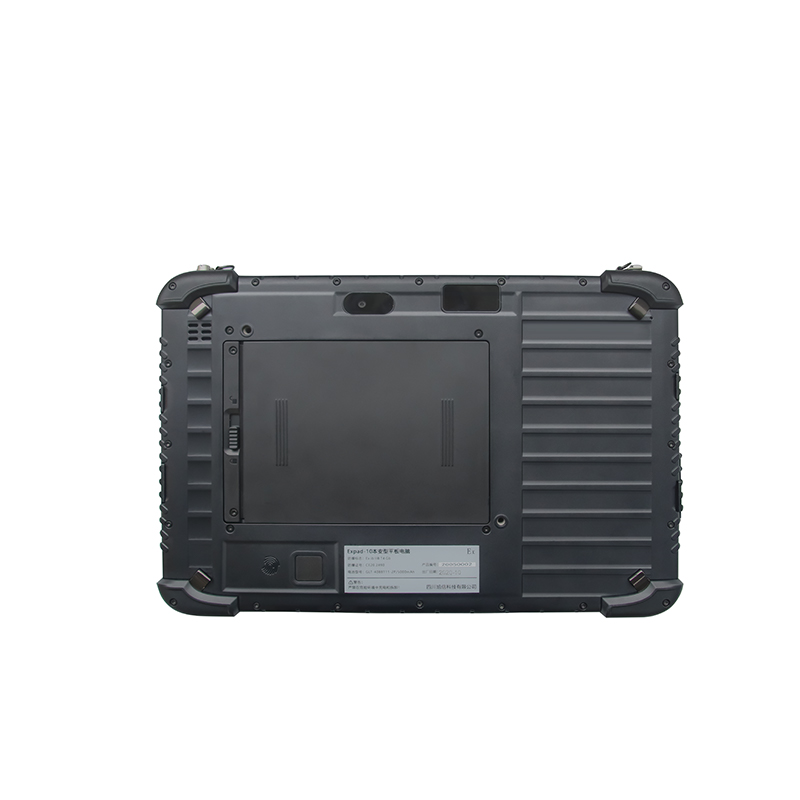

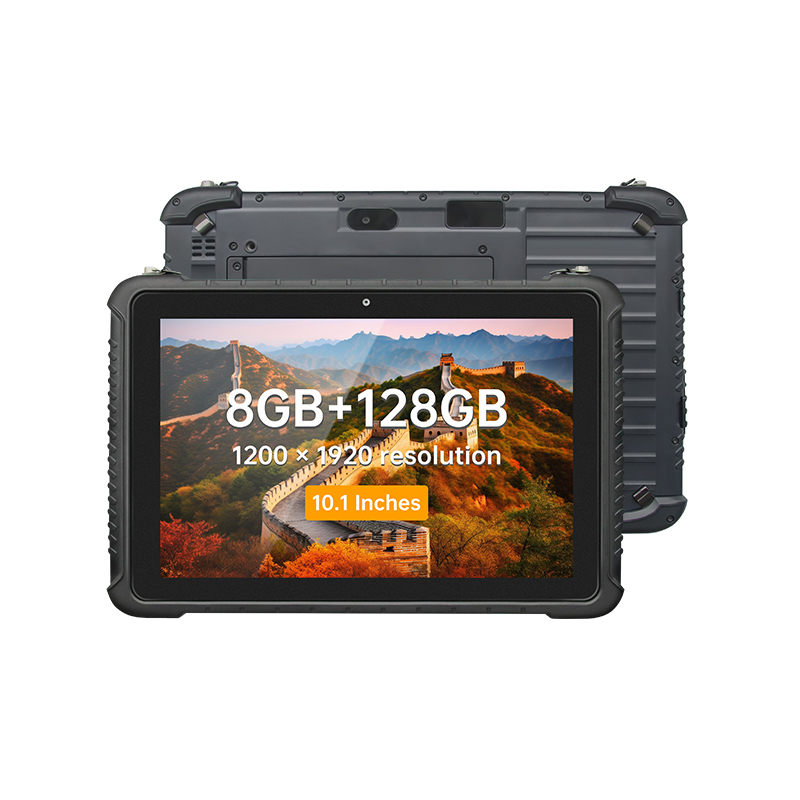

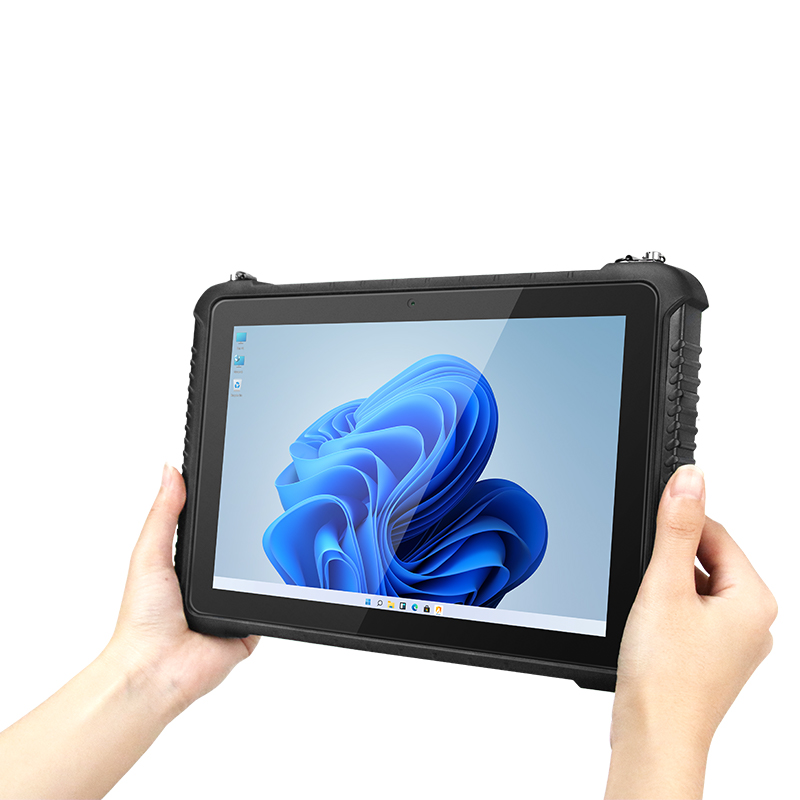

Detail photos of Intrinsically Safe Tablet for Hazardous Locations
Product parameters of Intrinsically Safe Tablet for Hazardous Locations
| Explosion proof sign | Ex ib IIB T4 Gb |
| outline dimension | 280.4*187*26.6mm |
| weight | Bare machine 1014g |
| colour | black |
| screen size | 10.1 inch 16:10 |
| Screen resolution | 1200×1920 |
| brightness | 330 cd/m2 |
| Touch Screen | 10 point capacitive screen, G+G, hardness above 7H, scratch resistant |
| front camera | 2.0MP with charging indicator light |
| Rear Camera | 8.0MP （USB） |
| speaker | Built in 8 Ω/0.8W waterproof speaker x 1 |
| Mic | Sensitivity: -42dB, output impedance 2.2k Ω |
| Battery capacity | Intrinsic safety type 5000mAh |
| endurance | 6 hours (default 50% volume, default 200 lumens brightness, playing 1080P high-definition video) |
| CPU | Intel JASPER LAKE N5100，4M Cache, 2.20 GHz |
| GPU | Intel® HD Graphics 515 |
| operating system | windows 10 Home 64bit |
| RAM | 8GB |
| SSD | 128GB，Optional 256GB |
| WIFI | WIFI 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI Intel 3165D2WG (3.3v) |
| Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m |
| 4G |
Mobile EC25-EC (European version) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (with poor support from China Unicom and China Telecom, only B8 support without TDD frequency band) Europe, Middle East, Africa |
| GPS | support |
| one-dimensional code |
Optional, MOTO SE655E100R, optical resolution: 5ml, scanning speed: 50 times/s, supports code systems: UPC/EAN, Bookland EAN, UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128, Code 39,Trioptic Code 39 , Code 32,Code 93 ,Code 11 |
| QR code |
Optional, EM80 hard decoding, optical resolution: 5ml, scanning speed: 50 times/s, supports code systems: PDF417, MicroPDF417 Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses, Han Xin,Han Xin Inverse |
| Expand external storage | TF x1 max：128G |
| SIM | SIM x1 |
| USB2.0 | Micr USB 2.0x1 |
| USB3.0 | USB 3.0x1 |
| DC interface | DC 12V4A ∮4.0mm |
| headphone jack | ∮3.5mm |
| HDMI interface | HDMI 1.4a Type C |
| pogo Pin | 12pin Pogo Pin |
| UART serial port | RS232 TTL |
FAQ
Q1. Why choose you?
A1: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q2. You are factory or trading company?
A2: We are 100% factory.
Q3. What is your payment?
A3: T/T wire bank transfer.
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
