5G Android Rugged Smartphone
The KTW346 (5G) is an all-weather rugged phone equipped with NFC and GPS. It incorporates advanced explosion-proof technology and materials to achieve intrinsic safety at the circuit level. This design effectively prevents incidents caused by electrical sparks or high temperatures, ensuring clear communication and enhanced productivity for personnel in hazardous environments.
Product Description
Introduction of 5G Android Rugged Smartphone
KTW346 (5G) is an All-weather Rugged phone with NFC/GPS, using advanced explosion-proof technology and materials to ensure the intrinsic safety design requirements of the circuit level, effectively preventing accidents such as explosions or fires caused by electric sparks or high temperatures, ensuring smooth communication between staff, and improving work efficiency.
Feature of 5G Android Rugged Smartphone
1) Featuring a 6.67-inch large display, it offers an expansive and immersive visual experience.
2) With 8GB of RAM and 256GB of storage, it easily accommodates various apps, files, and data needs.
3) Built with a rugged and durable design, it operates reliably in extreme conditions such as high temperatures, low temperatures, and high humidity.
4) Supporting GPS, Beidou, and GLONASS multi-positioning systems, it provides accurate navigation and location tracking even in complex environments.
5) Compatible with 5G networks, it enables fast, stable data transmission and clear voice communication.

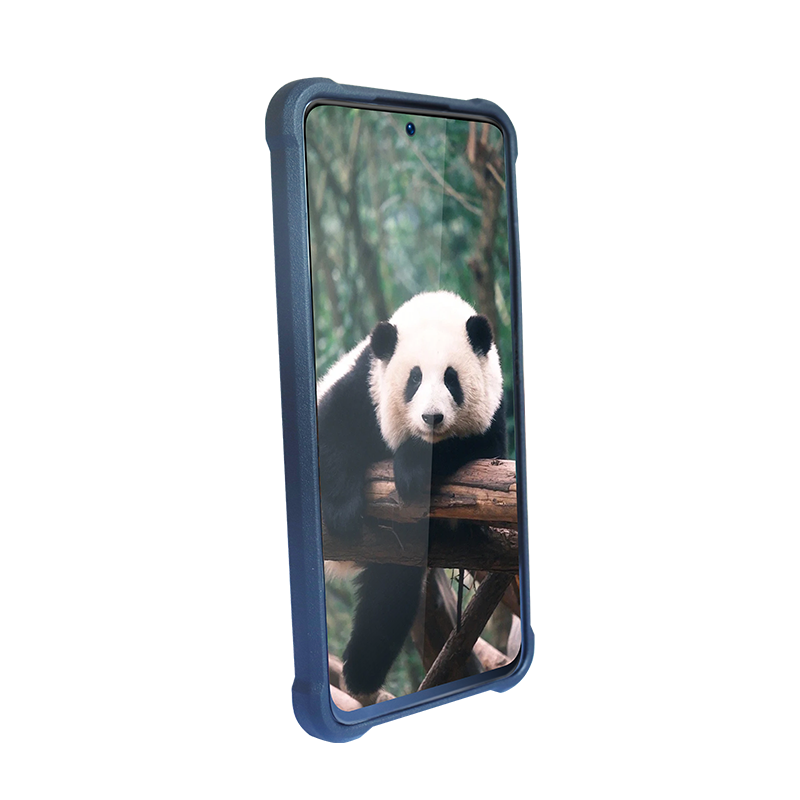

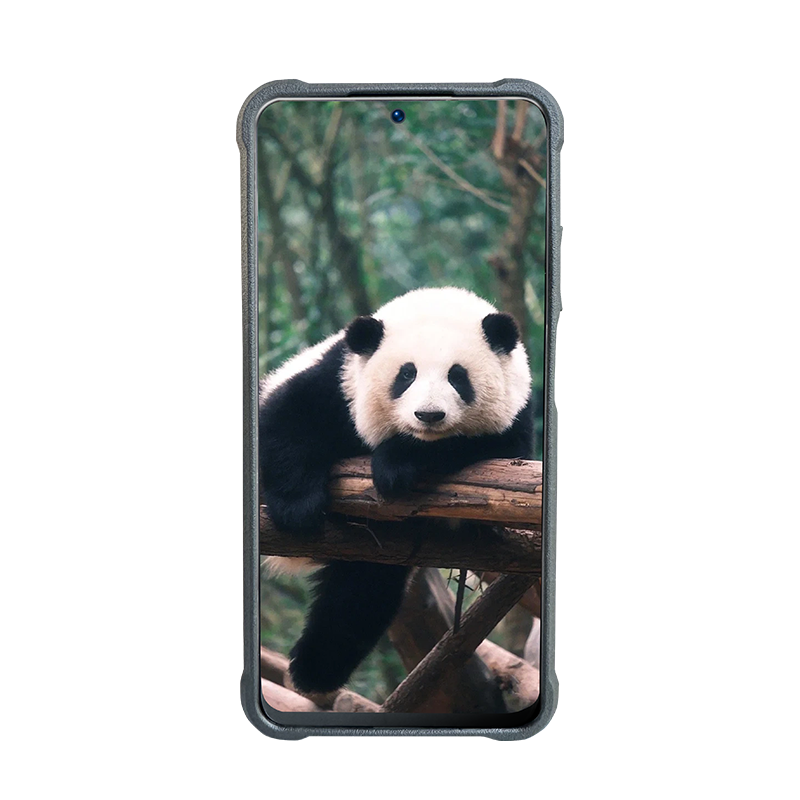

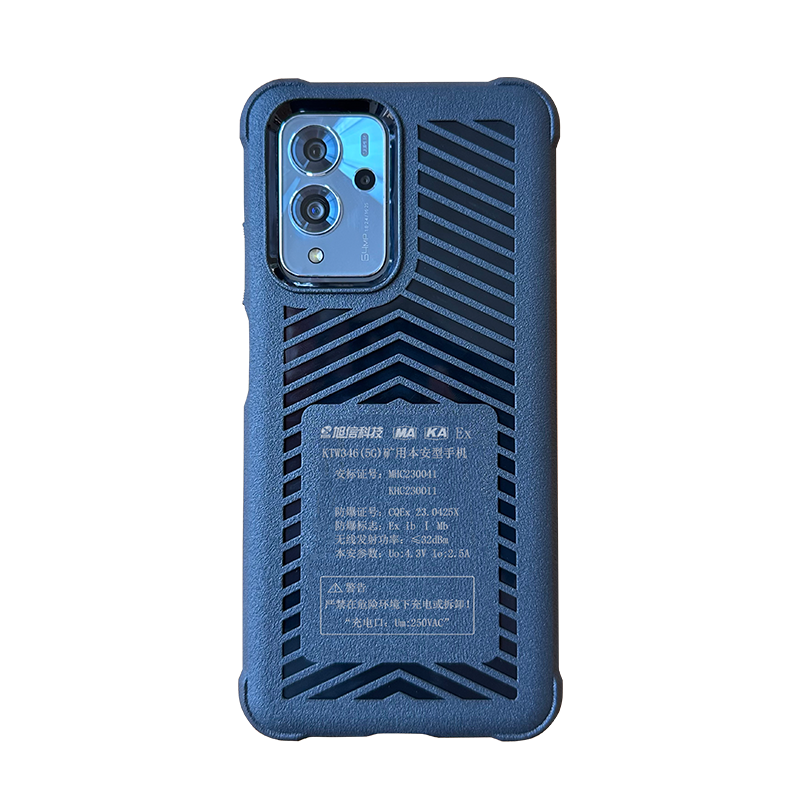

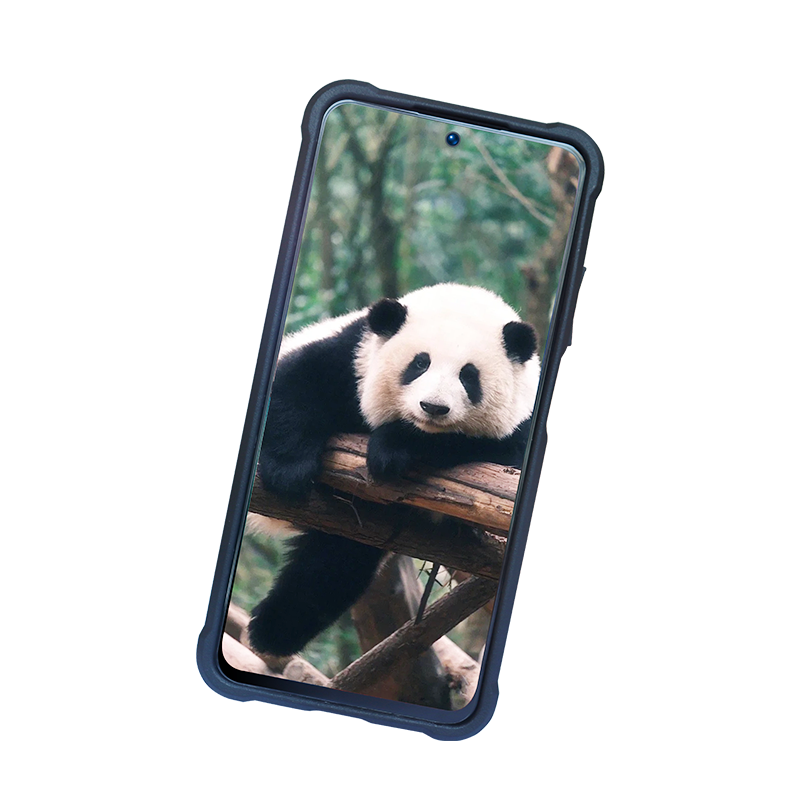

Detail photos of 5G Android Rugged Smartphone
Product parameters of 5G Android Rugged Smartphone
| Explosion proof mark |
Ex ib IIC T4 Gb Ex ib IIIC T130℃ Db Ex ib I Mb/KA |
| Network standard |
Support Unicom/Telecom 5G/4G+/4G/3G/2G Support mobile 5G/4G+/4G/2G |
| Network frequency |
5G NR NSA/SA: n1/n5/n8/n28/n41/n78 4G LTE FDD:B1/B3/B5/B7/B8 4G TD-LTE :B34/B38/B39/B40/B41 3G WCDMA:B1/B2/B5/B8 2G GSM:B2/B3/B5/B8 |
| CPU model | MediaTek Dimensity 810 6nm 2.4GHz 8-core processor |
| Number of CPU cores | Eight nuclei |
| Operating system | Android R（MyOS11.5） |
| Screen size | 6.67 inches |
| Screen color | 1.07 billion colors |
| Resolving power | 2400×1080 |
| Screen type | AMOLED |
| Front camera | 16 megapixel camera |
| Rear camera | 64 million pixel camera+8 million pixel wide-angle lens+5 million pixel macro lens |
| Size | 163.9 mm×76.2 mm×8.3mm |
| Weight | About 192g |
| SIM card | Nano SIM |
| Bluetooth | BT 5.1 |
| GPS navigation | support |
| Headphone jack | Supports Type-C analog and digital earphones |
| Data cable interface | USB Type-C |
| NFC | support |
| Anti shake mode | Electronic anti shake |
| Location | GPS+Beidou+GLONASS |
| WiFi | Dual band WiFi, WiFi5 (IEEE 802.11 a/b/g/n/ac) |
| Side keys (physical keys) | Power button |
| Volume key | |
| Accelerometer | support |
| Fingerprint sensor | support |
| Gyroscope | support |
| Compass | support |
| Running memory | 8GB |
| Body storage | 256GB |
| Battery capacity | Chemical 5100mAh/coal 2600mAh |
| Work environment | |
| Temperature | -20℃～+50℃ |
| Relative humidity | ≤98％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Applicable places | Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments. |
| Protection level | IP54 |
FAQ
Q1：Can I customize an All-weather Rugged phone with NFC/GPS?
A1：Sure, our factory produces OEM/ODM .
Q2： Can you put my brand name(LOGO)on the products?
A2: Yes,We can.
Q3. Why choose you?
A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q4. How can you slove the problem if we receive the defective goods？
A4: Send us the pictures or video first time, we will send free replacement spare parts for you.
Q5：Are you a trading company or a manufacturer?
A5：We are a manufacturer with over 10 years of experience. Welcome to visit our factory.
