5G Rugged Smartphone With Night Vision
XUXIN KTW280 is a rugged smartphone with infrared night vision, capable of capturing clear images even in complete darkness. With waterproof, dustproof, and shockproof protection, it is ideal for industrial applications and outdoor exploration.
Product Description
Introduction of 5G Rugged Smartphone With Night Vision
XUXIN KTW280 is a Night Vision Rugged Smartphone equipped with an infrared night vision camera that can capture clear images even in all black environments. It also has waterproof, dustproof, and shockproof functions, making it suitable for industrial and outdoor exploration fields.
Feature of 5G Rugged Smartphone With Night Vision
1) Certified explosion-proof for chemical and coal mine dust, safe for use in underground coal mines with explosive gases such as methane and coal dust.
2) Powered by the MTK6873 5G-A Dimensity 800 2.0 GHz octa-core processor for fast and efficient performance.
3) Camera setup: 13MP front camera; rear cameras include 48MP main (f/1.8 aperture), 20MP infrared night vision, 16MP ultra-wide, and 2MP macro lens.
4) Equipped with an 8,000mAh high-capacity intrinsic safety lithium battery for extended usage.
5) IP68-rated for waterproof, dustproof, and shockproof protection, ensuring durability in harsh environments.

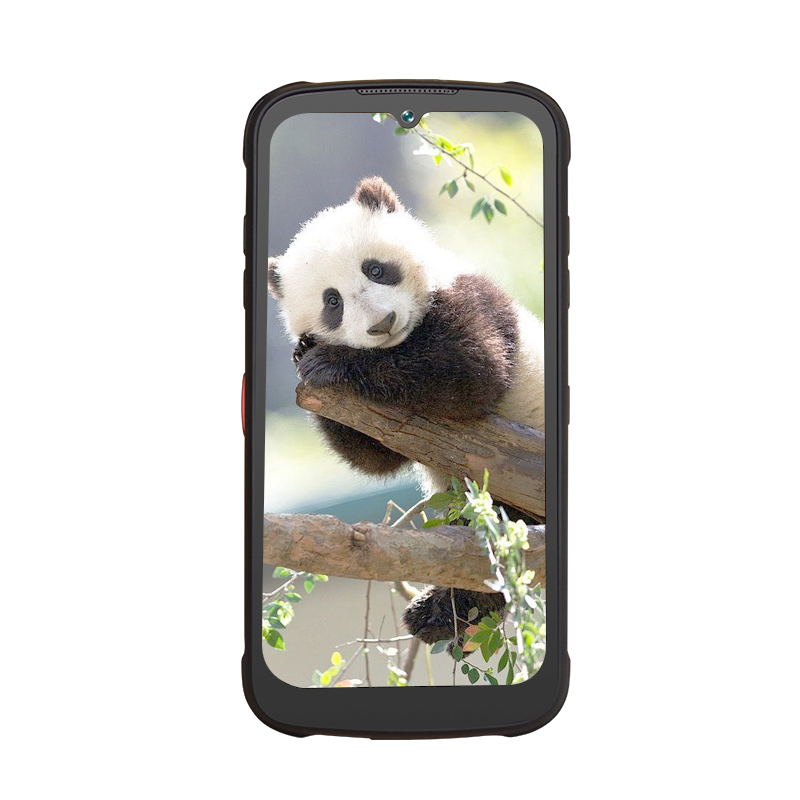

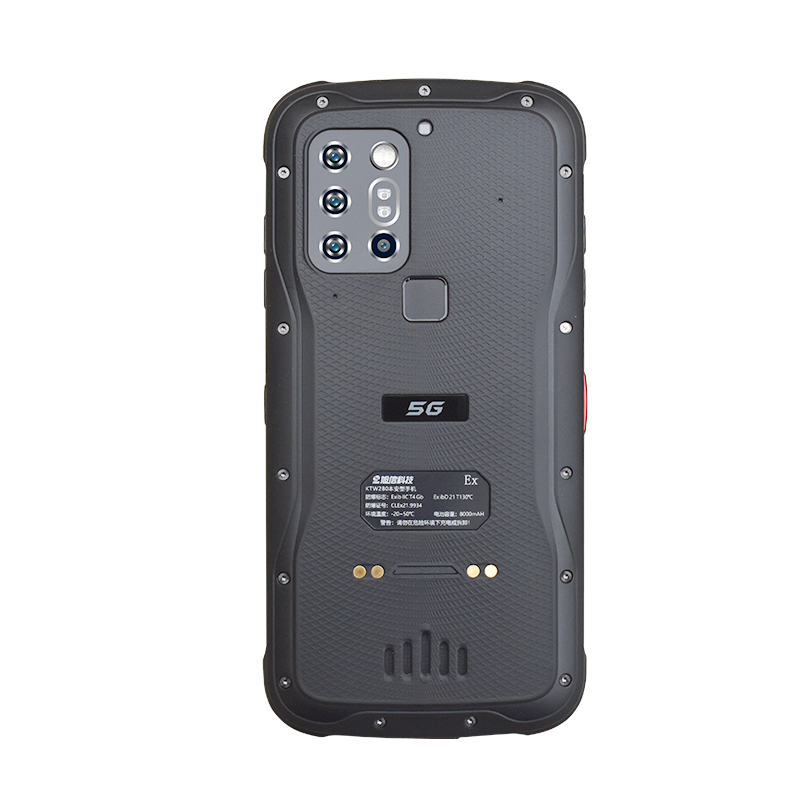

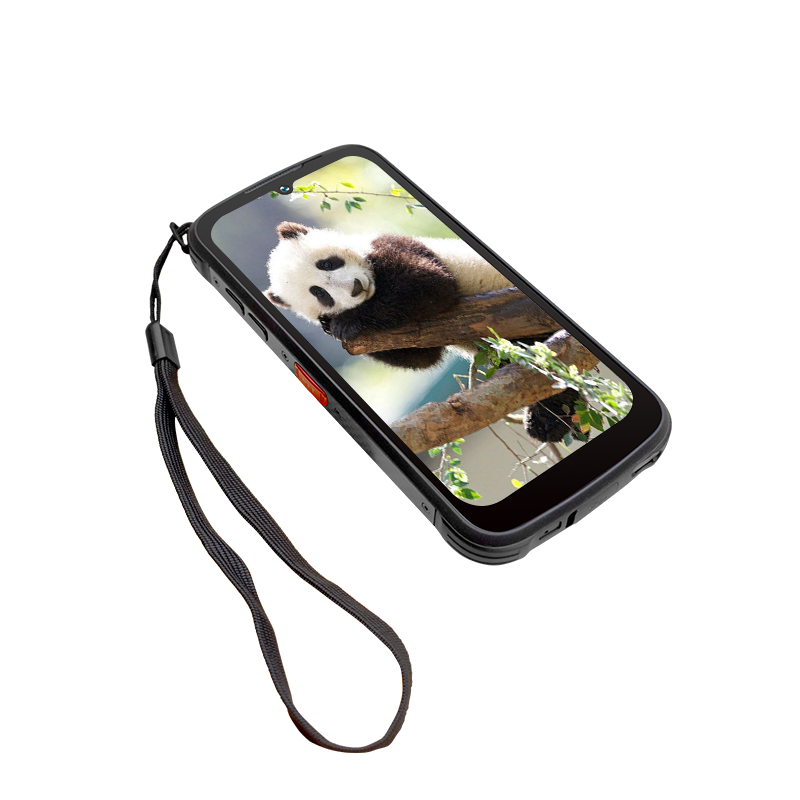

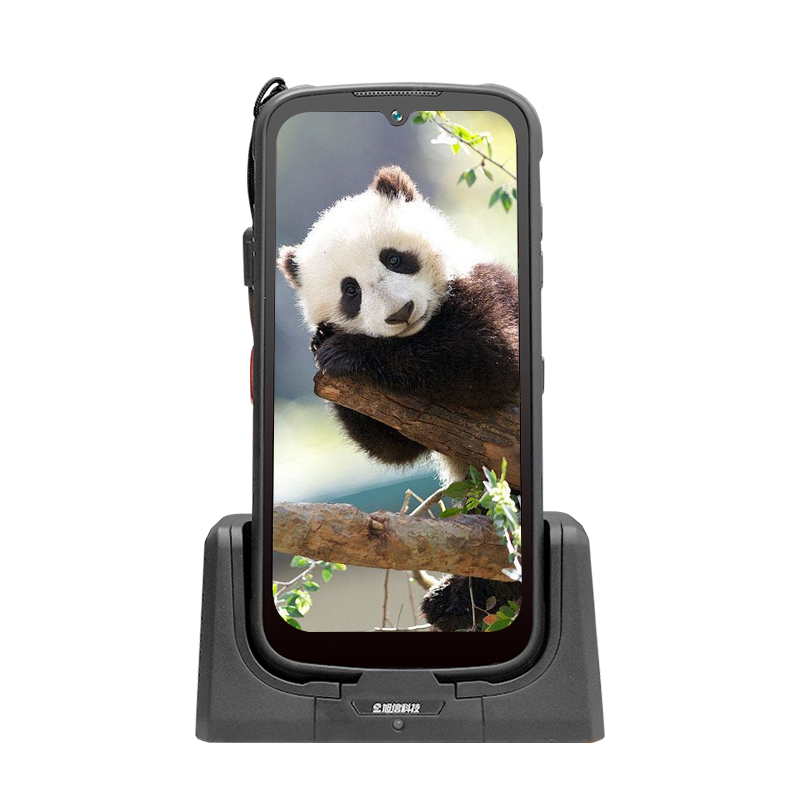

Detail photos of 5G Rugged Smartphone With Night Vision
Product parameters of 5G Rugged Smartphone With Night Vision
| Explosion proof type |
Ex ib I Mb Ex ib IIC T4 Gb Ex ibD 21 T130℃ |
| Network frequency band |
GSM：B2/3/5/8 WCDMA：B1/2/4/5/6/8/19(带RXD) TDS：B34/39 CDMA：BC0/BC1/BC10(带RXD) TDD：B34/38/39/40/41 FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 5G:N1/3/5/8/20/28/38/41/77/78/79 |
| Downward/Upward Speed |
GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps |
| Processor | MTK6873 chip 5G-A Dimensity 800 2.0 GHz octa core |
| Operating system | Android 11 |
| Memory | 8+256GB |
| Battery capacity | Chemical: 8000mAh |
| Coal mine: 5500mAh | |
| LCD size/screen resolution | 6.3FHD incell； 1080*RGB*2340 |
| Touch | Support (10 points, incell) |
| Front end | 13 million (2.2 aperture) |
| Rear mounted | 48 million (rear main camera/1.8 large aperture)+20 million (infrared night vision)+16 million (ultra wide angle)+2 million (macro) |
| Flash lamp | support |
| Size | L173*W82*H19mm |
| Weight | 350g |
| Protection level | IP68 |
| SIM card | Dual card (small card)/Nano sim |
| WiFi | Supports WiFi (2.4g&5G, A/B/G/N/AC) |
| Bluetooth | Support (Supports Bluetooth 5.0) |
| GPS positioning/GPS/Beidou/GLONASS/Galileo | BT/WIFI/GPS three in one antenna, supporting four mode positioning (GPS+Beidou+Glonass+Galileo) |
| Charging interface | Type-C interface (supports fast charging) |
| Headphone jack | Type-C to 3.5 |
| USB OTG | support |
| Key | Touch button (main menu button+menu button+return button)+physical button (power button+volume+/- button+PTT button+AI button+FN button) |
| NFC | 13.56MHz (antenna placed in battery area); Supports ISO15693 and ISO1443A/B protocols, including read-write mode, card mode, and near-field communication (point-to-point file transfer) |
| Charging method | Wired charging, wireless charging, landline charging, magnetic charging |
| fingerprint identification | support |
| Input method | Touchscreen (above 10 points, incell) |
| Antenna | Built in antenna |
| Motor | Linear motor |
| Horn | 2W waterproof speaker |
| Receiver | Waterproof earpiece |
| Microphone | Dual silicon microphone (supporting noise cancelling MIC) |
| Radio | support |
| POC intercom | Support (broadcast activation APK mode) |
| Distance sensing | support |
| Brightness sensing | support |
| Gravity induction | support |
| Power breathing indicator | support |
| Compass | support |
| Gyroscope | support |
| Atmospheric pressure altitude | support |
| Waist clip, hanging rope | support |
| Infrared remote control | support |
| Thermal imaging (optional) |
Resolution 256 * 192 Pixel size 17 μ m Field of view angle 50 ° Power consumption<1 50mW Temperature measurement range -20 ° C~170 ° C (Temperature measurement accuracy: Industrial temperature measurement: soil 2 ° C or 2% of the reading, whichever is greater) Temperature measurement distance of 1 meter Normal operating temperature -20~60 ℃ Best operating temperature 16 ° C-22 ° C Storage temperature -40~85 ℃ (relative humidity 5%~95% in non condensing state) |
| Temperature | -20℃～50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Place of use | It can be used in coal mines with explosive gas hazards such as coal dust and methane, and can also be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and combustible dust environments. |
