5G Ruggedized Phone
XUXIN KTW333 (5G) Tri-proof Phone is a rugged smartphone built for hazardous work environments, offering outstanding resistance to dust, water, and shocks. It is ideal for flammable and explosive industries, including petrochemicals, coal mining, safety inspections, emergency rescue, and pharmaceutical production, providing high protection and reliable communication in demanding conditions.
Product Description
Introduction of 5G Ruggedized Phone
XUXIN KTW333 (5G) Tri-proof Phone is a smart phone designed specifically for hazardous industries and environments, with excellent dust, water, and earthquake resistance functions. It is suitable for flammable and explosive hazardous industries such as petrochemicals, coal mines, safety inspections, emergency rescue, pharmaceutical factories, and other occasions that require high protection levels and stable communication performance.
Feature of 5G Ruggedized Phone
1) With an IP68 protection rating, the phone is built to withstand harsh conditions such as humidity and dust, keeping both the device and your data safe.
2) Powered by the high-performance MTK6877 processor, it delivers fast, smooth performance and handles multitasking effortlessly.
3) Comes with 8GB of RAM and 128GB of storage, ensuring seamless operation and ample space for files and apps.
4) Features a 6.3-inch FHD+ (1080 × 2340) LCD waterdrop display with a 120Hz refresh rate, offering expansive visuals and smooth, responsive operation.
5) Equipped with professional scanning modules, ideal for smart logistics, epidemic prevention, smart factories, and other multi-scenario scanning applications.

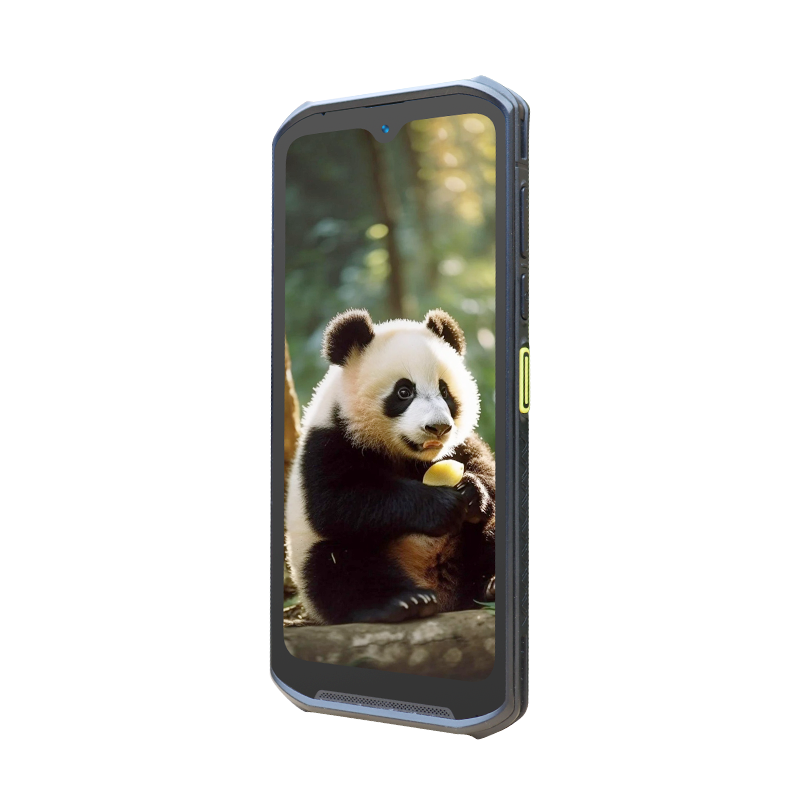

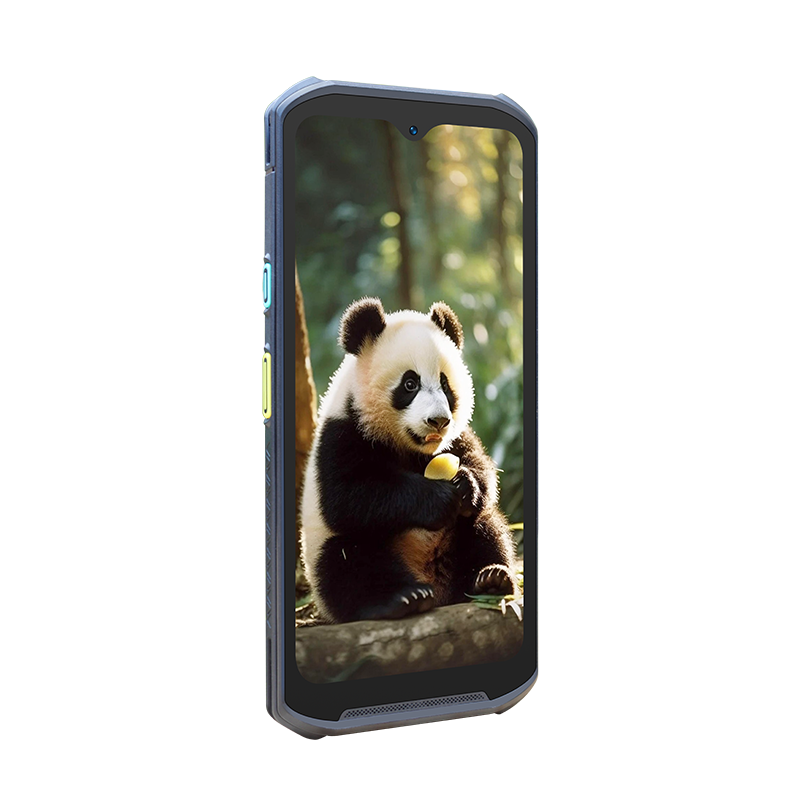

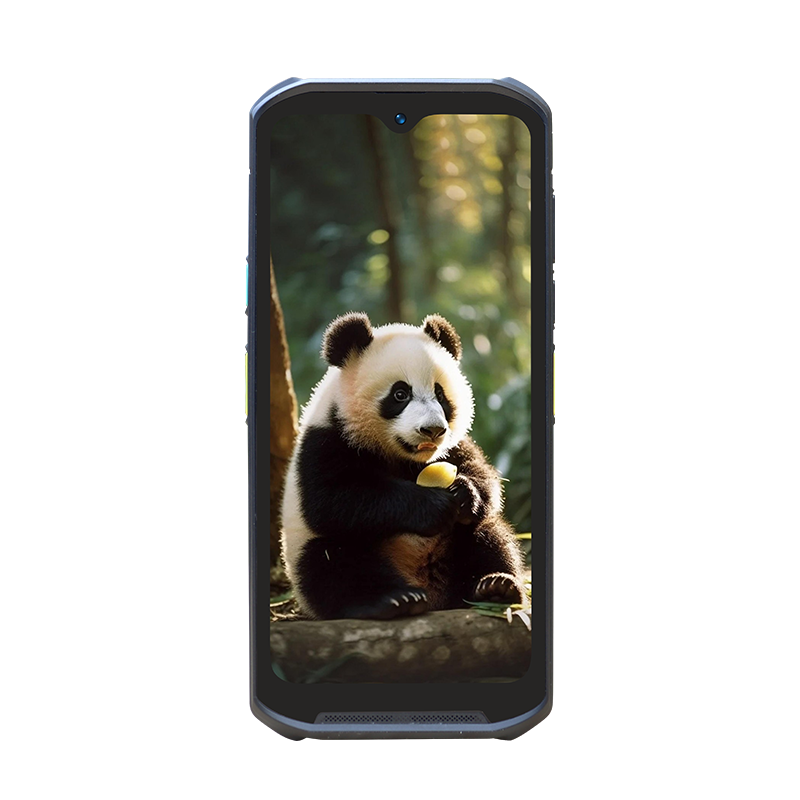

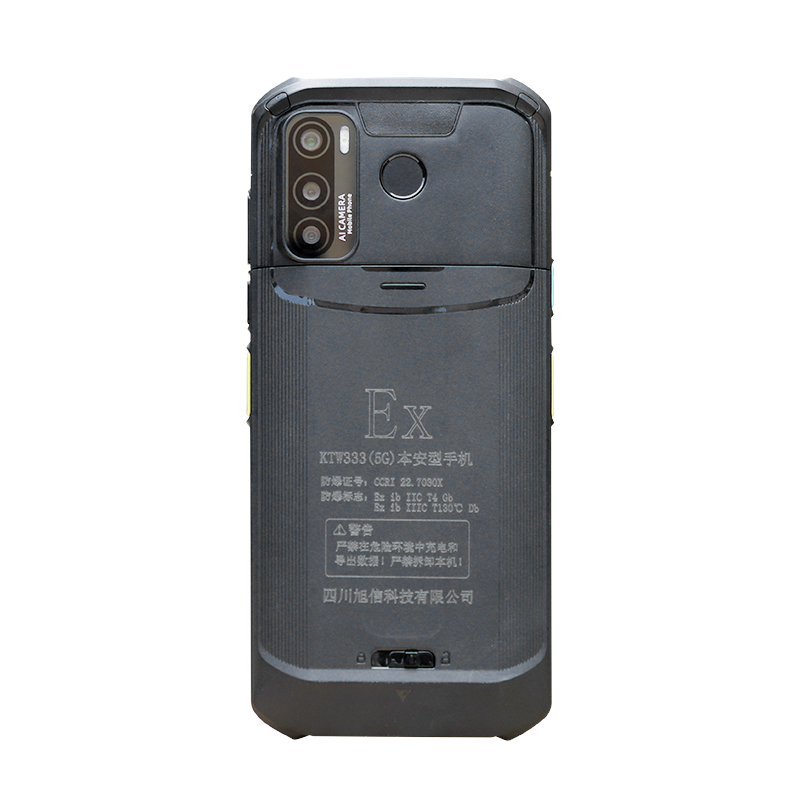

Detail photos of Tri-proof Phone
Product parameters of 5G Ruggedized Phone
| Explosion proof mark | Ex ib IIC T4 Gb； Ex ib IIIC T130°C Db； Ex ib I Mb/KA | |
| Network frequency band |
GSM：2/3/5/8 WCDMA：1/2/5/8 TDS：34/39 (compatible） TDD：34/38/39/40/41 FDD：1/2/3/5/7/8/20/26/28AB CDMA：BC0 5G:N1/N3/N8/N38/N41/N77/N78/N79/N28AB |
|
| Processor | MTK 6877 | |
| Operating system | Android 11 | |
| Display | 6.3 LCD, resolution FHD+1080 * 2340 | |
| Touch Screen | G+FF, Rainbow CG21 glass cover plate | |
| Camera | Front camera | 8 million pixels |
| Rear camera | 48 million pixels+5 million pixels (macro) | |
| Voice | Speaker | Front dual speakers, 2 * 1W |
| Microphone | Digital MIC, intelligent noise reduction | |
| Size | 169.00 mm×78.40 mm×17.06mm | |
| Weight | 215g | |
| SIM card | Choose two out of three, Nano+Nano/Nano+TF | |
| Bluetooth | BT 5.1 | |
| Motor | support | |
| Headset | 3.5mm independent headphone jack | |
| GPS | support | |
| Beidou | support | |
| GLONASS | support | |
| Interface | External interface | TYPE-C2.0，TYPE-C 3.0(optional) |
| Other interfaces | Seat charging interface | |
| Flash lamp | support | |
| NFC | support | |
| OTG | support | |
| Fingerprint identification | support, rear fingerprint | |
| Charging indicator light | support | |
| Charger | support (optional) | |
| Scanning head | support (optional) | |
| WLAN | WLAN protocol | support WIFI6, a.b.g.n.ac, ax |
| WLAN frequency | 2.4GHz and 5GHz | |
| WLAN hotspot | support | |
| key | Side key(Physical buttons) | power button |
| volume+/- key | ||
| intercom button | ||
| left custom key | ||
| right custom key | ||
| Touch button | menu key | |
| desktop keys | ||
| return key | ||
| Accelerometer | support | |
| Geomagnetic rotation vector Sensor | support | |
| Gyroscope sensor | support | |
| Optical distance sensing sensor | support | |
| Internal storage | 8GB+128GB | |
| External storage maximum | support for 256GB TF card | |
| Battery | 5300mAh intrinsic safety lithium battery | |
| Temperature | -20℃～+50℃ | |
| Relative humidity | ≤98％(25℃) | |
| Atmospheric pressure | 80 kPa～106kPa | |
| Storage temperature | -40℃～+60℃ | |
| Applicable places | Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments. | |
| Protection level | IP68（1.1m，40min） | |
| Attachment: Scanning Head Parameters | ||
| Image sensor | 1280×800CMOS | |
| Lighting | White LED | |
| Focusing | Laser 650nm | |
| Symbologies | 2D | PDF417，Micro PDF417，QR Code，Micro QR ，DataMatrix， AZTEC，Chinese Xin Code ，Maxicode，Composite，etc. |
| 1D | EAN13，EAN8，UPCA，UPCE，Code 128，Code 39，Codabar， UCC/EAN128，RSS，ITF，ITF14，ITF6，ISSN，ISBN，Standard 25，Matrix 25，Industrial 25，Plessey，MSI Plessey，Code 11，Code 93，etc. | |
| Reading accuracy | ≥3mil | |
| Typical Reading Depth of Field | EAN-13 | 70-600mm (13mil) |
| 110-230mm (6.7mil) | ||
| Code39 | 120-280mm (5mil) | |
| Data Matrix | 110-260mm (10mil) | |
| QR Code | 55-400mm (15mil) | |
| Symbol contrast | ≥25% | |
| Barcode sensitivity | Tilt ± 50 °, deflect ± 50 °, rotate 360 ° | |
| Field of view angle | Horizontal 42 °, vertical 28 ° | |
| Communication interface | IIC,MIPI | |
| Appearance dimensions (mm) | 23.8 (D) × 16.5 (W) × 7.0 (H) (maximum value) | |
| Weight | 2.4g | |
| Working voltage | VIMG:3.3VDC±5%，VLED: 3.3VDC±5% | |
| Rated power consumption | 370mW (typical value) | |
| Electric [email protected] | Work | 112mA (typical value), 295mA (maximum value) |
| Standby mode | 5.5mA | |
| Working temperature | -20℃~+55℃ | |
| Storage temperature | -40℃~+70℃ | |
| Working humidity | 5%~95% (no condensation) | |
| Environmental lighting | 0~100,000LUX | |
FAQ
Q1.What is a Tri-proof Phone？
A1: Refers to a mobile phone that has three protective functions: dust-proof, waterproof, and shockproof (or anti fall).
Q2. Can I customize a Tri-proof Phone？
A2: Sure, our factory produces OEM/ODM .
Q3. Why choose you?
A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
