Rugged Phone with Night Vision and Thermal Camera
The XUXIN KTW280 is a rugged smartphone engineered for use in hazardous environments with flammable or explosive risks. It holds certifications for coal mine, chemical, and dust explosion prevention, making it suitable for coal mines containing explosive mixtures like methane and coal dust, as well as for Zone 1 and Zone 2 areas with Class IIA, IIB, IIC gases and combustible dust environments.
Product Description
Introduction of Rugged Phone with Night Vision and Thermal Camera
XUXIN KTW280 is a Rugged Smartphone designed for hazardous environments such as flammability and explosiveness. It has obtained certificates for coal mine explosion prevention, chemical explosion prevention, and dust explosion prevention, and can be used in coal mines with explosive mixtures such as methane and coal dust, as well as in Zone 1, Zone 2, Class IIA, IIB, IIC gas environments and dust environments.
Feature of Rugged Phone with Night Vision and Thermal Camera
1) With an IP68 rating, it offers dustproof, waterproof, and drop-resistant protection, ensuring stable operation even in demanding environments.
2) Powered by the MTK6873 5G-A Dimensity 800 2.0 GHz octa-core processor, it delivers fast system responses and precise control.
3) Running on Android 11, it supports multiple applications, allowing users to easily handle a variety of tasks.
4) Featuring 8GB RAM and 256GB storage, it efficiently manages both work and entertainment needs.
5) Equipped with an 8000mAh high-capacity intrinsic safety lithium battery, it provides long-lasting power to support extended use and meet the demands of cluster scheduling applications.

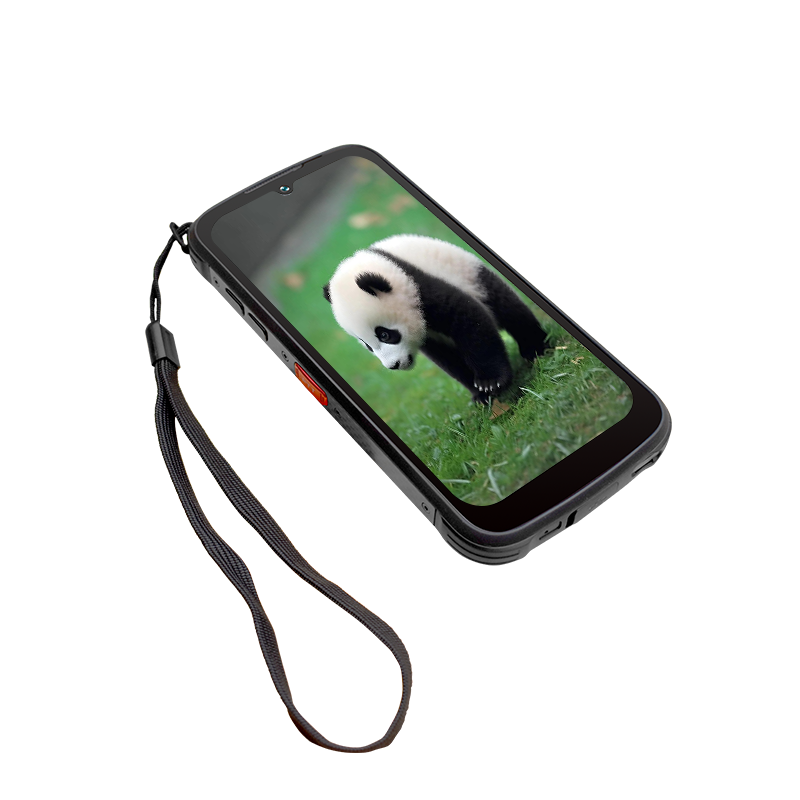

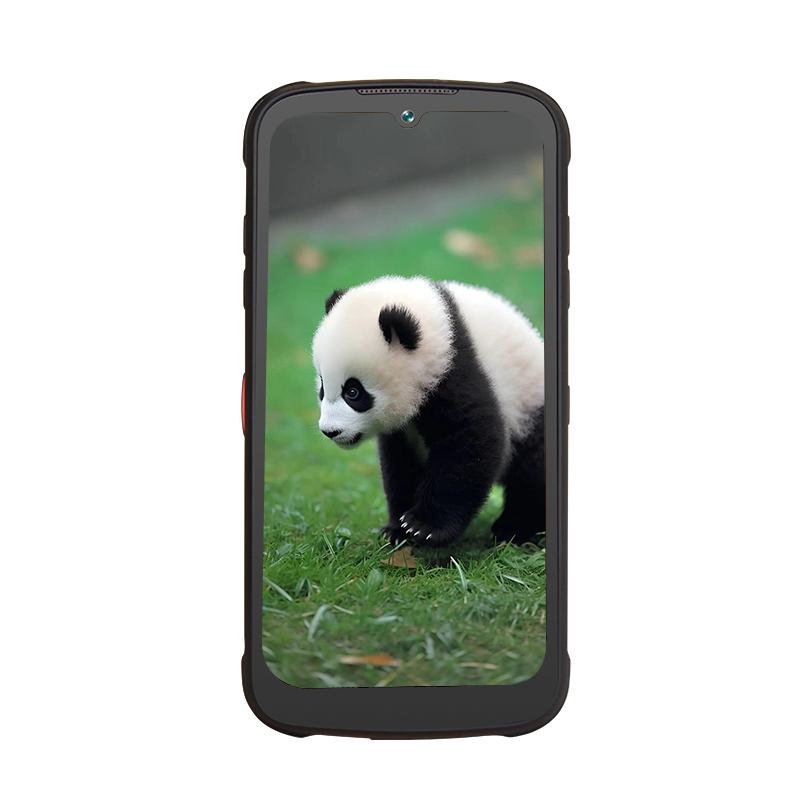

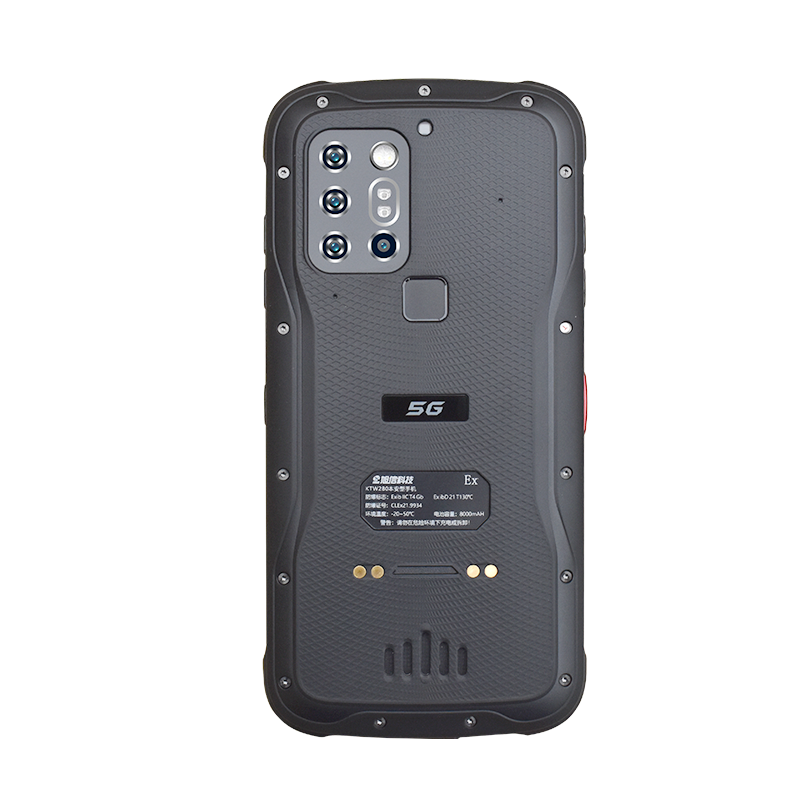

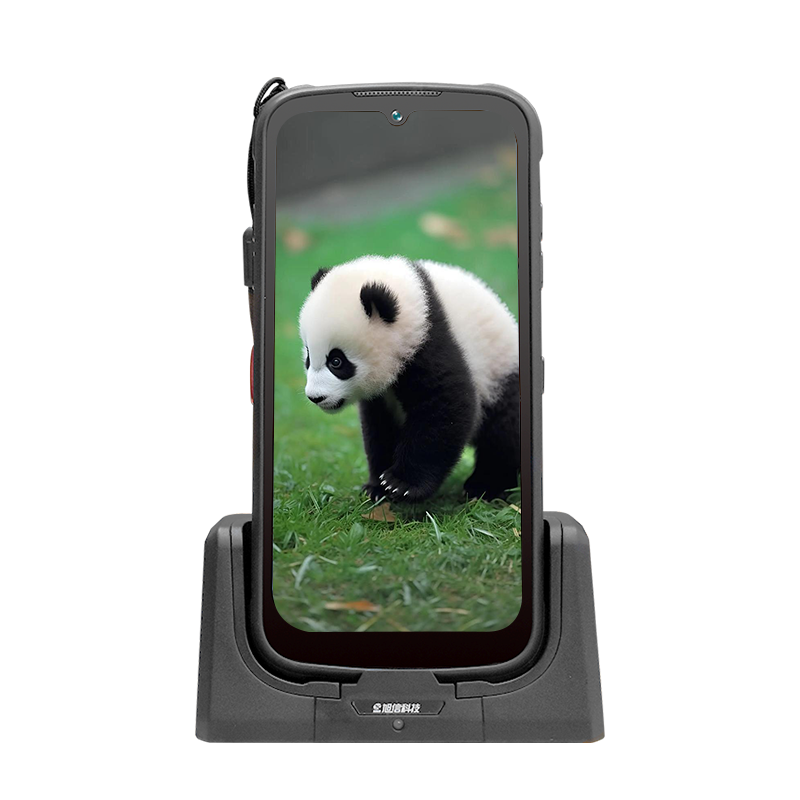

Detail photos of Rugged Smartphone
Product parameters of Rugged Phone with Night Vision and Thermal Camera
| Explosion proof type |
Ex ib I Mb Ex ib IIC T4 Gb Ex ibD 21 T130℃ |
| Network frequency band |
GSM：B2/3/5/8 WCDMA：B1/2/4/5/6/8/19(RXD) TDS：B34/39 CDMA：BC0/BC1/BC10(RXD) TDD：B34/38/39/40/41 FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 5G:N1/3/5/8/20/28/38/41/77/78/79 |
| Downward/Upward Speed |
GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps |
| Processor | MTK6873 chip 5G-A Dimensity 800 2.0 GHz octa core |
| Operating system | Android 11 |
| Memory | 8+256GB |
| Battery capacity | Chemical: 8000mAh Coal mine: 5500mAh |
| LCD size/screen resolution | 6.3FHD incell； 1080*RGB*2340 |
| Touch | Support (10 points, incell) |
| Front end | 13 million (2.2 aperture) |
| Rear mounted | 48 million (rear main camera/1.8 large aperture)+20 million (infrared night vision)+16 million (ultra wide angle)+2 million (macro) |
| Flash lamp | support |
| Size | L173*W82*H19mm |
| Weight | 350g |
| Protection level | IP68 |
| SIM card | Dual card (small card)/Nano sim |
| WiFi | Supports WiFi (2.4g&5G, A/B/G/N/AC) |
| Bluetooth | Support (Supports Bluetooth 5.0) |
| GPS positioning/GPS/Beidou/GLONASS/Galileo | BT/WIFI/GPS three in one antenna, supporting four mode positioning (GPS+Beidou+Glonass+Galileo) |
| Charging interface | Type-C interface (supports fast charging) |
| Headphone jack | Type-C to 3.5 |
| USB OTG | support |
| Key | Touch button (main menu button+menu button+return button)+physical button (power button+volume+/- button+PTT button+AI button+FN button) |
| NFC | 13.56MHz (antenna placed in battery area); Supports ISO15693 and ISO1443A/B protocols, including read-write mode, card mode, and near-field communication (point-to-point file transfer) |
| Charging method | Wired charging, wireless charging, landline charging, magnetic charging |
| Fingerprint identification | support |
| Input method | Touchscreen (above 10 points, incell) |
| Antenna | Built in antenna |
| Motor | Linear motor |
| Horn | 2W waterproof speaker |
| Receiver | Waterproof earpiece |
| Microphone | Dual silicon microphone (supporting noise cancelling MIC) |
| Radio | support |
| POC intercom | Support (broadcast activation APK mode) |
| Distance sensing | support |
| Brightness sensing | support |
| Gravity induction | support |
| Power breathing indicator | support |
| Compass | support |
| Gyroscope | support |
| Atmospheric pressure altitude | support |
| Waist clip, hanging rope | support |
| Infrared remote control | support |
| Thermal imaging (optional) |
Resolution 256 * 192Pixel size 17 μ m Field of view angle 50 ° Power consumption<1 50mW Temperature measurement range -20 ° C~170 ° C (Temperature measurement accuracy: Industrial temperature measurement: soil 2 ° C or 2% of the reading, whichever is greater) Temperature measurement distance of 1 meter Normal operating temperature -20~60 ℃ Best operating temperature 16 ° C-22 ° C Storage temperature -40~85 ℃ (relative humidity 5%~95% in non condensing state) |
| Temperature | -20℃～50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Place of use | It can be used in coal mines with explosive gas hazards such as coal dust and methane, and can also be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and combustible dust environments. |
FAQ
Q1：Can I customize a Rugged Smartphone?
A1：Sure, our factory produces OEM/ODM .
Q2： Can you put my brand name(LOGO)on the products?
A2: Yes,We can.
Q3. Why choose you?
A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q4. How can you slove the problem if we receive the defective goods？
A4: Send us the pictures or video first time, we will send free replacement spare parts for you.
Q5：Are you a trading company or a manufacturer?
A5：We are a manufacturer with over 10 years of experience. Welcome to visit our factory.
