Ultra Thin Rugged Phone
The XUXIN KTW426 (5G) outdoor industrial telephone is purpose-built for outdoor exploration and demanding industrial environments. It is particularly well-suited for use in locations such as coal mines where flammable gases and dust are present. Featuring a compact, lightweight design, it is easy to carry and offers reliable explosion-proof protection, ensuring safe and stable communication in hazardous areas.
Product Description
Introduction of Ultra Thin Rugged Phone
XUXIN KTW426 (5G) outdoor industrial telephone is a communication device designed specifically for outdoor exploration and industrial environments, especially suitable for industrial sites such as coal mines where flammable gases and dust exist. It is compact and lightweight, easy to carry, and has good explosion-proof performance, ensuring safety when used in hazardous environments.
Feature of Ultra Thin Rugged Phone
1) The phone features a high-resolution camera capable of capturing HD images, meeting the photography and recording requirements of industrial work environments.
2) With expandable memory up to 8GB RAM and 256GB storage, it offers ample space for storing large volumes of data and files.
3) It comes with professional explosion-proof certification (e.g., Ex ib Ⅰ Mb), ensuring safe operation in flammable and hazardous environments.
4) Equipped with GPS and Beidou dual navigation systems, it provides accurate positioning and convenient navigation for industrial field operations.
5) The 6.56-inch display delivers an enhanced visual experience and smooth touch interaction, improving overall usability.

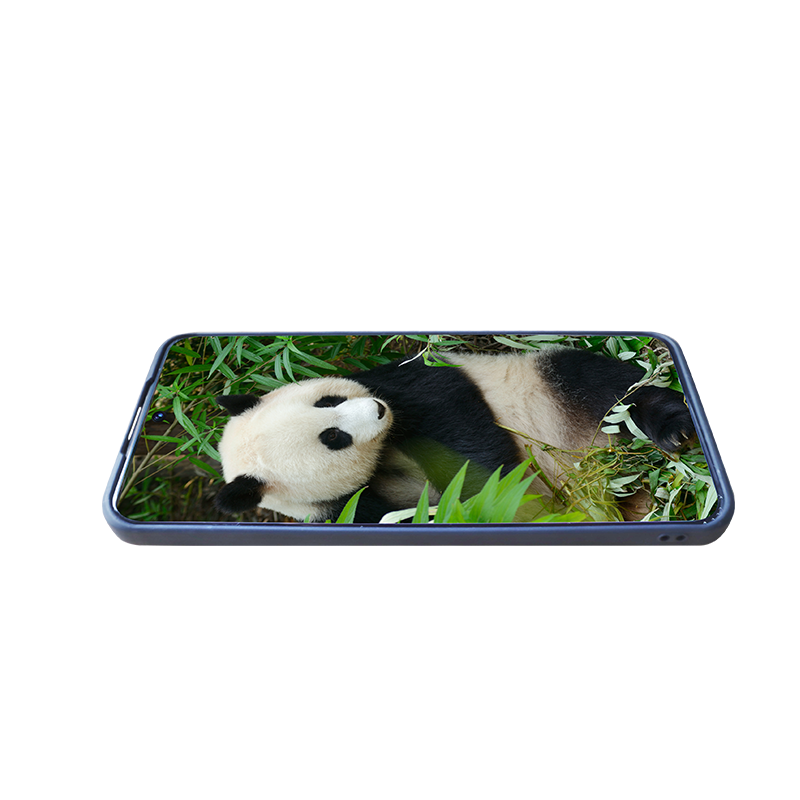

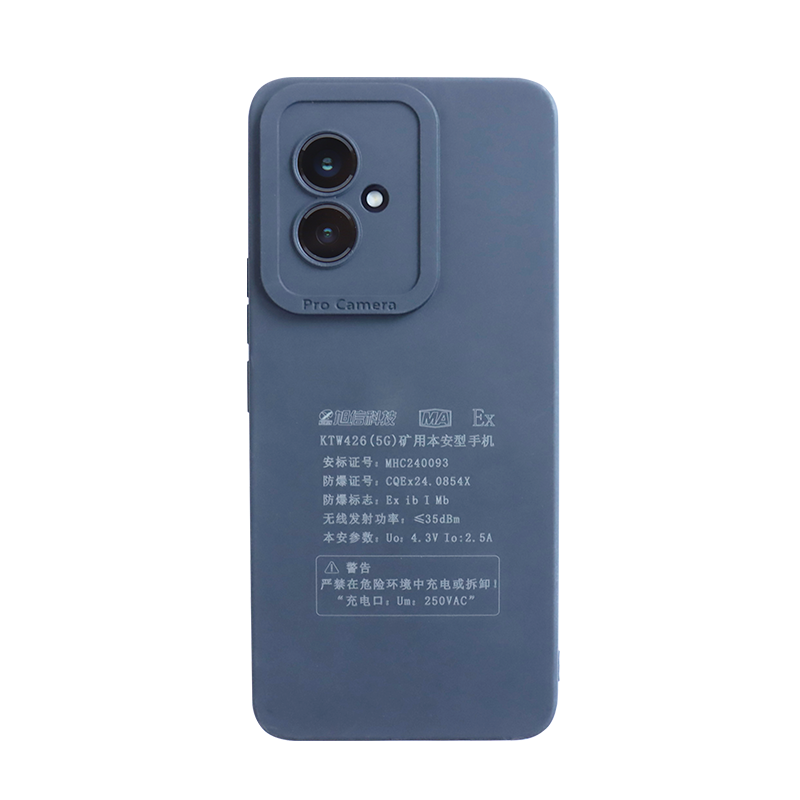

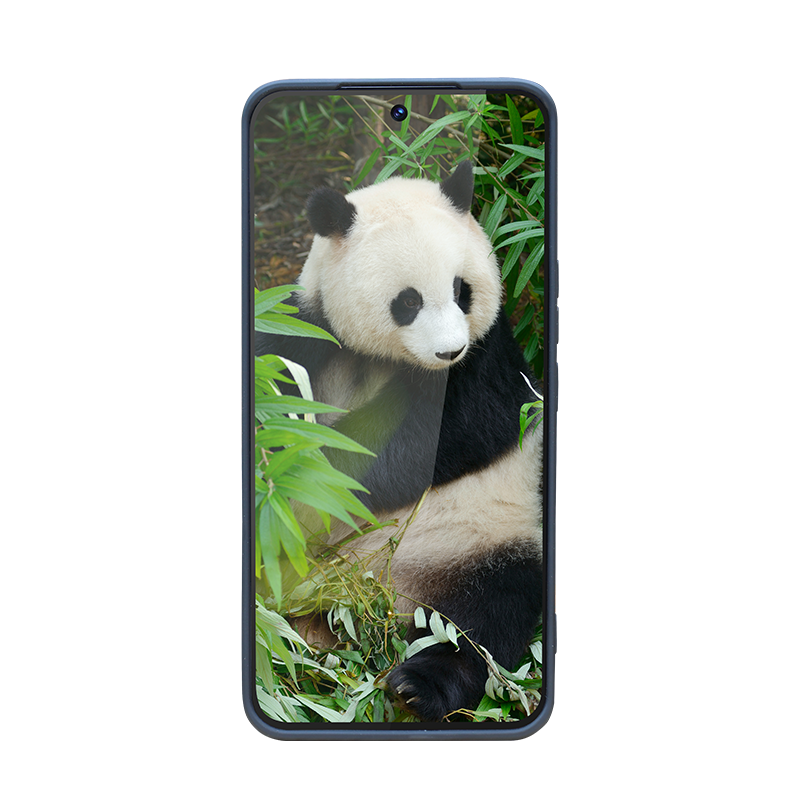

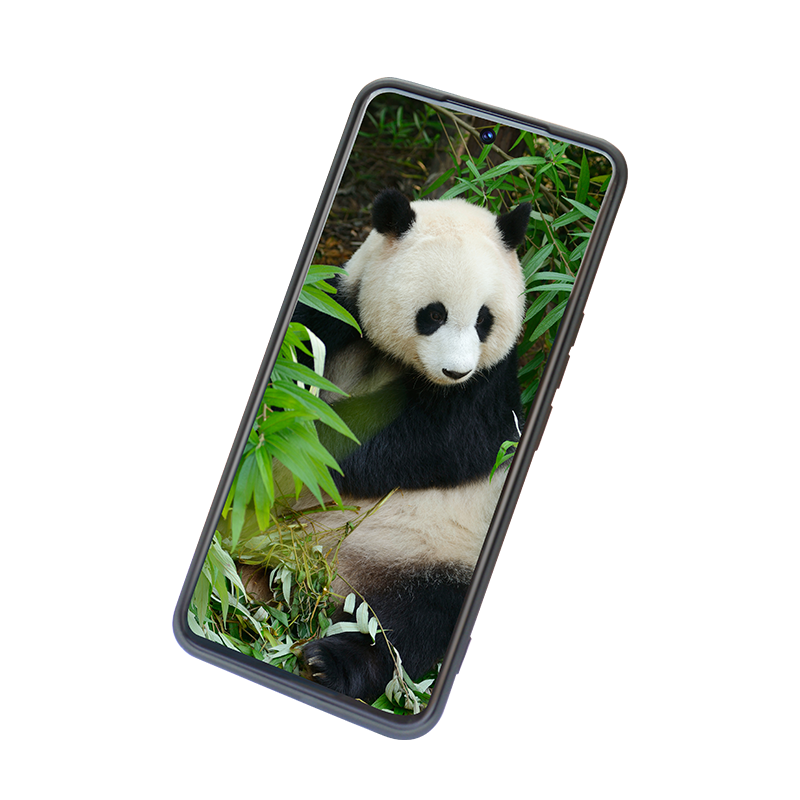

Detail photos of Ultra Thin Rugged Phone
Product parameters of Ultra Thin Rugged Phone
| Explosion proof type | Intrinsically Safe |
| Explosion proof mark |
Ex ib ⅡC T4 Gb Ex ib ⅢC T130℃ Db |
| Network standard |
5G/4G+/4G/3G, Mobile 5G/4G+/4G, Telecom 5G/4G+/4G; 5G network standard: Main card/Sub card: Mobile 5G (NR)/Unicom 5G (NR)/Telecom 5G (NR) 4G network standard: Main card/Sub card: Mobile 4G (TD-LTE)/Unicom 4G (TD-LTE/LTE FDD)/Telecom 4G (TD-LTE/LTE FDD) 3G network standard: primary/secondary card: China Unicom 3G (WCDMA) 2G network standard: primary card/secondary card: Mobile 2G (GSM)/Unicom 2G (GSM) |
| CPU model | Zhanrui T760 |
| Number of CPU cores | Eight nuclei |
| CPU clock speed | 4 x2.4GHz (Cortex A76)+ 4x 2GHz (Cortex A55) |
| Operating system | MyoS 13 (based on Android 13) |
| Screen size | 6.56 inches |
| Screen aspect ratio | 20:9 |
| Screen resolution | HD+720 * 1612 pixels |
| Screen color | 16.7M color |
| Screen type | LCD |
| Front camera pixels | Front facing single camera: 5 million pixels |
| Photo resolution | Maximum support for 4656 × 3496 pixels |
| Camera resolution | Maximum support for 1080 × 1920 pixels |
| Shooting function | Intelligent beauty, video recording, portrait |
| Camera aperture | f/2.4 |
| Zoom mode | 4x digital zoom, 20x digital zoom |
| Focus Mode | Fixed focal length |
| Rear camera | pixels Rear dual camera: 13 megapixel main camera+2 megapixel support for autofocus |
| Photo resolution | Maximum support for 9248 × 6944 pixels |
| Camera resolution | Maximum support for 3840 × 2160 pixels |
| Focus Mode | Support autofocus |
| Rear flash | Rear dual LED flash |
| Shooting function | AI beauty shooting, wide-angle, night view mode, portrait mode, photography, professional photography, video recording, super macro, panoramic, HDR, time-lapse photography, slow motion, large aperture, filters, etc |
| Size | 163.65*74.90*12.39mm |
| Weight | About 207 grams |
| SIM card | Nano card+Nano card |
| Data cable interface | USB Type-C，USB 2.0 |
| Headphone jack | Support 3.5mm simulation |
| WLAN protocol | WIFI 802.11 a/b/g/n/ac |
| WLAN frequency | 2.4GHz and 5GHz |
| Bluetooth | Bluetooth 5.0, supports low-power Bluetooth, SBC, AAC |
| OTG | support |
| NFC | support |
| Location | Cellular network positioning, WLAN network positioning, integrated positioning (optional single Beidou) |
| Key | 2 (volume key, power key) |
| Environmental light sensor | support |
| Proximity light sensor | support |
| Fingerprint sensor | Support (side fingerprint) |
| Accelerometer | support |
| Running memory | 8GB (see phone for specific memory) |
| Body storage | 256GB (see phone for specific memory) |
| Battery | 5000 mAh |
| Temperature | -20℃～+50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Applicable places | Can be used in Zone 1 and Zone 2, Class IIA, IIB, and IIC gas environments, and can also be used in combustible dust environments. |
| Protection level | IP54 |
