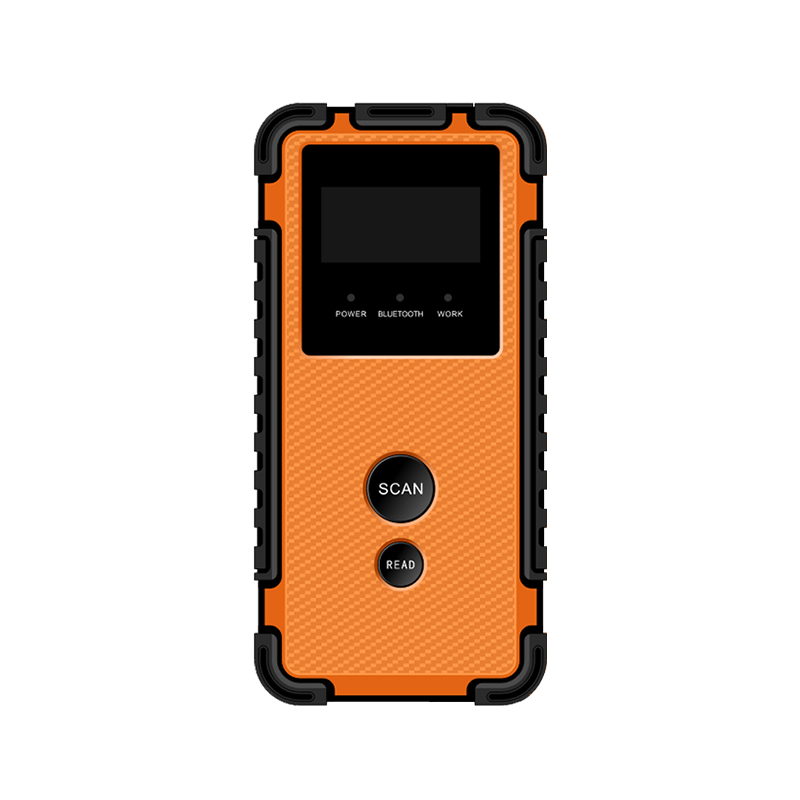

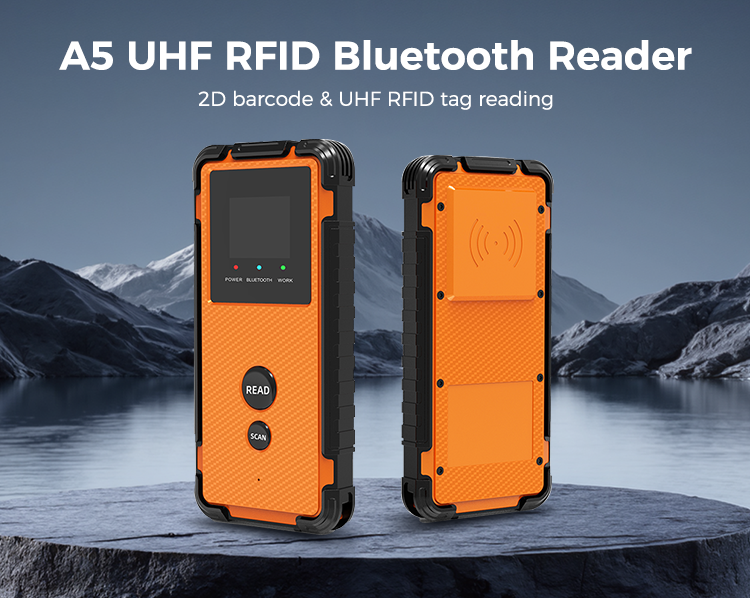

A5 Bluetooth UHF RFID Reader
The A5 is a compact, rugged Bluetooth 5.1 UHF RFID reader with an orange TPU+ABS+PC body. It supports multi-region UHF frequencies (CN 920-925MHz, US 902-928MHz, EU 865-868MHz) with 0-2m reading distance, plus a 2D scan engine for diverse barcodes. Equipped with a Type-C interface and 5600mAh battery, it offers 14h working/360h standby time, fully charging in <6h. With IP65 protection and -20℃~45℃ operating temp, it’s ideal for inventory, logistics, and asset tracking.
Product Description
Introduction of A5 Bluetooth UHF RFID Reader
The A5 is a compact, rugged Bluetooth 5.1 UHF RFID reader with an orange TPU+ABS+PC body. It supports multi-region UHF frequencies (CN 920-925MHz, US 902-928MHz, EU 865-868MHz) with 0-2m reading distance, plus a 2D scan engine for diverse barcodes. Equipped with a Type-C interface and 5600mAh battery, it offers 14h working/360h standby time, fully charging in <6h. With IP65 protection and -20℃~45℃ operating temp, it’s ideal for inventory, logistics, and asset tracking.
Feature of A5 Bluetooth UHF RFID Reader
1）Simple, light and stable：The device adopts a light and simple body design, making the device moreportable and providing greaterfexibilily and convenience for business use. Atthe same time, the device uses sturdy and durable materialsand body structure.which caneffectively resist challenges in different environments.
2）Excellent RFlD reading and writing performance：The built-in high-performance UHF antenna module enables it to have fastreading and writing speeds andhigh recoanition rates. lt also supports multi-taareading capabilities with a reading speed of 200Tag/S. Thedevice has stronganti-interference capabilities, high structural stability, and high reliability.

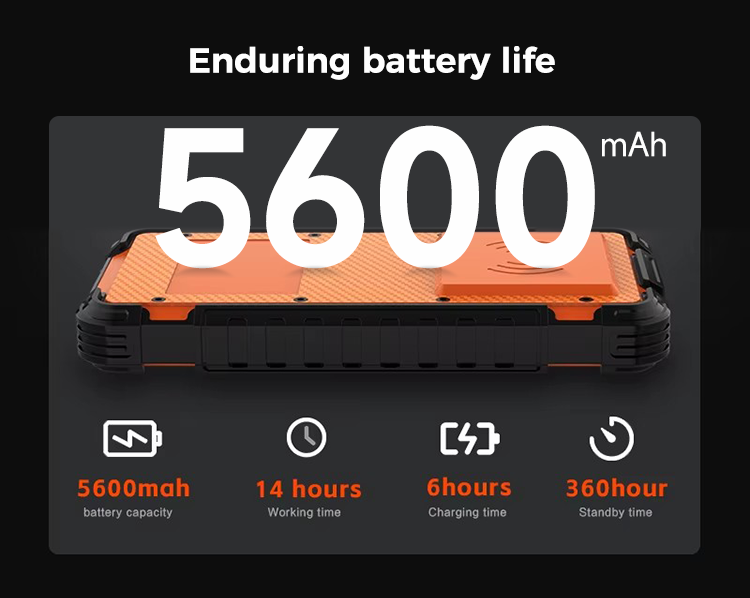

3）Large-capacity battery：The device has a built-in 5600mAh polymer lithium battery, which can providelonger battery life.lt can meetlong-term operation needs.

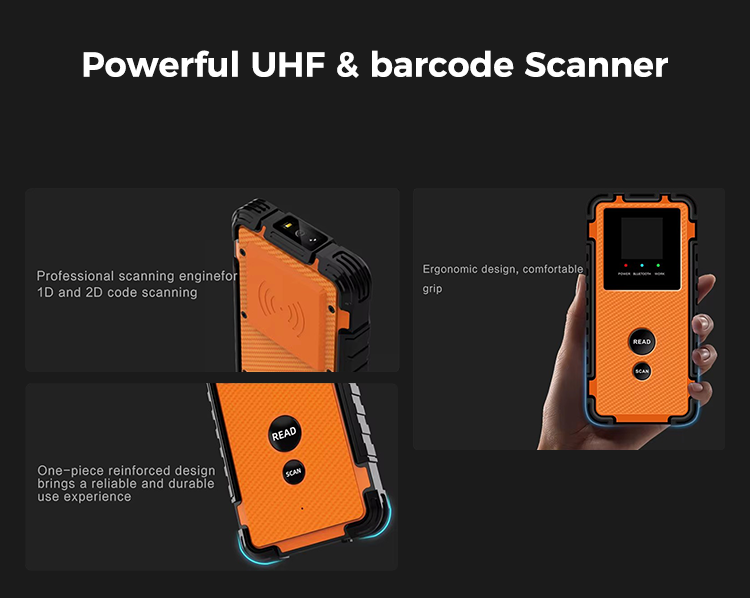

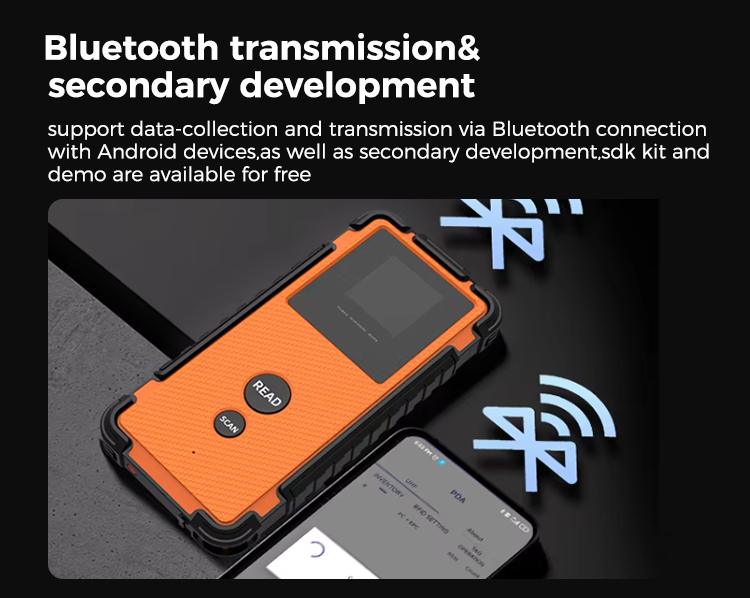

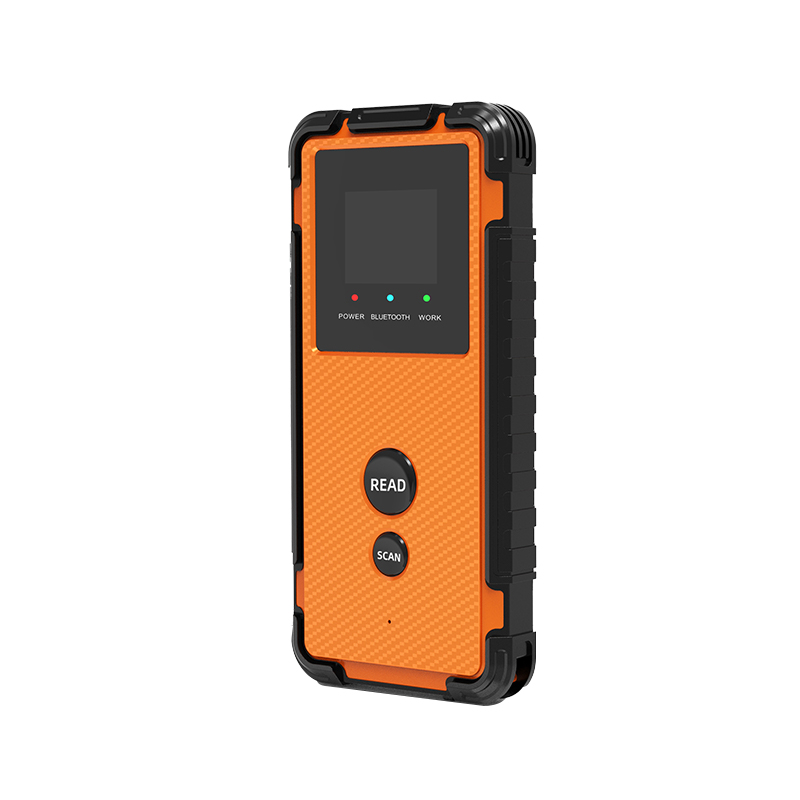

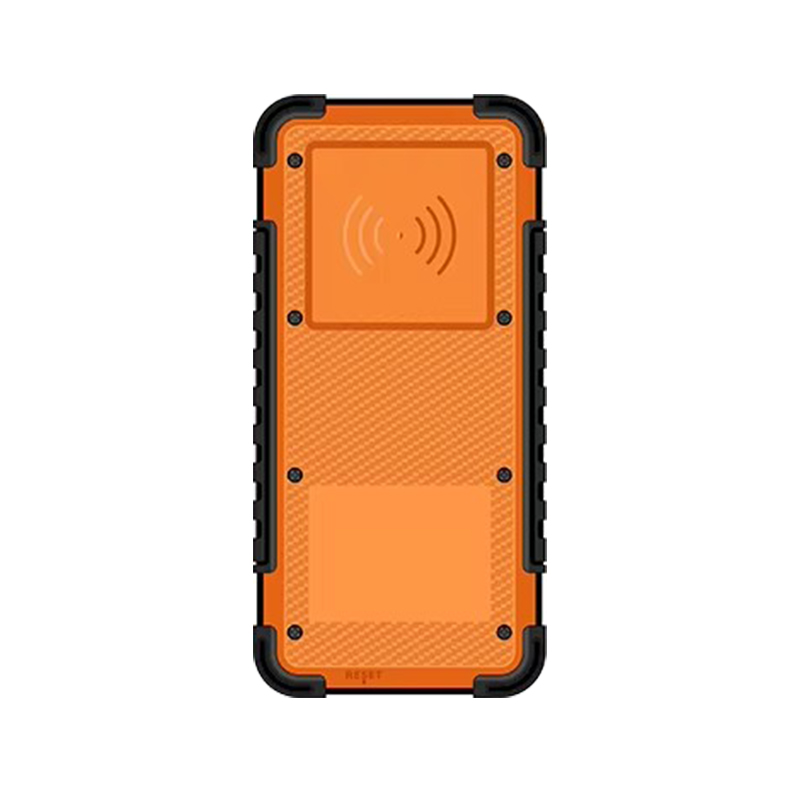

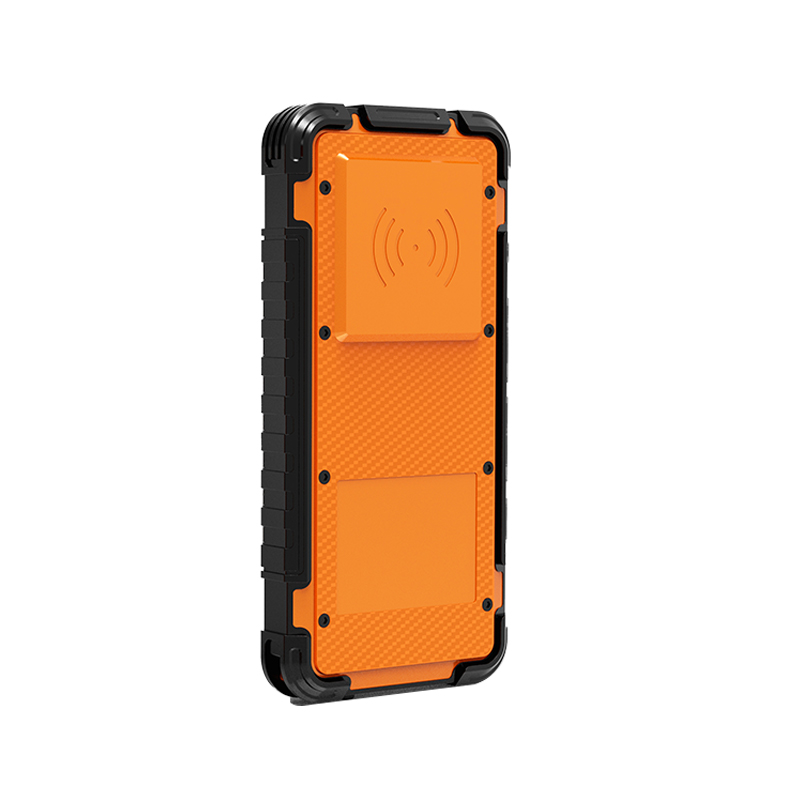

Detail photos of A5 Bluetooth UHF RFID Reader

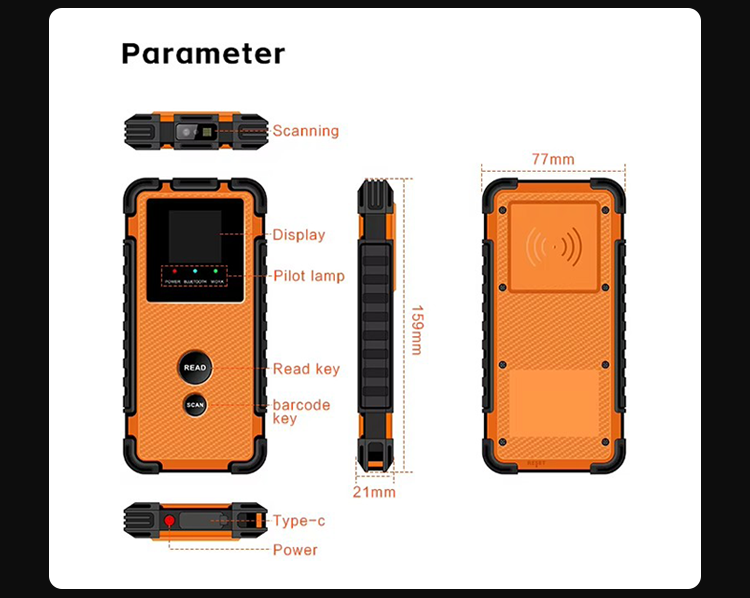

Product parameters of A5 Bluetooth UHF RFID Reader
| Basic Parameter | |
| Dimension | 159x77x21+2mm |
| Weight | 254g |
| Color | Orange |
| Material | TPU+ABS+PC |
| Interface | Type-c |
| Indicatorlight | Battery,Bluetooth,working |
| Bluetooth | Bluetooth 5.1 |
| Button | Scanbutton,powerbutton |
| Data Collection | |
| RFID | UHF RFlD readomg dostance 0-2meter |
| Frequency |
CN920MHZ-925MHZ US902MHZ-928MHZ EU865MHZ-868MHZ |
| Barcode | 2D scan engine |
| Imager code tyoe | PDF417,MicroPDF417,Composite,RSs, TLC-39,Datamatrix, QR codeMicro OR code, Aztec, MaxiCode, Postal Codes,US PostNet,Us Planet,UK Postal, Australian Postal,Japan Postal, Dutch Postal etc. |
| Physical Parameter | |
| Battery | 5600mAh |
| Charging method | Type-C interface |
| Standbytime | 360hours |
| Chargingtime | Within 6hours |
| Working time | About14 hours(full charged) |
| Usage environment | Working temp-20℃~45℃ |
| Charging temp | 10℃~45℃ |
| Storage temp | -20℃~70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |

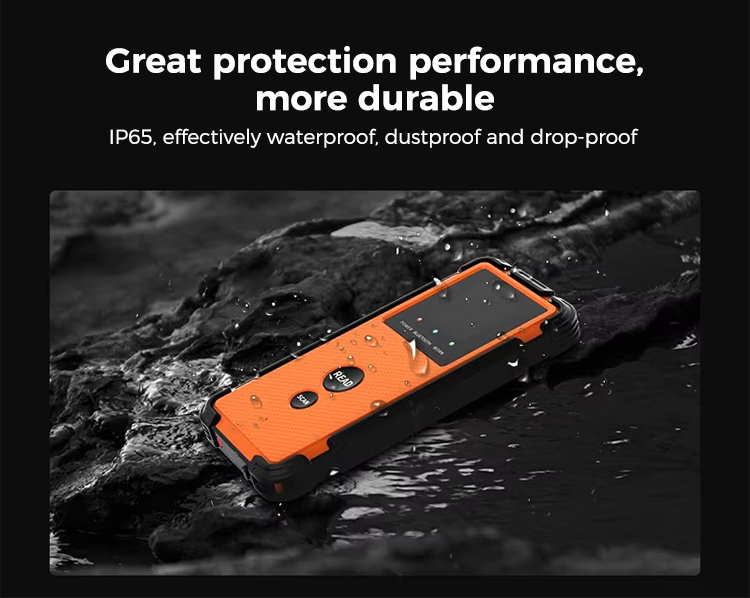

| Protection level | IP65 |
FAQ about A5 Bluetooth UHF RFID Reader
Q1: What is the reading distance of the A5's UHF RFID function?
A1: The A5 supports a UHF RFID reading distance of 0-2 meters, enabling efficient data capture for items within this range in various application scenarios.
Q2: Which frequency bands does the A5 UHF RFID reader support?
A2: It is compatible with three key regional frequency bands: CN 920MHz-925MHz, US 902MHz-928MHz, and EU 865MHz-868MHz, adapting to different market requirements.
Q3: What types of barcodes can the A5 scan?
A3:The integrated 2D scan engine supports a comprehensive range of barcode types, including PDF417, MicroPDF417, Composite, RSS, TLC-39, DataMatrix, QR Code, Micro QR Code, Aztec, MaxiCode, and global postal codes (US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal, etc.).
Q4: How long is the battery life of the A5, and how long does it take to charge?
A4:With a 5600mAh battery, the A5 provides approximately 14 hours of continuous working time (when fully charged) and 360 hours of standby time. Charging via the Type-C interface takes less than 6 hours to reach full capacity.
Q5:What is the protection level and operating environment of the A5?
A5: The device features an IP65 protection rating (dustproof and water-resistant). It operates reliably in temperatures ranging from -20℃ to 45℃, charges in 10℃~45℃, and can be stored in -20℃~70℃. It also supports a humidity range of 5%RH to 95%RH (non-condensing), suitable for harsh industrial or outdoor environments.
