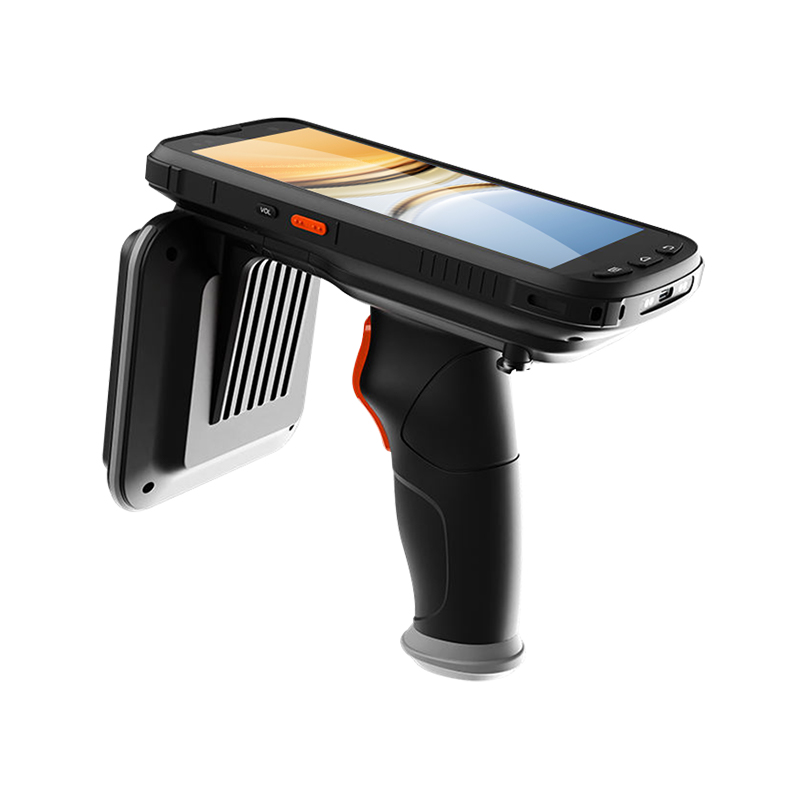

BX6100 Android RFID Handheld Barcode Scanner
The BX6100 android RFID handheld barcode scanner, powered by an octa-core 2.0GHz CPU and Android 10.0, boasts 4GB RAM/64GB ROM (expandable to 256GB). Equipped with a 5.5'' FHD display, 9,000mAh battery (12+ hours of use), and advanced UHF RFID reader (0-20m range, 200 tags/sec), it supports 4G/Wi-Fi/Bluetooth/GPS. With dual cameras, multiple ports (PSAM/SIM/TF), and a quadrifilar helical antenna, it excels in outdoor and industrial applications.
Product Description
Introduction of BX6100 Android RFID Handheld Barcode Scanner
The BX6100 android RFID handheld barcode scanner, powered by an octa-core 2.0GHz CPU and Android 10.0, boasts 4GB RAM/64GB ROM (expandable to 256GB). Equipped with a 5.5'' FHD display, 9,000mAh battery (12+ hours of use), and advanced UHF RFID reader (0-20m range, 200 tags/sec), it supports 4G/Wi-Fi/Bluetooth/GPS. With dual cameras, multiple ports (PSAM/SIM/TF), and a quadrifilar helical antenna, it excels in outdoor and industrial applications.
Feature of BX6100 Android RFID Handheld Barcode Scanner
1) Industry-leading, high-speed octa-core CPU
Based on TSMC's leading 12nm process technology, the high-speed octa-core CPU offers advanced features andexceptional performance, allowing it to run a wide range of applications at lightning speed.

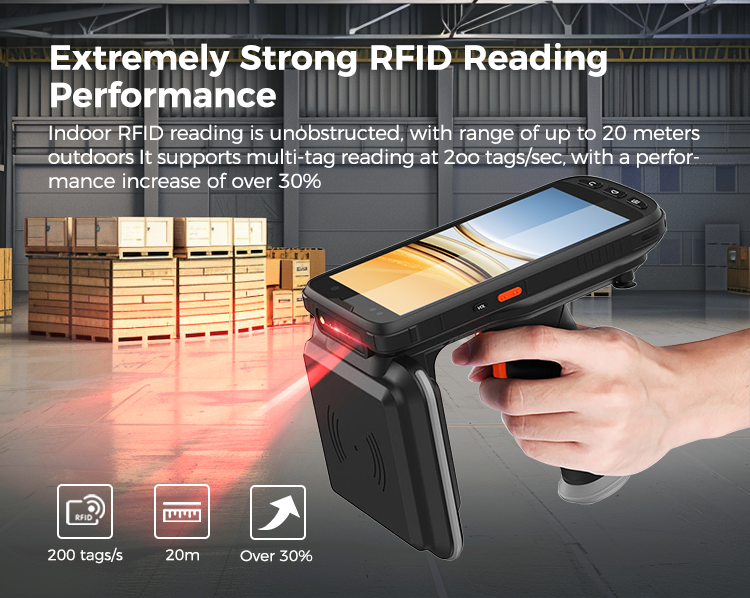

2) Excellent RFlD read/write performance and extended range
RFID offers unobstructed indoor reading and up to 20 meters in open outdoor environments. lt also supports multi-taggroup reading at a rate of 200 tags/second, enabling a complete read of 2.000 tags in approximately 10 seconds, improving RFlD perfomance by over 30%.
3) Large-capacity battery for longer battery life
The device's built-in 9,000mAh high-capacity battery provides over 12 hours of continuous operation, meeting therequirements oflong-tem outdoor operation.
4) New-generation developed quadrifilar helical antenna for enhanced performance
This antenna features lightweight, compact size, narrow beamwidth, high gain, low standing wave pattems, excellentdirectional alignment, superior omnidirectional reading performance, and strong ani-interference capabilities.

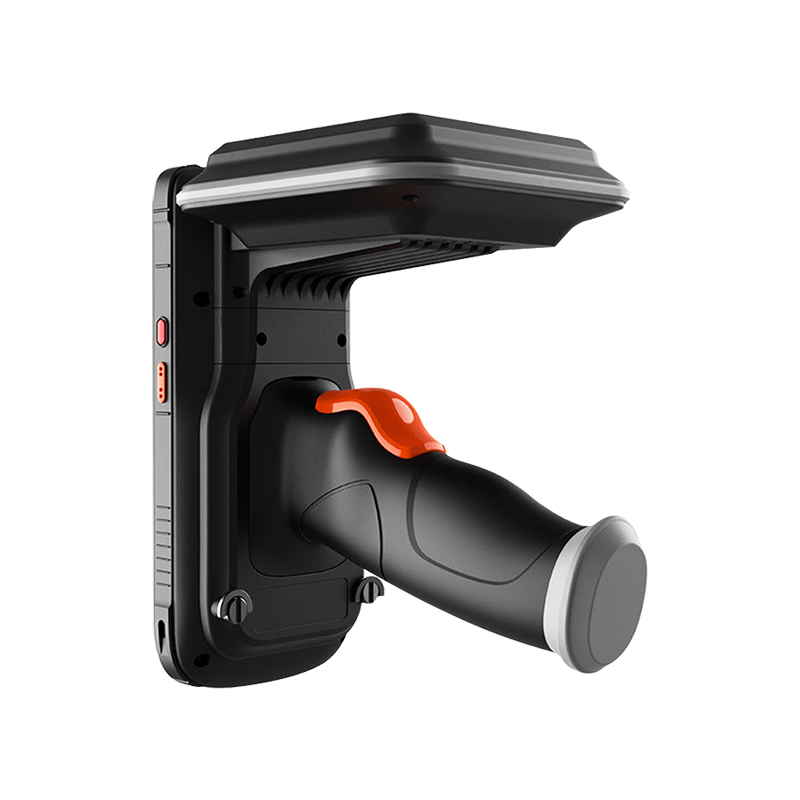

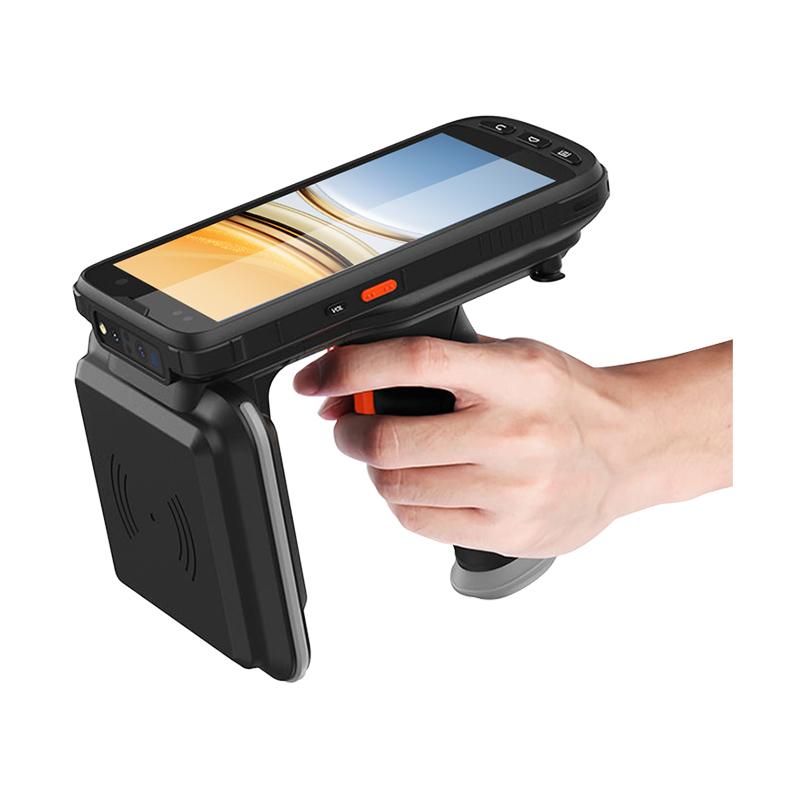

Detail photos of BX6100 Android RFID Handheld Barcode Scanner
Product parameters of BX6100 Android RFID Handheld Barcode Scanner
| Physical Parameter | |
| Dimension | 166x79x31±2mm |
| Weight | 650g |
| Display screen | 5.5'' IPS FHD 720x1440 |
| 1Expand port | 2 PSAM, 1SIM, 1 TF |
| Communication interface | Type-C |
| Battery capacity | Rechargeable li-ion polymer,3.8V, 9000mAh |
| Performance Parameter | |
| CPU | Octa core 64bit processor, 2.0 GHz |
| Operating System | Android 10.0 |
| Storage | 4 RAM/64GB ROM, MicroSD(max 256GB expansion) |
| Development Environment | |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Data Communication | |
| WWAN |
4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20 3G: WCDMA( 850/1900/2100MHz) 2G: GSM/GPRS/Edge((850/900/100//1900MHz) |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| WPAN | Bluetooth-v4.0 |
| GPS | GPS(AGPS),BeiDou,accuracy of 10 m |
| Camera | Front 500W Rear 1300W autofocus camera, matching automatic flash, support flashlight mode. |
| RFID Reader | |
| RFID UHF | Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol: EPC C1 GEN2/ISO 18000-6C | |
| Antenna Gain: Circular antenna(4dBi) | |
| R/W Range: 0-20 m(tags and environment dependent) | |
| Accessories | |
| Standard | 1xLithium Polymer Battery , 1x Power adapter, 1xType-C charging cable |

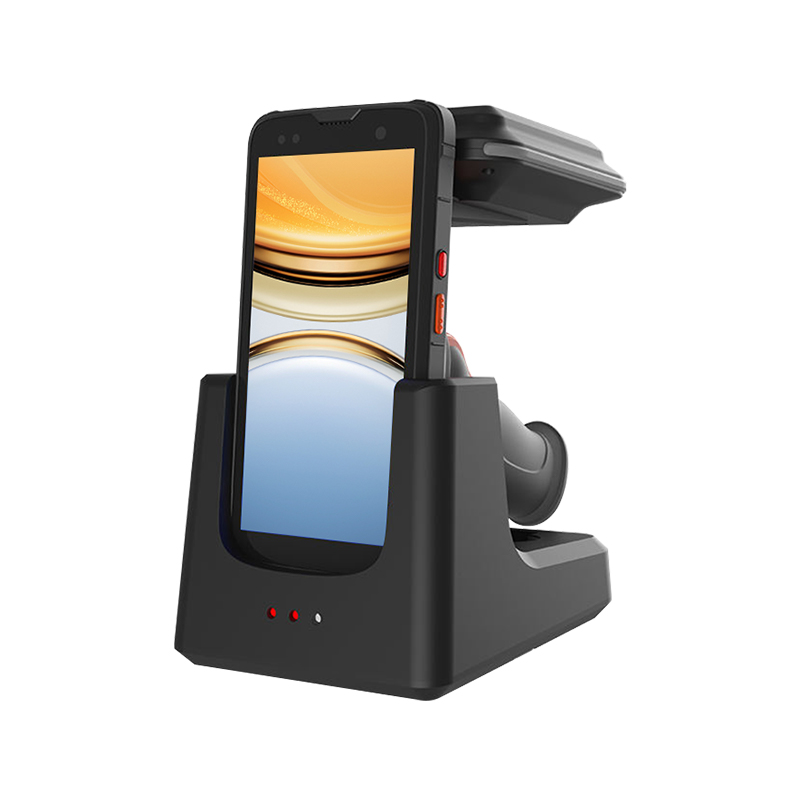

| Optional | Charging base |
FAQ about BX6100 Android RFID Handheld Barcode Scanner
Q1: What’s the BX6100’s battery life?
A1: It offers over 12 hours of continuous operation via a 9,000mAh rechargeable battery.
Q2: What RFID performance does it deliver?
A2: Reads up to 20m, 200 tags/sec, supporting 2,000 tags read in ~10 seconds.
Q3: What’s the storage capacity?
A3: 4GB RAM/64GB ROM, expandable to 256GB via MicroSD.
Q4: Which OS and processor does it use?
A4: Android 10.0 and an octa-core 64bit 2.0GHz CPU.
Q5: What communication options are available?
A5: It supports 4G, dual-band Wi-Fi (2.4G/5G), Bluetooth 4.0, and GPS/BeiDou.
