C6100 Barcode Scanner Handheld RFID Reader
The C6100 is a high-performance barcode handheld terminal with an octa-core, 4GB RAM+64GB ROM, and 5.5-inch tough TFT-LCD. It supports 4G/Wi-Fi/Bluetooth, 2D barcode scanning, optional RFID and PSAM. With an 8000mAh battery, IP65 rating, it excels in harsh environments, ideal for logistics, retail, and field work.
Product Description
Introduction of C6100 Barcode Scanner Handheld RFID Reader
The C6100 is a high-performance barcode handheld terminal with an octa-core, 4GB RAM+64GB ROM, and 5.5-inch tough TFT-LCD. It supports 4G/Wi-Fi/Bluetooth, 2D barcode scanning, optional RFID and PSAM. With an 8000mAh battery, IP65 rating, it excels in harsh environments, ideal for logistics, retail, and field work.
Feature of C6100 Barcode Scanner Handheld RFID Reader
1)Industry-leading high-speed octa-core CPU
Based on TSiMC's leading 12nm process technology, the high-speed octa-core CPU offers advanced features and exceptional performance, allowing it to run a wide range of applications at lightning speed.
2)Excellent RFlD read/write performance and extended read range
RFlD offers unobstructed indoor reading and up to 20 meters in open outdoor environments. it also supports multi-tag group reading at a read rate of 200 tags/second, enabling a complete read of 2,000tags in approximately10 second,sim proving RFID performance by over 30%.
3)Large-capacity battery for longer battery life
The device's built-in 8000mAh high-capacity battery provides over 12 hours of continuous operation.Meeting the requirements of long-term outdoor operation.
4)New-generation developed quad rifilar helical antenna for enhanced performance
This antenna features lightweight, compact size, narrow beam width, high gain, low standing wave patterns.excellent directional alignment, superior omnidirectional reading performance, and strong anti-interference capabilities.

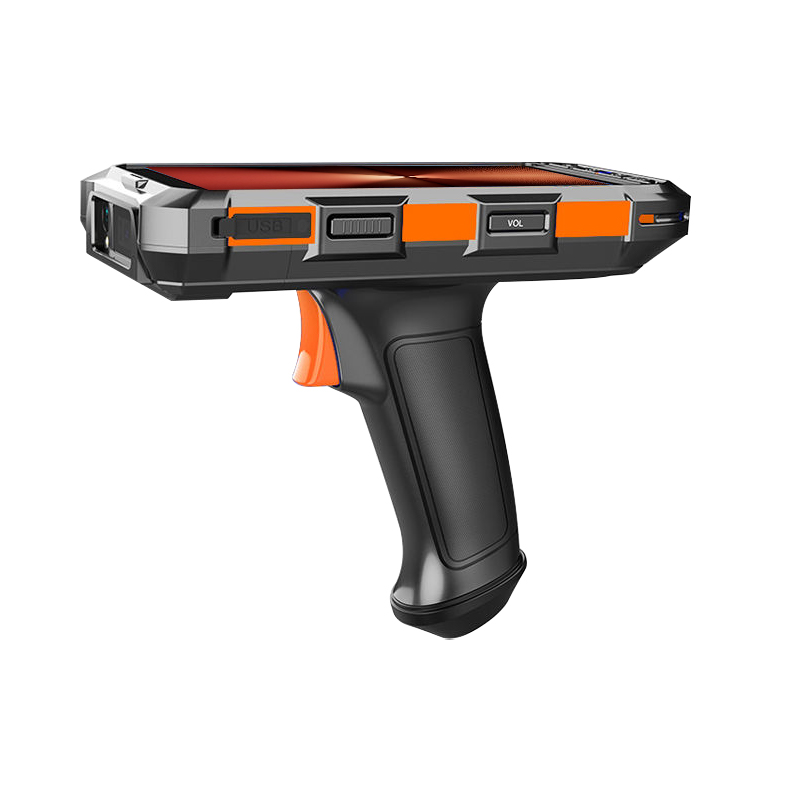

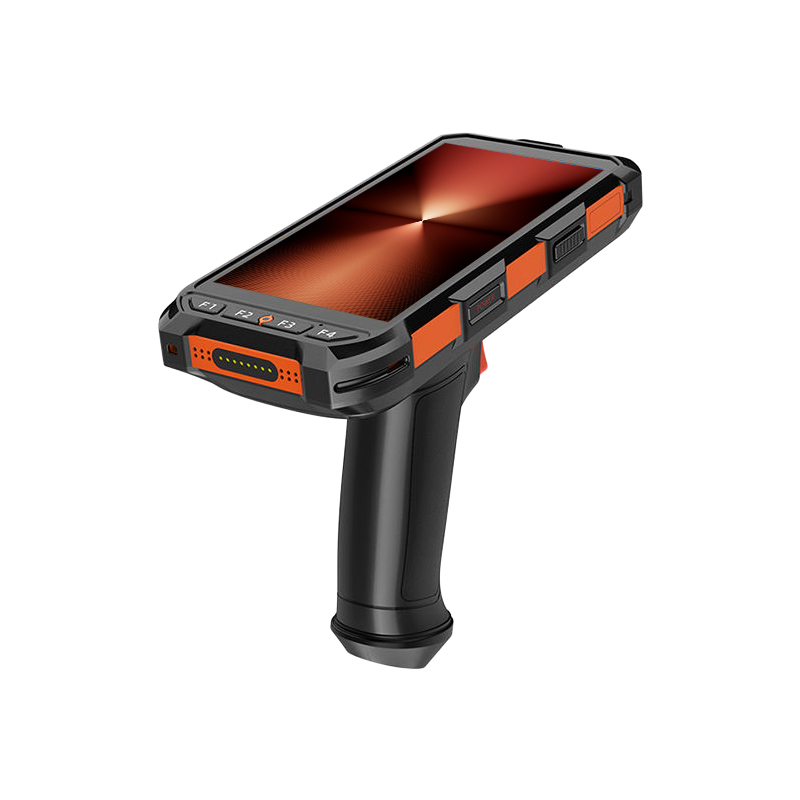

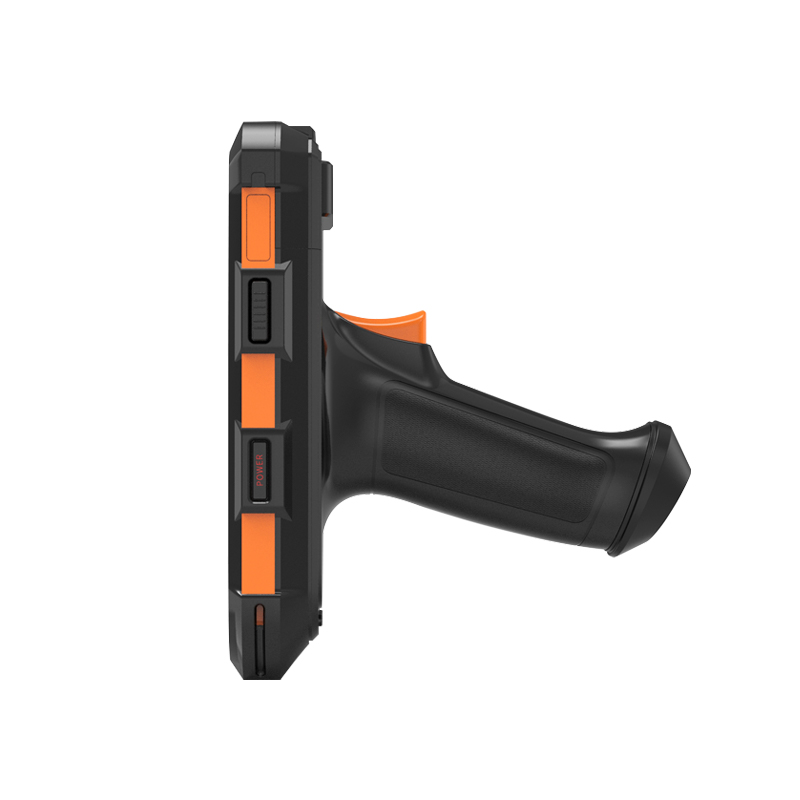

Detail photos of C6100 Barcode Scanner Handheld RFID Reader
Product parameters of C6100 Barcode Scanner Handheld RFID Reader
| Basic Parameter | |
| Overall size | 170 x80 x 28 + 2mm(without the pistol grip and uHF shield) |
| Overall weight | 650g |
| Display sereen | Tough 5.5in.TFT-LCD(720*1440) |
| Touch screen | Support capacitive pen multi-touch |
| Expansion slot | 1 TF slot, 2 PSAM,2 Sim |
| Interface | Type-c data interface |
| Indicator lamp | Charge indicator lamp |
| Keyboard | F1-F4 custom keys/2 scan keys |
| Camera Front camera | 5MPRear camera 13 MP |
| Flashlight | Low powerLED lighting emergency use |
| GPS | GPS(embedded A-GPS)accuracy of 10 m |
| Performance Parameter | |
| CPU | Cortex A73,2.0GHz Octa-core |
| Storage | RAM:4GB ROM:64GB |
| Extended | Support MicroS ( max 256GB expansion ) |
| OS | Android 10/13 |
| Data Communication |
4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7.17,20 3G:WCDMA(850/1900/2100MHz) 2G:GSM/GPRS/Edge(850/900/1800/1900MHz) |
| WIFI | 2.4G/5G dual band.Comp;iance withIEEE802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 4.2 |
| Development Environment | Handheld-Wireless Software Development Kit |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Battery Performance | |
| Battery | capacity 8000mAh,Rechargeableli-ion polymer,3.8V |
| Standby time | About 720 hours after turn off all functions |
| Charging time | Less than 6 hours |
| Working hours | More than 14 hours (one full charge) |
| Barcode Acquisition(optional) | |
| Scan engine |
2D barcode Scanner Supports 2D barcodetypes All major 1D barcode PDF417.MicroPDF417, Composite,RSS,TLC-39. Datamatrix,QR code, MicroQR code,Aztec,MaxiCode.Postal Codes,US PostNet,US Planet. UK Postal. AustralianPostal,Japan Postal, Dutch Postal etc. |
| RFID (optional) | |
| RFID NFC |
Frequency 13.56MHZ ProtocollS014443A/BIS015693,NFC-IP1,NFC-IP2,etc. R/w Range 0cm to 3cm |
| RFID UHF |
Frequency 865~868MHz or 920~925MHZ RFID UHF Protocol EPCC1GEN2/IS018000-6C Antenna Gain Circular antenna(4dBi) R/w Range 0 to 20m(tags and environment dependent) |
| Psam (optional) | |
| Protocol | IS07816 |
| Baudrate | 9600,19200,38400,43000, 56000,57600,115200I |
| Slot | 2 slots(maximum) |
| ACCESSORIES | |
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable |
| Optional | Cradle |
| USER ENVIRONMENT | |
| Operating Temp | -20℃ to 50℃ |
| Storage Temp | -20℃ to 70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |
| IP | rate IP65 |
FAQ about C6100 Barcode Scanner Handheld RFID Reader
Q1: What’s the C6100’s battery life and capacity?
A1: It has an 8000mAh rechargeable battery, supporting over 14 hours of working time and 720 hours of standby.
Q2: Does the C6100 support RFID functionality?
A2: Yes, optionally NFC (13.56MHz, 0-3cm) and UHF (865-925MHz, up to 20m), with multi-tag reading (200 tags/sec).
Q3: What’s the device’s operating environment range?
A3: Operating temp: -20℃~50℃; storage: -20℃~70℃; humidity 5%-95%RH (non-condensing), IP65 rated.
Q4: What processor and storage does the C6100 use?
A4: It features a Cortex A73 octa-core 2.0GHz CPU, 4GB RAM, 64GB ROM, and supports up to 256GB MicroSD expansion.
Q5: What communication methods are supported?
A5: It supports 4G (TD/FDD-LTE), 3G/2G, 2.4G/5G Wi-Fi (IEEE802.11a/b/g/n/ac), and Bluetooth 4.2.
