A8 Portable Bluetooth UHF RFID Reader
The A8 is a portable Bluetooth UHF RFID reader featuring a compact design and IP65 sealing for durability. Equipped with BT4.2, a 5600mAh long-lasting battery, and Type-C interface, it supports EPC Class 1 Gen 2 protocol (865-868/920-925/902-928 MHz) with a reading/writing range of up to 20m (tag/environment-dependent). Built to withstand 1.5m drops and operate in -20℃~50℃, it offers Android API support, ensuring reliable performance for diverse professional scenarios.
Product Description
Introduction of A8 Portable Bluetooth UHF RFID Reader
The A8 is a portable Bluetooth UHF RFID reader featuring a compact design and IP65 sealing for durability. Equipped with BT4.2, a 5600mAh long-lasting battery, and Type-C interface, it supports EPC Class 1 Gen 2 protocol (865-868/920-925/902-928 MHz) with a reading/writing range of up to 20m (tag/environment-dependent). Built to withstand 1.5m drops and operate in -20℃~50℃, it offers Android API support, ensuring reliable performance for diverse professional scenarios.
Feature of A8 Portable Bluetooth UHF RFID Reader
1) Simple, light and stable
The device adopts a light and simple body design, making the device moreportable and providing greaterflexibility and convenience for business use. Atthe same time, the device uses sturdy and durable materialsand body structure.which caneffectively resist challenges in different environments
2) long distance RFlD reading and writing performance
The built-in high-performance UHF antenna module enables fast reading andwritingspeed and highrecognition rate. lt also supports reading distance up to 20m. At thesame time, it has the characteristics ofstrong anti-interference ability, highstructural stability and high reliability.
3) Large-capacity battery
The device has a buit-in 5600mAh polymer lithium battery, which can providelonger battery life.it can meetlong-term operation needs.

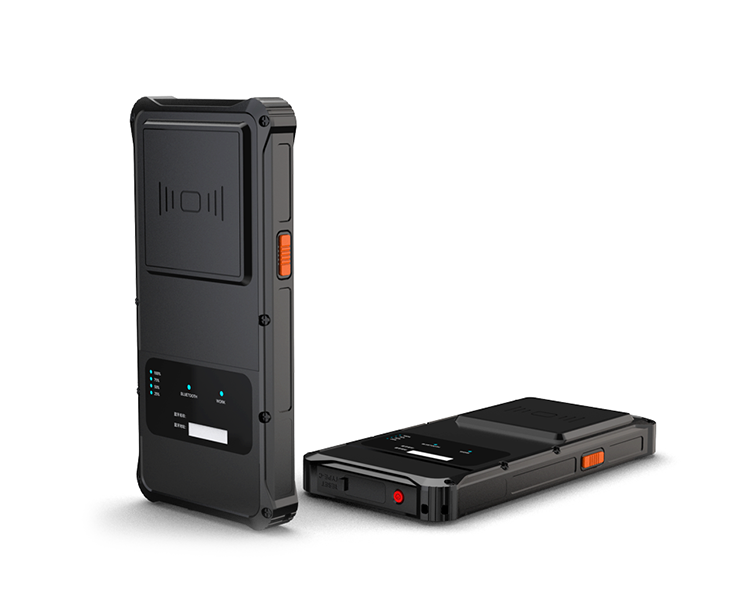

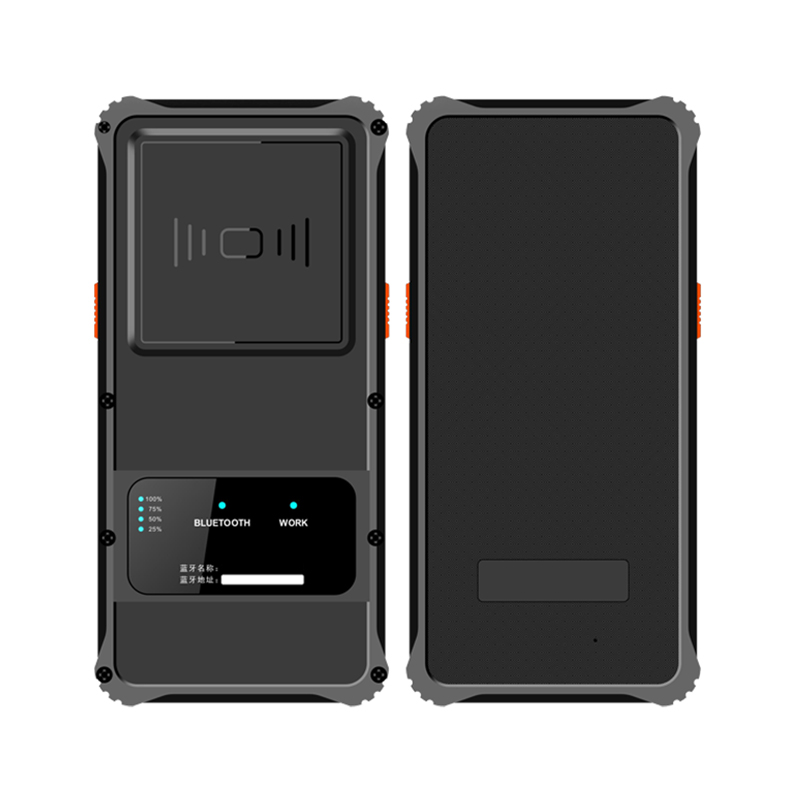

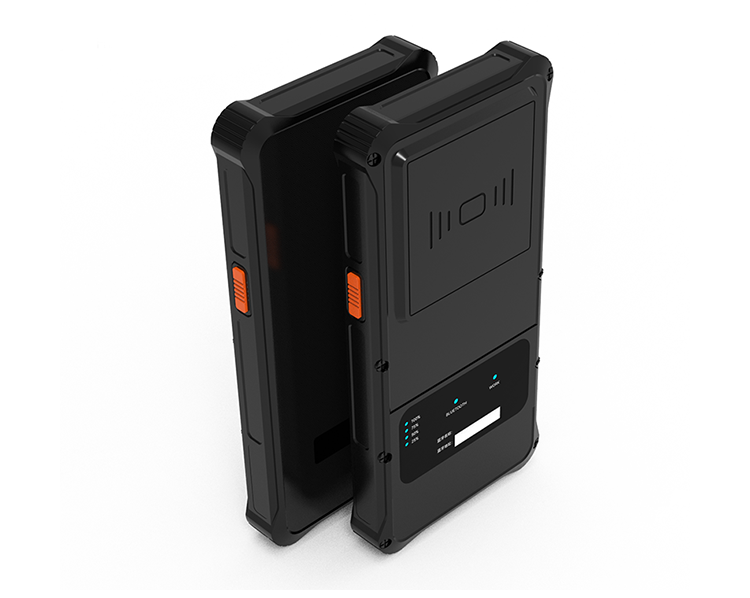

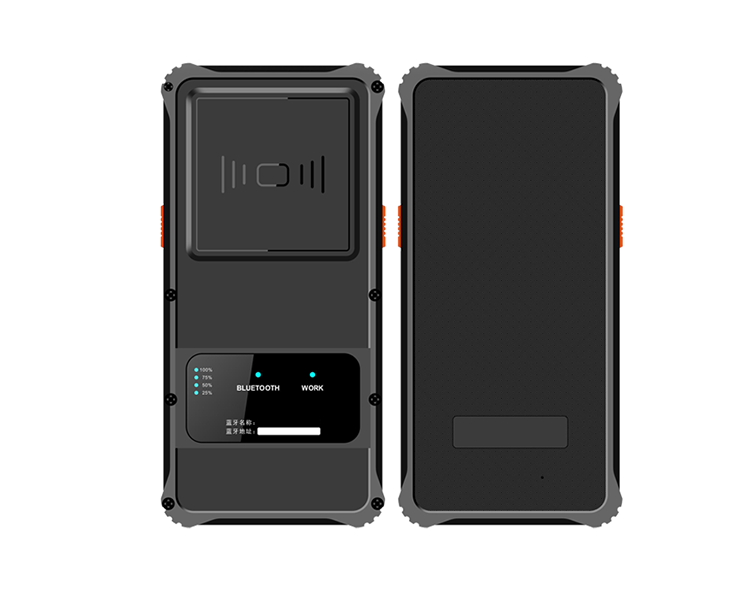

Detail photos of A8 Portable Bluetooth UHF RFID Reader

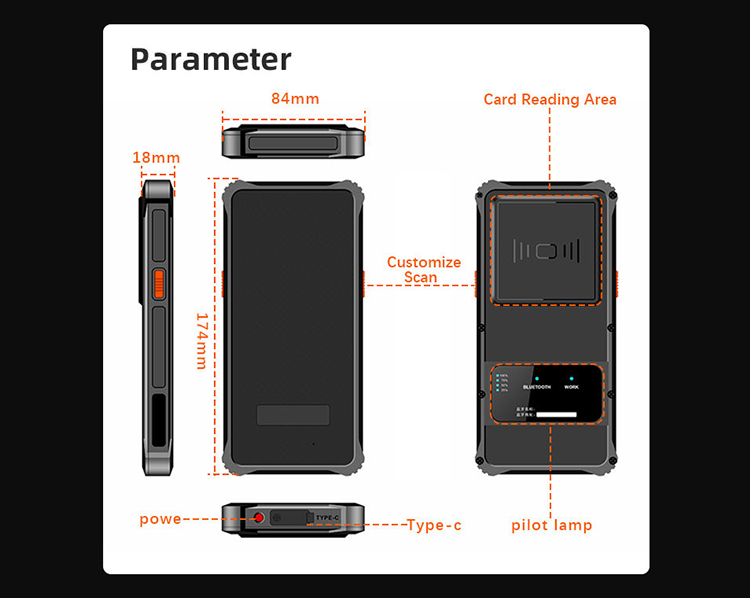

Product parameters of A8 Portable Bluetooth UHF RFID Reader
| Dimension | 174×84×18±2mm |
| Weight | 300g |
| Bluetooth | BT4.2 |
| Battery | 5600mAh |
| Status Alert | Power,Bluetooth,Work |
| Interface | Type-c |
| Protocols | EPC Class 1 Gen 2（ISO 18000-6C) |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| R/W Range | 0-20m(depend on tags and environment) |
| Application software interface | Provide Android API development kits |
| Operating Temp | -20℃ to 50℃ |
| Storage Temp | -20℃ to 70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range |
| Sealing | IP65 |
FAQ about A8 Portable Bluetooth UHF RFID Reader
Q1: What frequency bands does the A8 RFID reader support?
A1: It supports three frequency bands: 865-868 MHz, 920-925 MHz, and 902-928 MHz.
Q2: What is the maximum reading/writing range of the A8?
A2: The maximum range is up to 20m, which may vary based on the type of RFID tags and environmental conditions.
Q3: Is the A8 compatible with Android devices?
A3: Yes, it provides Android API development kits for seamless integration with Android systems.
Q4: What is the battery capacity and durability of the A8?
A4: It has a 5600mAh polymer lithium battery for long-term use, and an IP65 sealing rating plus 1.5m drop resistance for reliability.
Q5: What interface does the A8 use for charging and data transfer?
A5 It adopts a Type-C interface, enabling convenient charging and data transmission.
