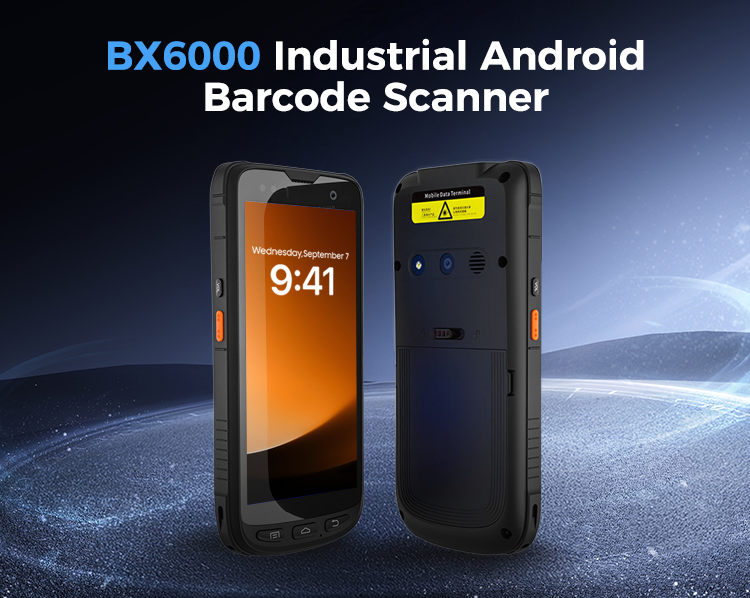

BX6000 Industrial Android Barcode Handheld Terminal
The BX6000 is a high-performance industrial android barcode handheld terminal powered by an octa-core 2.0GHz processor and Android 10.0. It features a 5.5'' IPS FHD display, 4GB+64GB storage (expandable to 256GB), and a 4800mAh battery. Equipped with a high-precision 1D/2D scanning engine, it supports screen/damaged barcodes. With 4G/Wi-Fi/GPS, multiple ports (2PSAM/2SIM/TF), P65 protection, and durable construction, it’s ideal for mobile data capture and processing.
Product Description
Introduction of BX6000 Industrial Android Barcode Handheld Terminal
The BX6000 is a high-performance industrial android barcode handheld terminal powered by an octa-core 2.0GHz processor and Android 10.0. It features a 5.5'' IPS FHD display, 4GB+64GB storage (expandable to 256GB), and a 4800mAh battery. Equipped with a high-precision 1D/2D scanning engine, it supports screen/damaged barcodes. With 4G/Wi-Fi/GPS, multiple ports (2PSAM/2SIM/TF), P65 protection, and durable construction, it’s ideal for mobile data capture and processing.
Feature of BX6000 Industrial Android Barcode Handheld Terminal
1）Leading octa-core processor forenhanced performance.
The high-speed octa-core CPu, built on TSMC's leading 12nm process, boasts advanced features andexceptionalperformance: Experience blazing-fast performance across a widerange of applications.

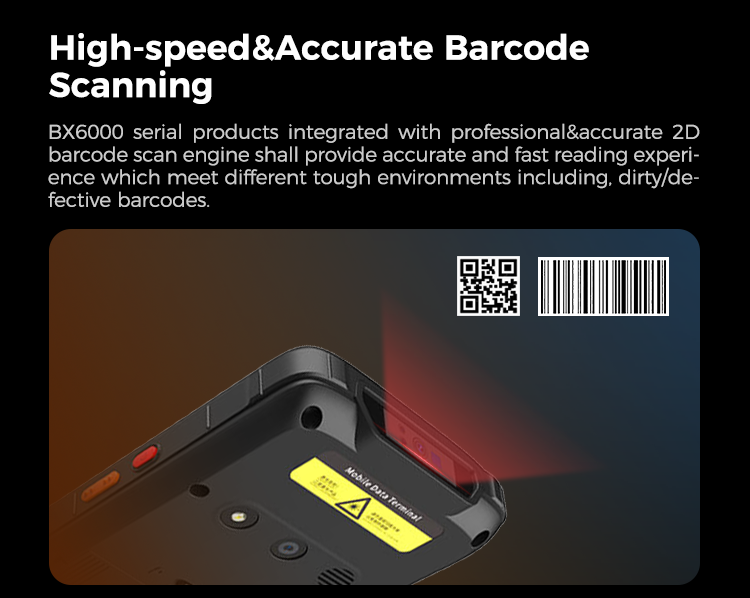

2）Precise scanning, fast, accurate, and stable
The device integrates a high-precision QR code scanning engine for fast and accurate capture of various 1D andQR codes, as well as damaged and bent barcodes, screen codes etc.
3）Advanced protection, high quality, and high reliability.
The device utilizes a PC and plas tic composite process, a built-in high-strengthtitanium-magnesium alloy bracket.and an integrated motherboard design, res ulting in exceptional structural stability.P65 protection further enhancesits reliability, providingoptimal protection for mobile infommation processing.

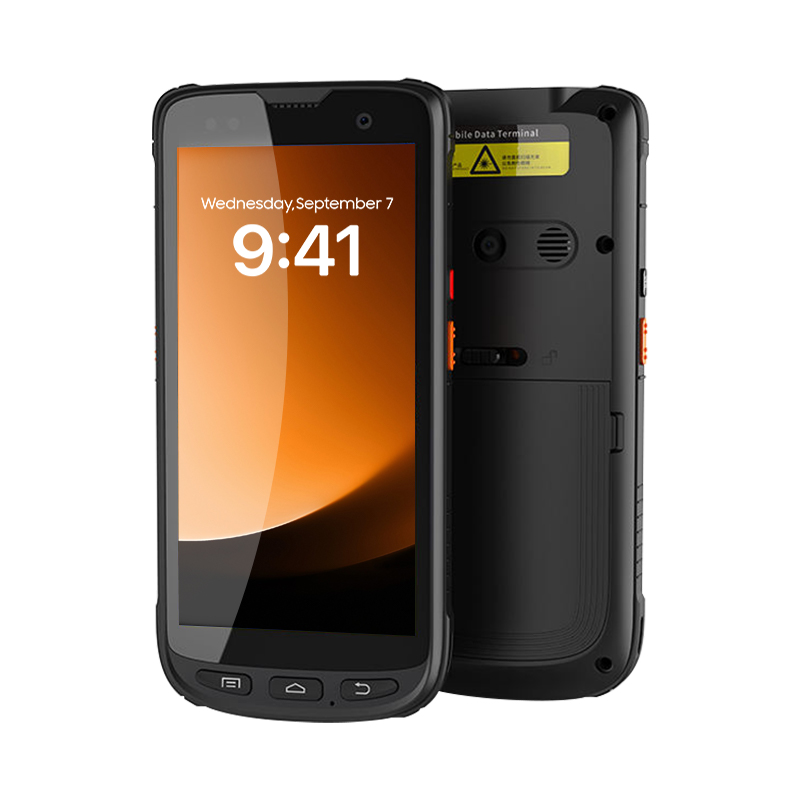

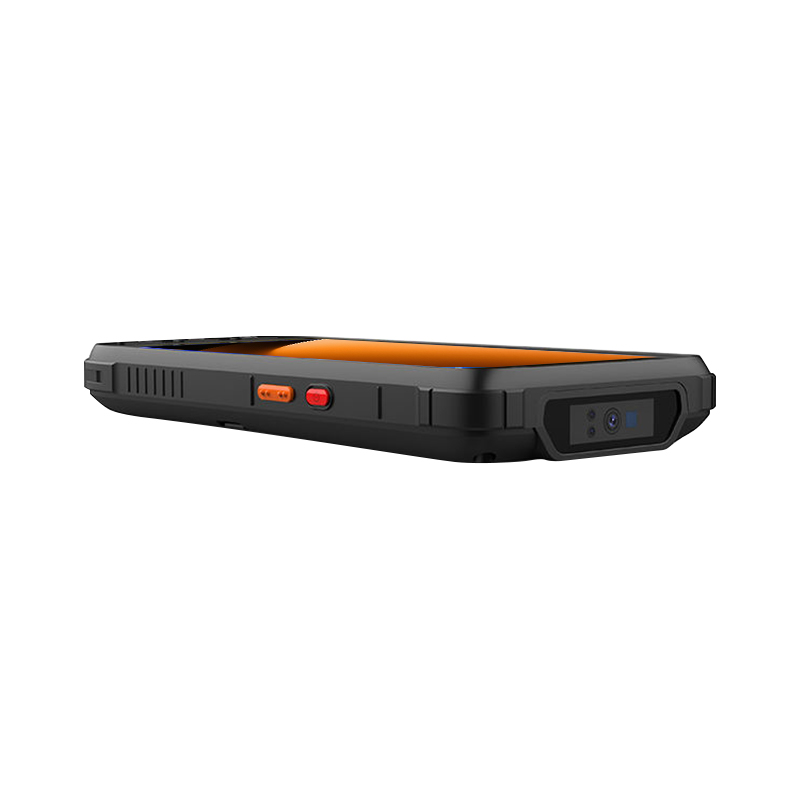

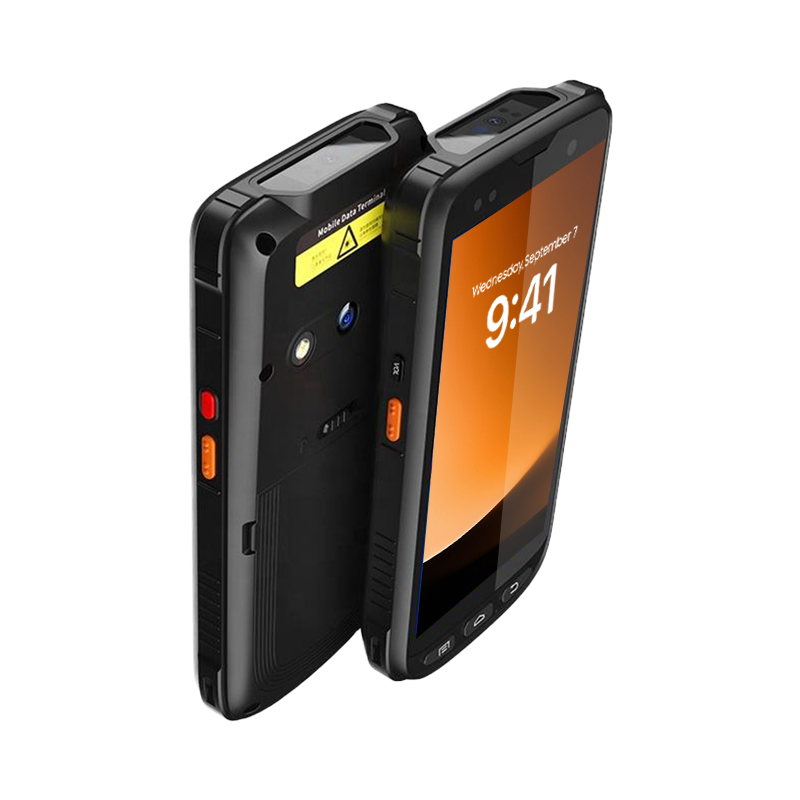

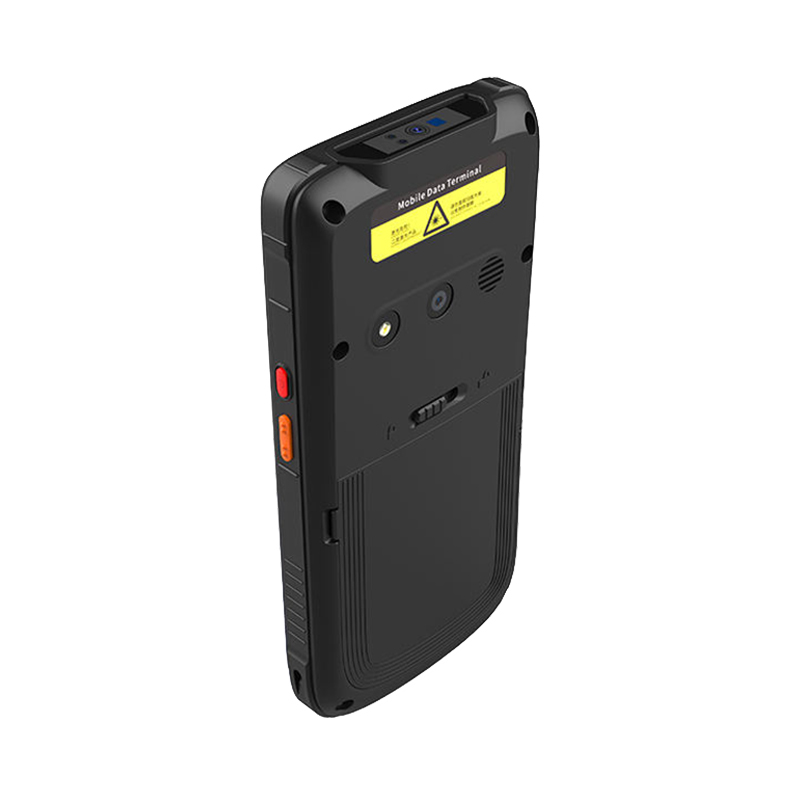

Detail photos of BX6000 Industrial Android Barcode Handheld Terminal
Product parameters of BX6000 Industrial Android Barcode Handheld Terminal
| Physical Parameter | |
| Dimension | 166x79x18±2mm |
| Weight | 400g |

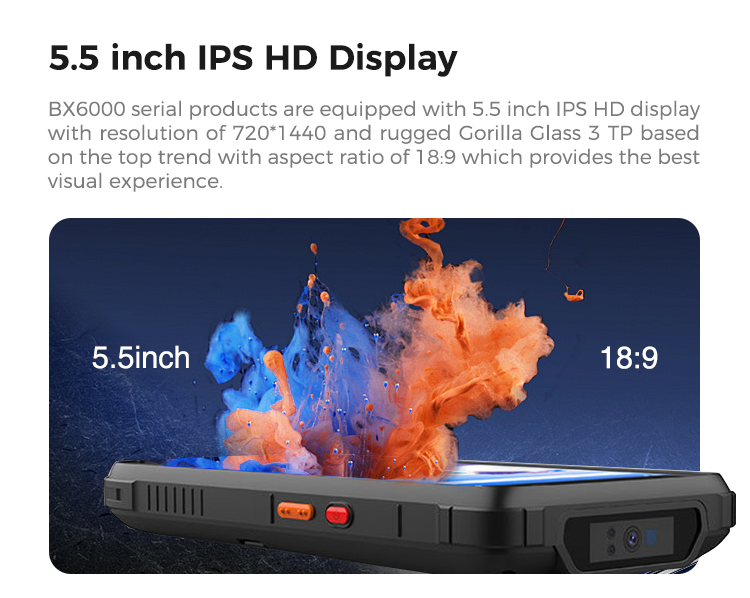

| Display screen | 5.5'' IPS FHD 720x1440 |
| Expand port | 2 PSAM, 2SIM, 1 TF |
| Communication interface | Type-C |
| Battery capacity | 3.8V,4800mAh |
| Performance Parameter | |
| CPU | Octa core 64bit processor, 2.0 GHz |
| Operating System | Android 10.0 |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Storage | 4GB RAM, 64GB ROM |
| Expansion | Supports up to 256GB Micro SD card |
| Data Communication | |
| 4G | TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20 |
| 3G | WCDMA( 850/1900/2100MHz) |
| 2G | GSM/GPRS/Edge((850/900/100//1900MHz) |
| WIFI | 2.4G/5G dual frequency WIFI, IEEE802.11 a/b/g/n/ac |
| GPS | GPS(AGPS),BeiDou,accuracy of 5 m |
| Camera | Front 500W Rear 1300W autofocus camera, matching automatic flash, support flashlight mode. |
| Data Captuer Function | |
| 2D Barcode | zebra4710/Newland NLS N1 etc. |
|
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal, etc. |
|
| Accessories | |
| Standard | 1xLithium Polymer Battery , 1x Power adapter, 1xType-C charging cable |
| Optional | Charging base |
FAQ about BX6000 Industrial Android Barcode Handheld Terminal
Q1: What operating system does the BX6000 run?
A1: It operates on Android 10.0.
Q2: What barcode types can the BX6000 scan?
A2: It supports all international standard 1D/2D barcodes, including QR, DataMatrix, and screen/damaged barcodes.
Q3: What is the storage capacity of the BX6000?
A3: 4GB RAM + 64GB ROM, expandable up to 256GB via Micro SD.
Q4: Does the BX6000 have network connectivity?
A4: Yes, it supports 4G, 2.4G/5G dual-band Wi-Fi, and GPS/BeiDou.
Q5: What protection level does the BX6000 offer?
A5: It has P65 protection, ensuring reliability in harsh environments.
