F1 Industrial Barcode Handheld Terminal
F1 is an Industrial Barcode Handheld Terminal, featuring a thin, light and narrow body design, providing users with a brand-new and comfortable grip experience. It is portable and lightweight. Even when operated with one hand, the keyboard and screen can be easily reached, making it extremely convenient and practical. This device's scanning dock adopts a unique design with a 25° inclined golden scanning Angle, which can provide the best and fastest scanning effect in most scenarios. Whether scanning a QR code or a barcode, this Angle can ensure the rapid and accurate identification and decoding of information, greatly improving the efficiency of scanning.
Product Description
Introduction of F1 Industrial Barcode Handheld Terminal
F1 is an Industrial Barcode Handheld Terminal, featuring a thin, light and narrow body design, providing users with a brand-new and comfortable grip experience. It is portable and lightweight. Even when operated with one hand, the keyboard and screen can be easily reached, making it extremely convenient and practical. This device's scanning dock adopts a unique design with a 25° inclined golden scanning Angle, which can provide the best and fastest scanning effect in most scenarios. Whether scanning a QR code or a barcode, this Angle can ensure the rapid and accurate identification and decoding of information, greatly improving the efficiency of scanning.
Feature of F1 Industrial Barcode Handheld Terminal
1）Featuring a high-performance flagship octa-core CPU, it delivers advanced functionality and an outstanding performance experience, enabling rapid execution of various applications.
2）Equipped with a high-precision QR code scanning engine, the device rapidly and accurately captures 1D/2D codes, bent, damaged, and on-screen optical barcodes. The 25° optimally angled scanning window ensures effortless " point-and-scan" operation.
3）IP67-certified against water ingress and dust, it handles demanding environments with ease. Enhance operational efficiency and achieve seamless workflows with reliable performance.
4）Integrated industrial-grade numeric and function keys feature wide-spaced design to prevent accidental presses and minimize errors, enabling efficient and error-free workflows.

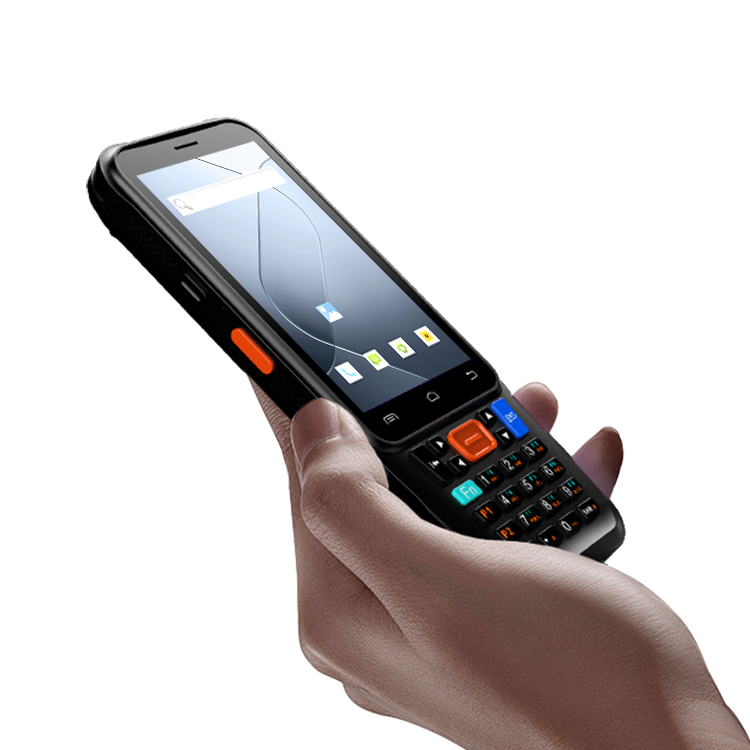

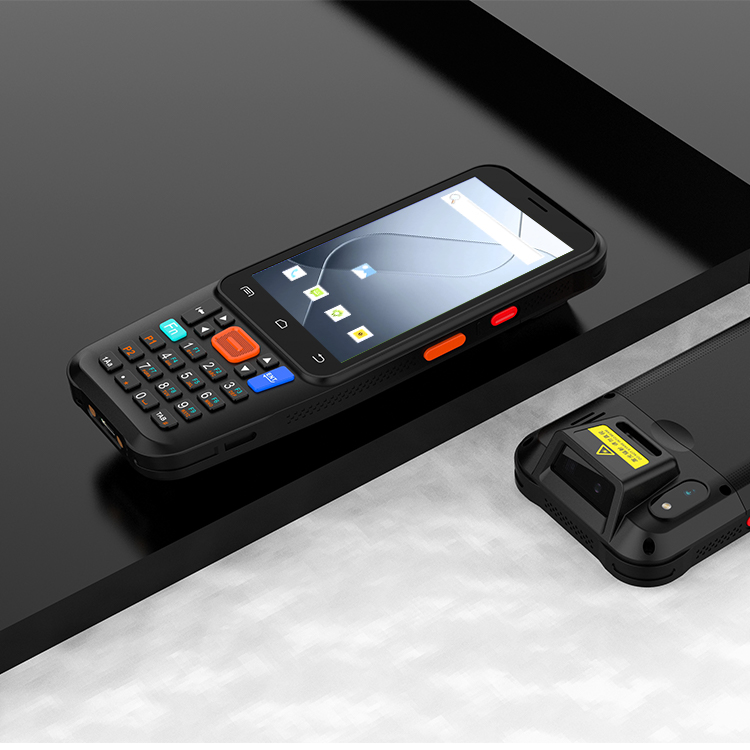

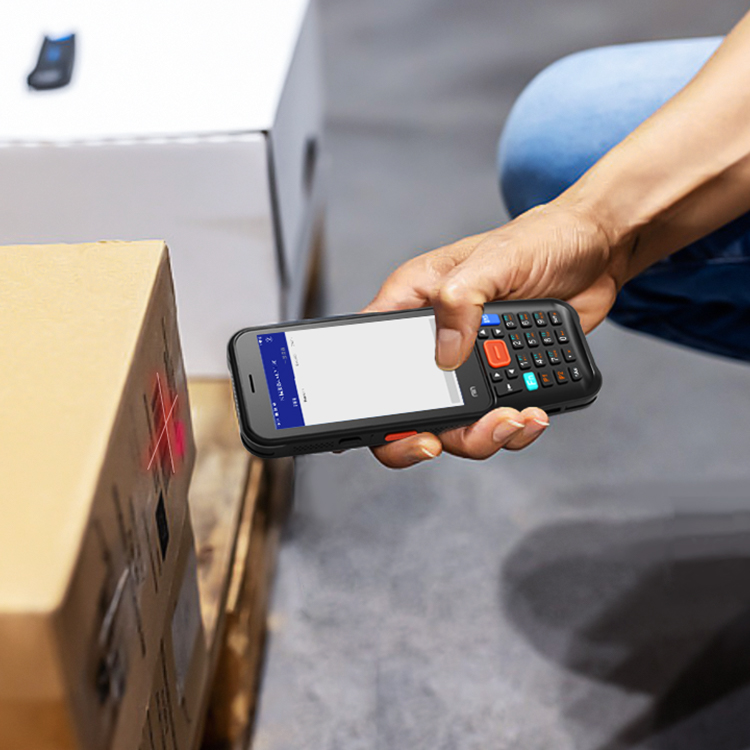

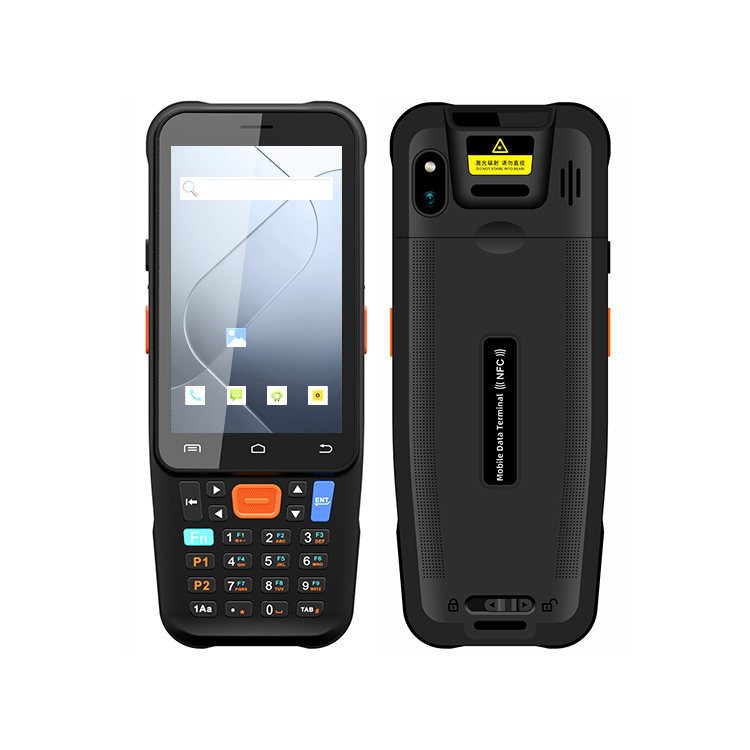

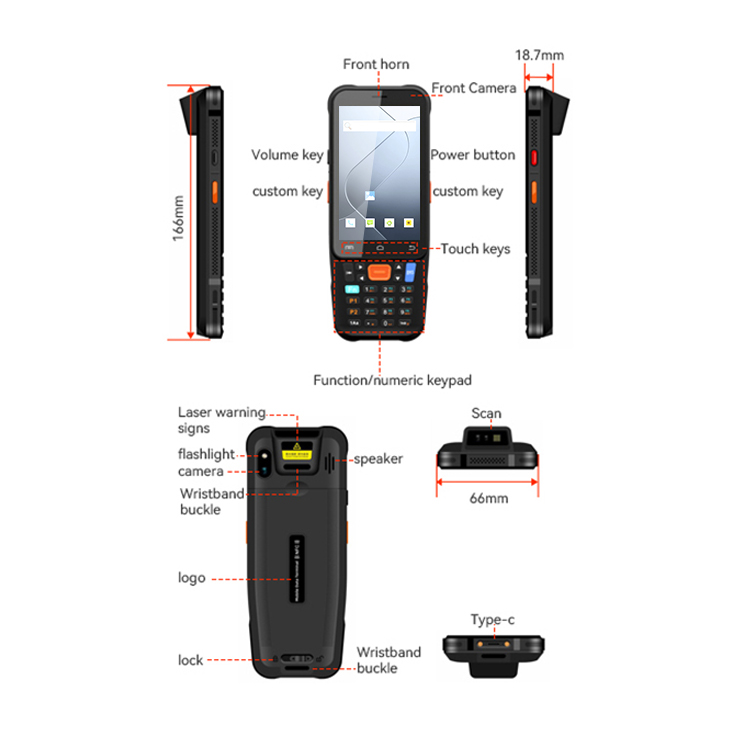

Detail photos of F1 Industrial Barcode Handheld Terminal
Product parameters of F1 Industrial Barcode Handheld Terminal
| Basic parameter | |
| Overall size | 164 * 66 * 18.7 (mm) |
| Overall weight | 270 g（Includes battery） |
| Display screen | 4-inch IPS， resolution 480*800 |
| Touch screen | Support capacitive pen multi-touch |
| Expansion slot | 1 sim slot, 1 TF slot |
| Interface | Type-c data interface |
| Indicator lamp | Charge indicator lamp |
| Keyboard | Numeric keypad/function keys/scan keys/di rection keys |
| Camera | front camera 5MP rear camera 13 MP |
| Flashlight | Low power LED lighting, emergency use |
| GPS | GPS + Beidou dual navigation system Error range ± 10m |
| Performance parameter | |
| CPU | Octa-core 64-bit processor, 2.3GHz |
| Memory capacity | RAM: 3GB ROM: 32GB (standard) |
| Extended memory | Support 256GB Micro Sd card |
| Operating system | Android 15 |
| Data communication |
4G: TD-LTE Band38/39/40/41 FDD -LTE Band1, 2, 3, 4, 7, 17, 20 3G: WCDMA (850/1900/2100MHz); 2G: GSM/GPRS/Edge (850/900/1800/1900MH)z |
| WIFI | 2.4 G/5G dual band,Compliance with IEEE802.11 a/b/g/n/ac |
| Bluetooth | Compliant with Bluetooth 4.2 |
| Battery performance | |
| Battery capacity | 5000mAh lithium polymer battery |
| Standby time | Turn off functions such as wireless communic ation and can stand by for 360 hours |
| Charging time | Less than 4 hours |
| Working hours | More than 12 hours (one full charge) |
| Barcode acquisition | |
| Barcode | 2D barcode for 1D/2D code |
| Scan engine |
E60 PDF417, MicroPDF417, Composite, RSS, TLC-39, |
| Supports 2 D barcode types |
Datamatrix, QR code, Micro QR co de, Aztec, MaxiCode, Postal Codes, US PostNet,US Planet, UK Postal, Australian Postal Japan Postal, Dutch Postal et al. |
| NFC function | |
| Operating freque | 13.56 MHz |
| Protocol standard | ISO14443A/B ISO15693, NFC-IP1, NFC-IP2, etc. |
| Label standard | M1 card (S50, S70),CPU cards, NFC tags, etc. |
| Read-write distan | 3cm-5cm |
| Working Enviroment | |
| Operating temperat | -20 ℃ ~ 50 ℃ |
| Storage temperature | -20 ℃ ~ 70 ℃ |
| Relative humidity | 5% ~ 95% non-condensation |
| Protection class | Host IP67 |
FAQ about F1 Industrial Barcode Handheld Terminal
Q :Are you manufacturer?
A: Yes, we are professional manufacturer. We can provide OEM customized service according to customers’ various demands and requirements.
Q: What is the minimum order(MOQ)?
A: We accept 5 units as MOQ for standard products. we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: How to order and pay?
A: We accept T/T (bank transfer) & Alibaba online.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample.
Q: How long it will take for delivery?
A: For stock products, the delivery time is about 3 days. We will check and confirm the delivery time with you if the stock is not available.
Q:How much will the express delivery cost for the sample?
A: The express delivery cost depends on the sample quantity, weight, carton measurement and which country you would like to send.You can enquiry our sales person for exactly information.
Q:How to ship the goods to us?
A: For samples order, usually delivery by carrier like DHL, UPS, FEDEX, etc; for MP order, usually ship by air or sea.
