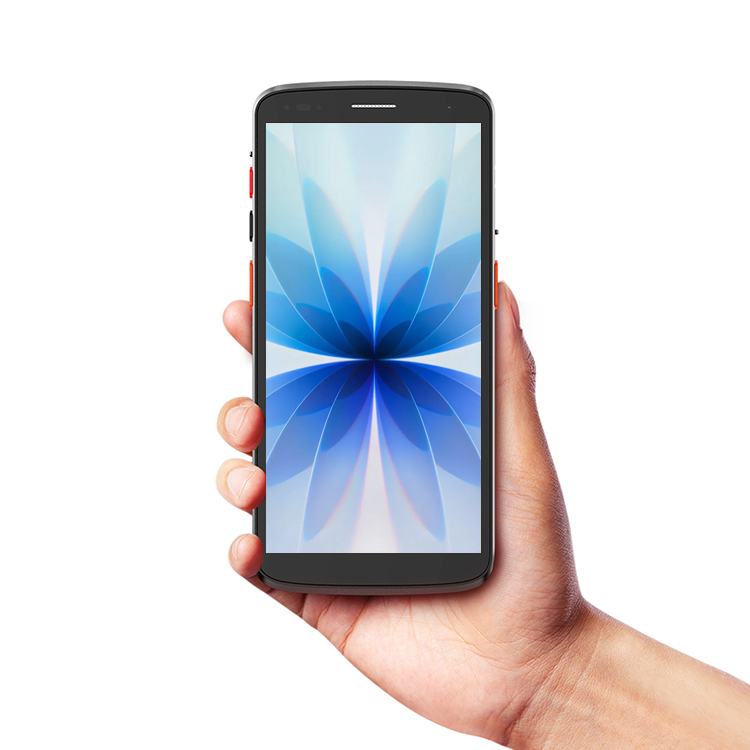

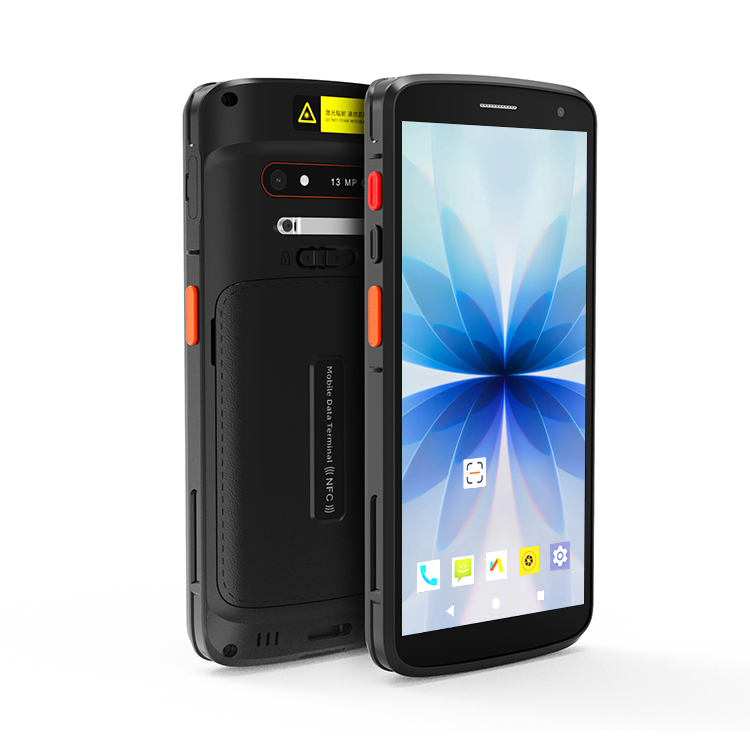

F2 Barcode Scanner Handheld Terminal

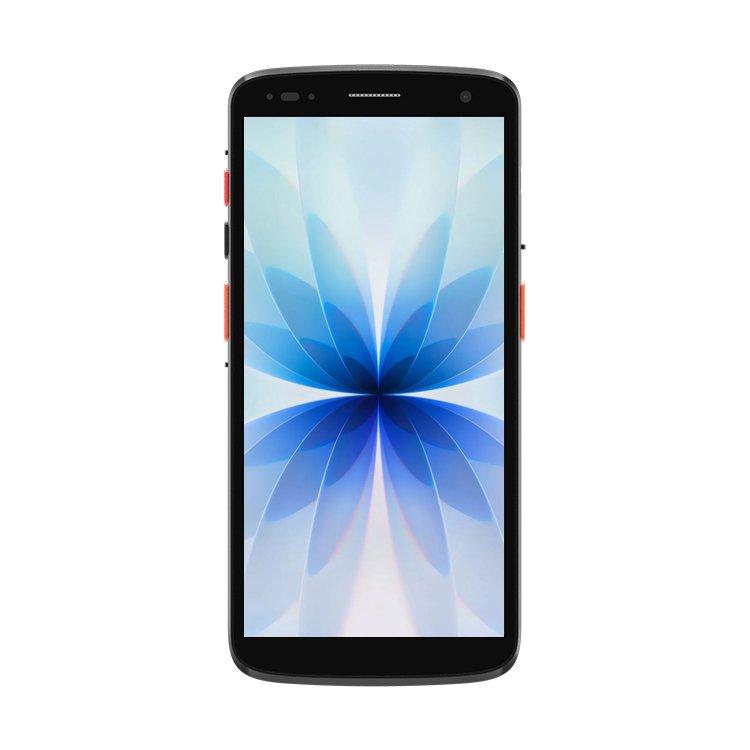

F2 is a barcode scanner handheld terminal equipped with a 6-inch narrow-bezel large screen. Each screen can display more abundant content, effectively expanding the software application interface and enhancing operational convenience. The FHD+ resolution provides more detailed content display. The device integrates a high-precision scanning engine to quickly and accurately collect various optical graphic barcodes such as one-dimensional codes, two-dimensional codes, damaged barcodes, bent barcodes, and screen codes.
Product Description
Introduction of F2 Barcode Scanner Handheld Terminal
F2 is a barcode scanner handheld terminal equipped with a 6-inch narrow-bezel large screen. Each screen can display more abundant content, effectively expanding the software application interface and enhancing operational convenience. The FHD+ resolution provides more detailed content display. The device integrates a high-precision scanning engine to quickly and accurately collect various optical graphic barcodes such as one-dimensional codes, two-dimensional codes, damaged barcodes, bent barcodes, and screen codes.
Feature of F2 Barcode Scanner Handheld Terminal
1）High-performance flagship octa-core CPU, main frequency 2.3GHz, gives it high-end functions and excellent performance experience, and can run various applications at high speed.

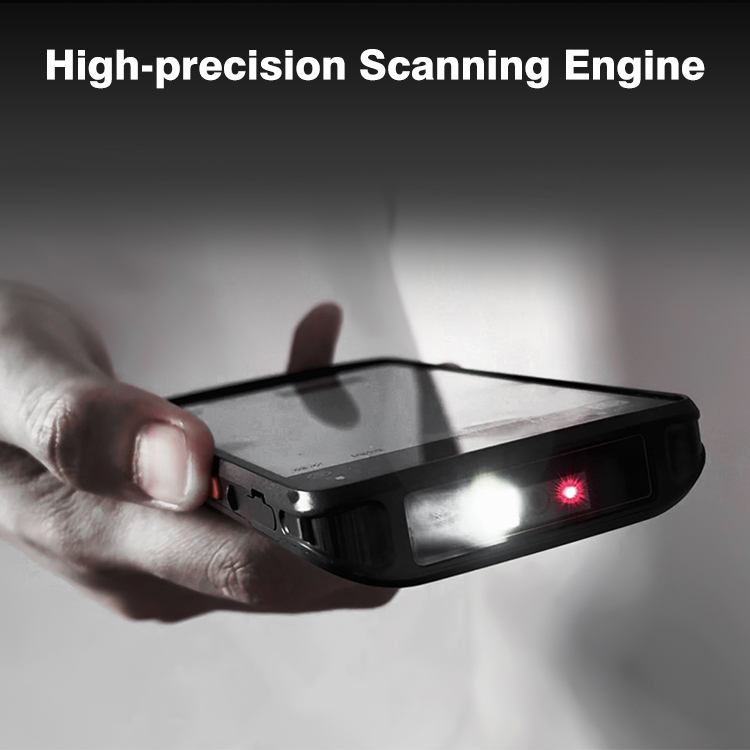

2）The device integrates a high-precision QR code scanning engine that can quickly and accuratelycollect various 1D codes, QR codes, damaged barcodes, bent barcodes,screen codes and otheroptical graphic barcodes. At the same time, the design of the golden scanning angle makes the device scanning more convenient and easy.

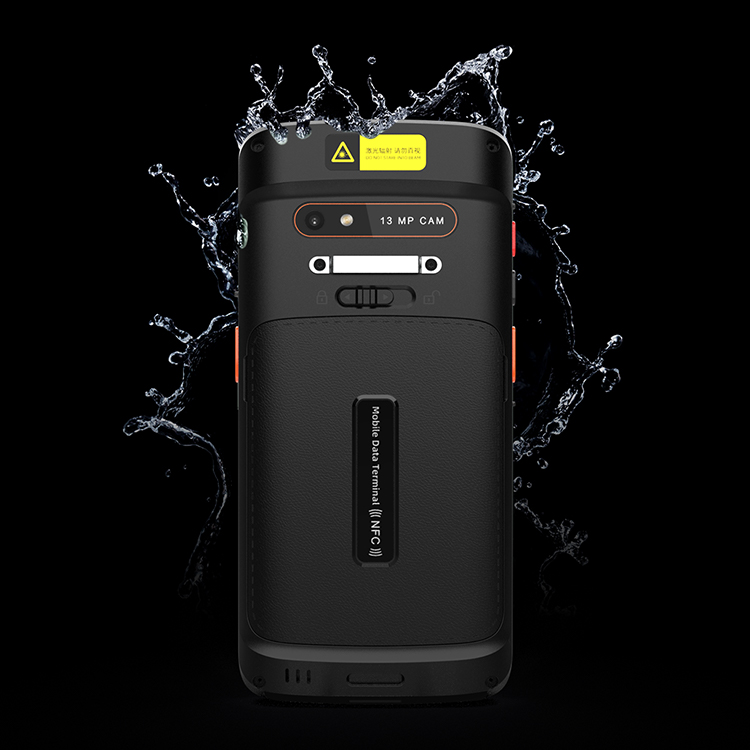

3）The device has passed IP65 certification and effectively prevents water intrusion, dust, etc. It canhandle operations in complex environments with ease. Significantly improve work efficiency, helpwork more smoothly.
4）The device adopts ergonomic design, comfortable grip, light and portable. One-handed operation can reach any corner of the screen at will. Internal and external scene applications are handy.

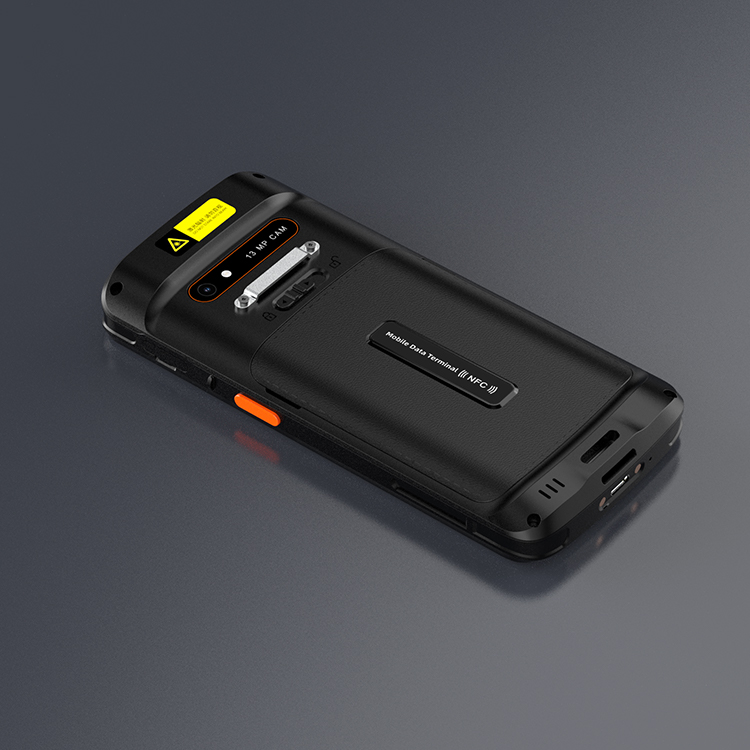

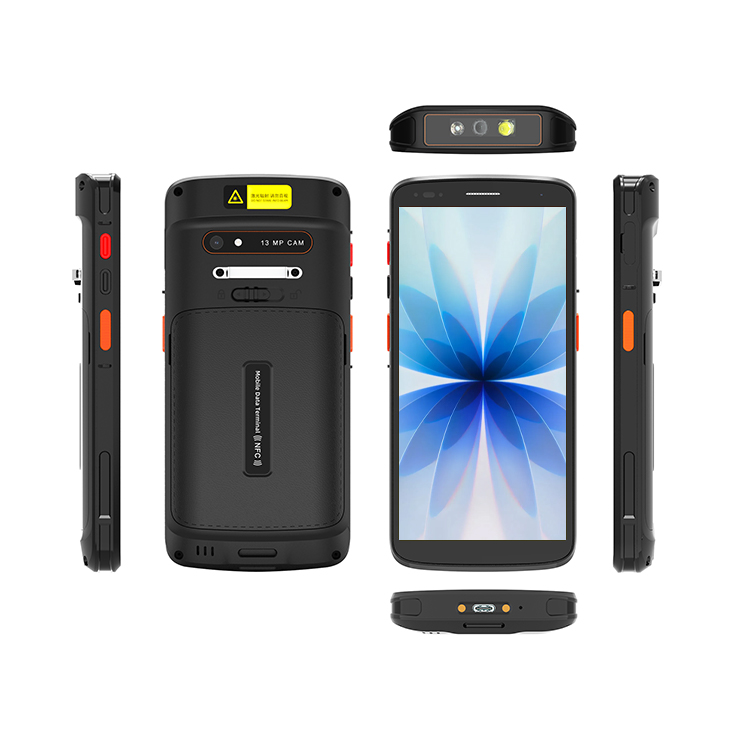

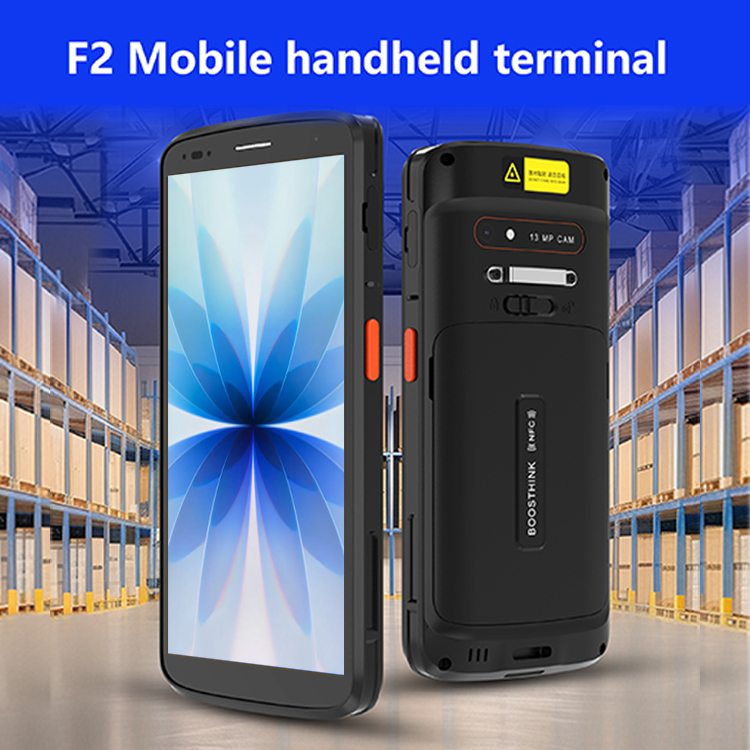

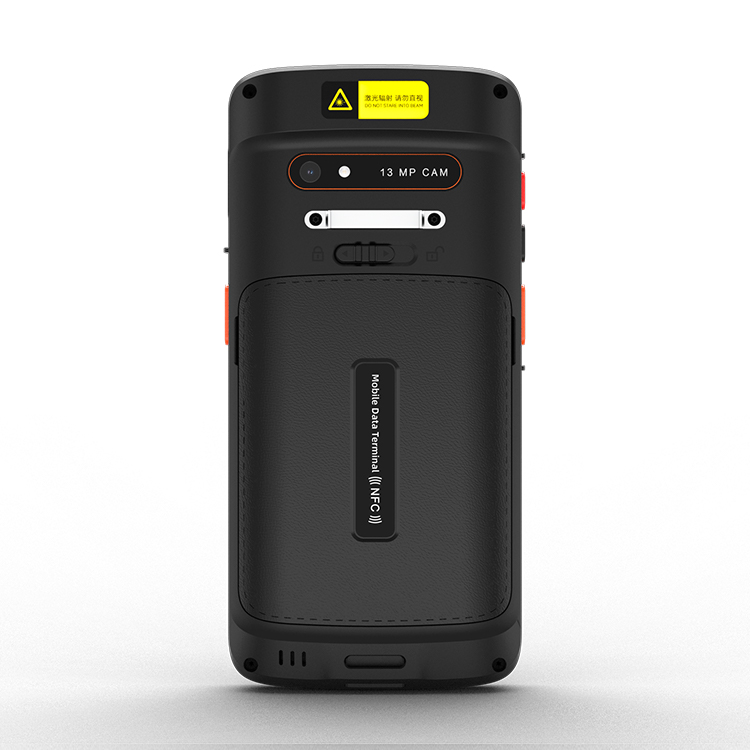

Detail photos of F2 Barcode Scanner Handheld Terminal
Product parameters of F2 Barcode Scanner Handheld Terminal
| Physical characteristics | |

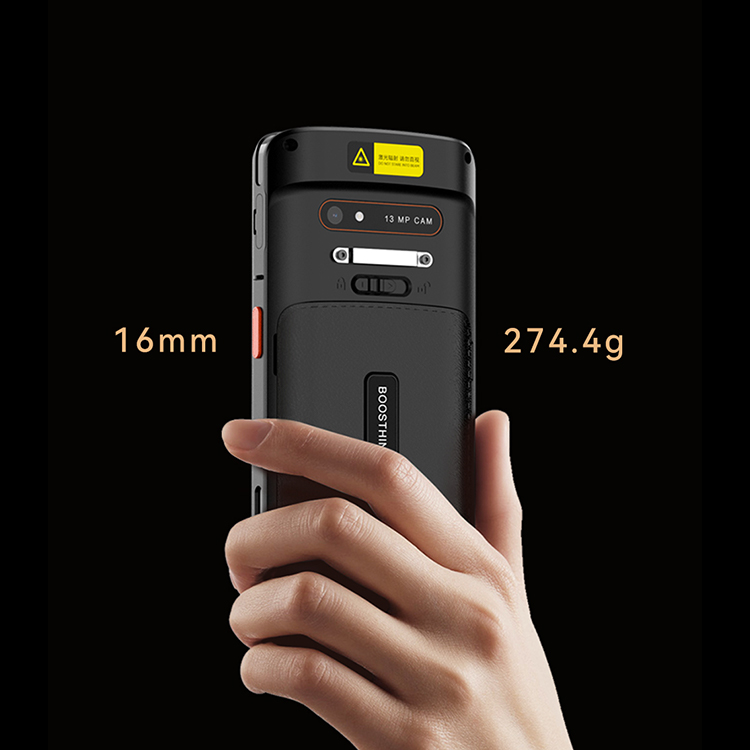

| Dimension | 164*77.6*16±2mm |
| Weight | 274g |
| Display | Tough 6-inch FHD 1080*2160 |
| Expansions | 1sim,1TF |
| Interface | Type-c |
| Indicator | Charging indicator |
| Keyboard | Scan/power/volume button |
| Camera | Rear 13 megapixel, front 5.0 megapixel (auto-focus with LEDflash) |
| GPS | GPS+Beidou dual navigation system, accuracy ±10m |
| Performance parameter | |
| CPU | Octa-core 64-bit processor, 2.3GHz |
| Storage |
RAM:4GB ROM:64GB Support MicroSD(max 256GB expansion) |
| Operating System | Android 15 |
| Communication |
4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1 2 ,3 ,4 7, 1, 7, 20, 3G:WCDMA( 850/1900/2100MHz); 2G:GSM/GPRS/Edge (850/900/1800/1900MHz) |
| WIFI |
2.4GHz/5.0GHz Dual Frequency,IEEE 802.11 a/b/g/n/ac |
| Bluetooth | BT 5.1 |
| Battery performance | |

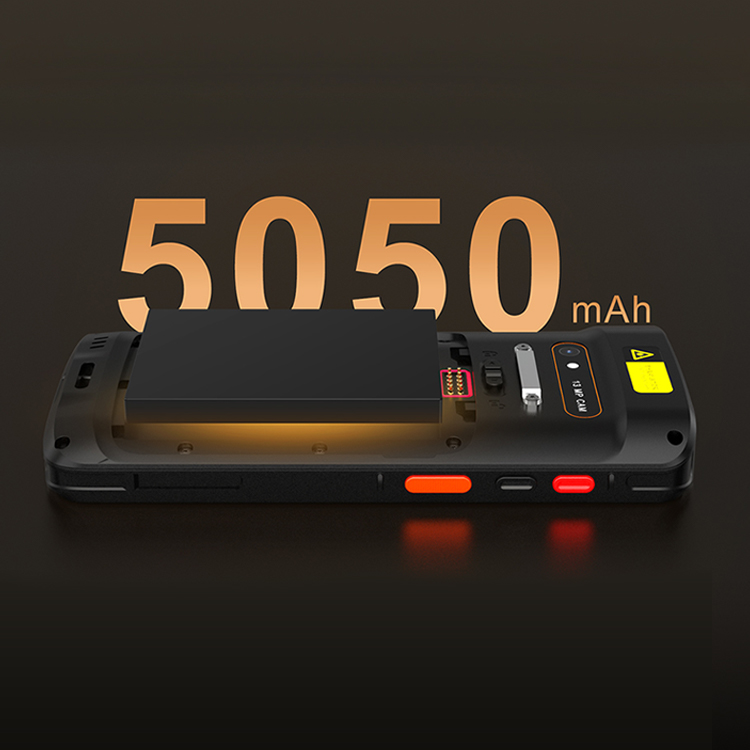

| Battery capacity | 5050mAh |
| Standby time | About 360 hours after turn off all function |
| Charging time | Less than 4hours |
| Working hours | 12hours(full charged) |
| Barcode scanning function | |
| Scan engine | E60 2D scan |
| Barcode type | All major 1D barcode |
| PDF417, MicroPDF417,Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code,Aztec, MaxiCode, Postal Codes,US Post Net,US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc | |
| NFC function | |
| Frequency | 13 .56MHz |
| Protocol | ISO14443A/B ISO15693, NFC-IP1,NFC-IP2 etc |
| label type | nfc label such as M1（S50,S70),CPU， NFC card etc |
| R/W Range | 3cm-5cm |
| User environment | |
| Operating Temp | -20℃~50℃ |
| Storage Temp | -20℃~70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |

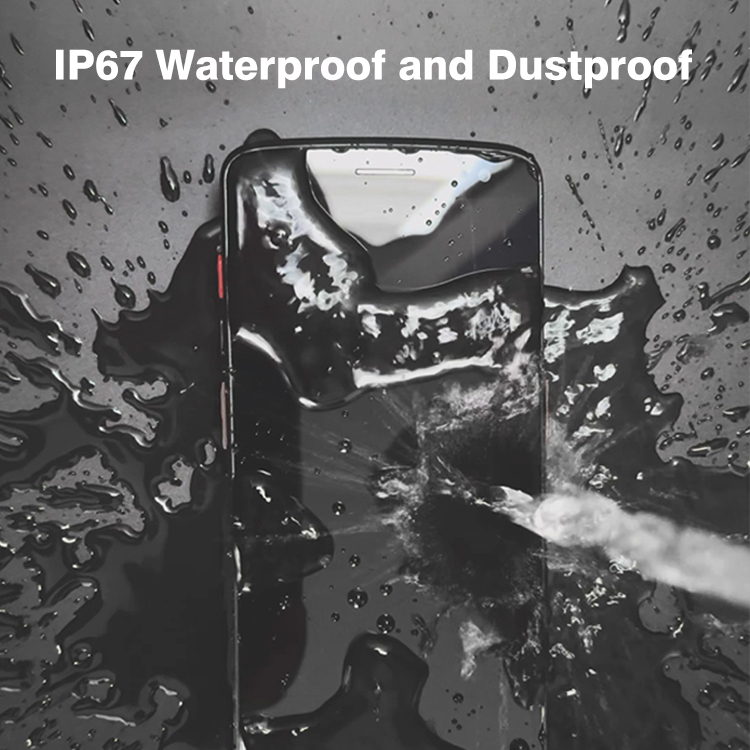

| Protection class | IP67 |
FAQ about F2 Barcode Scanner Handheld Terminal
Q :Are you manufacturer?
A: Yes, we are professional manufacturer. We can provide OEM customized service according to customers’ various demands and requirements.
Q: What is the minimum order(MOQ)?
A: We accept 5 units as MOQ for standard products. we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: How to order and pay?
A: We accept T/T (bank transfer) & Alibaba online.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample.
Q: How long it will take for delivery?
A: For stock products, the delivery time is about 3 days. We will check and confirm the delivery time with you if the stock is not available.
Q:How much will the express delivery cost for the sample?
A: The express delivery cost depends on the sample quantity, weight, carton measurement and which country you would like to send.You can enquiry our sales person for exactly information.
Q:How to ship the goods to us?
A: For samples order, usually delivery by carrier like DHL, UPS, FEDEX, etc; for MP order, usually ship by air or sea.
