Expad-10 Windows Rugged Tablet
The XUXIN Expad-10 is an industrial-grade Windows rugged tablet offering outstanding explosion-proof, waterproof, and dustproof capabilities. It is specifically engineered for hazardous environments containing flammable or explosive gases, as well as dusty conditions, making it ideal for use in industries such as petroleum, chemical, pharmaceutical, gas stations, oil depots, and storage tank facilities.
Product Description
Introduction of Expad-10 Windows Rugged Tablet
XUXIN Expad-10 is an industrial grade Windows Rugged Tablet that has excellent explosion-proof, waterproof, and dustproof performance. This equipment is designed specifically for flammable and explosive environments as well as dust environments, such as dangerous places with flammable and explosive gases, such as petroleum, chemical, pharmaceutical, gas stations, oil depots, tank farms, etc.
Feature of Expad-10 Windows Rugged Tablet
1) Industrial-grade durability: Built with high-quality materials and advanced manufacturing processes, the tablet offers exceptional drop resistance and can withstand vibrations, impacts, and dust in demanding environments.
2) Large, clear display: Features a 10.1-inch high-resolution screen that delivers sharp and vivid visuals for an optimal viewing experience.
3) Ample memory and storage: Equipped with 8GB RAM and 128GB storage, supporting a wide range of applications and efficient multitasking.
4) Long-lasting battery: Comes with a high-capacity battery to ensure reliable performance over extended periods of use.
5) Certified explosion-proof safety: Holds IIC explosion-proof certification, making it safe for operation in flammable and explosive environments, including Zone 1 and Zone 2 areas.

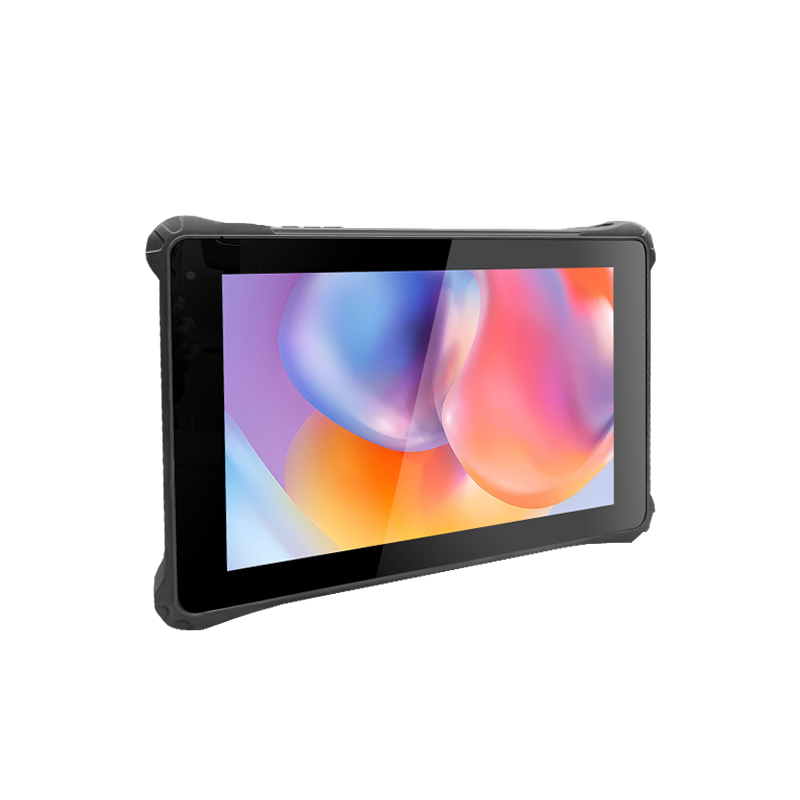

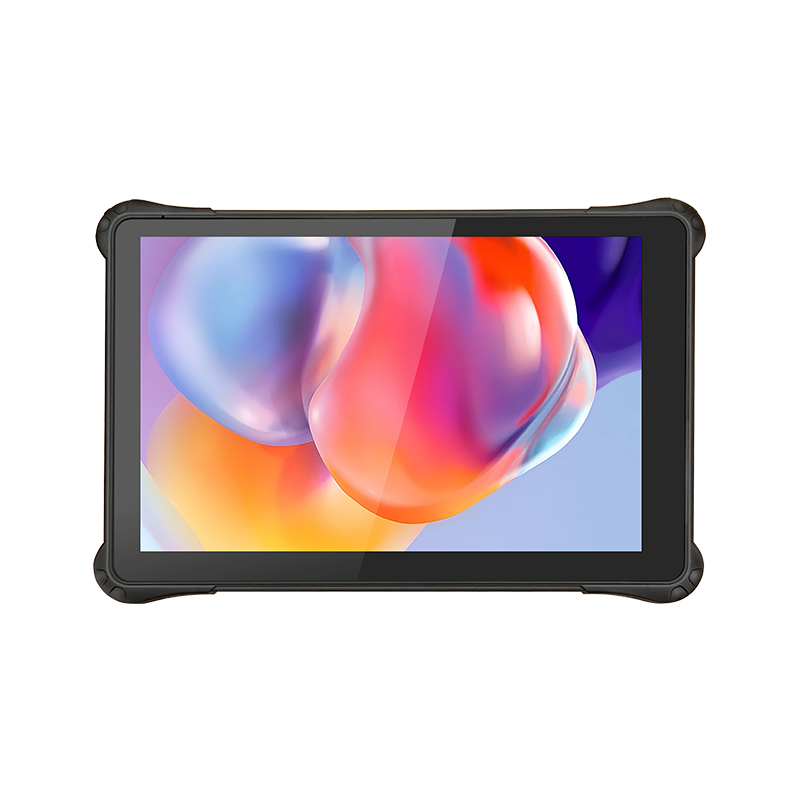

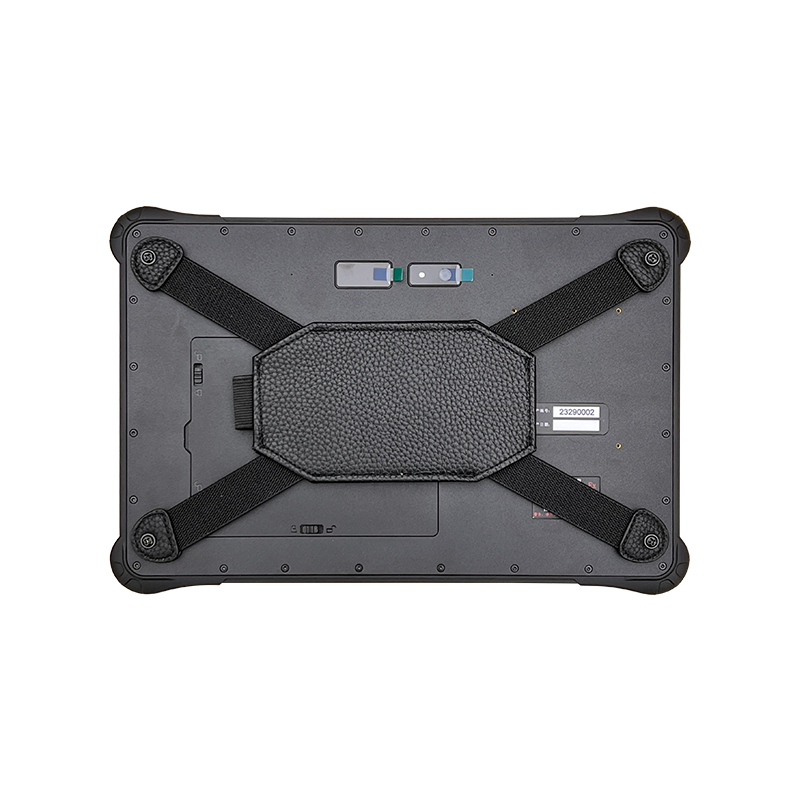

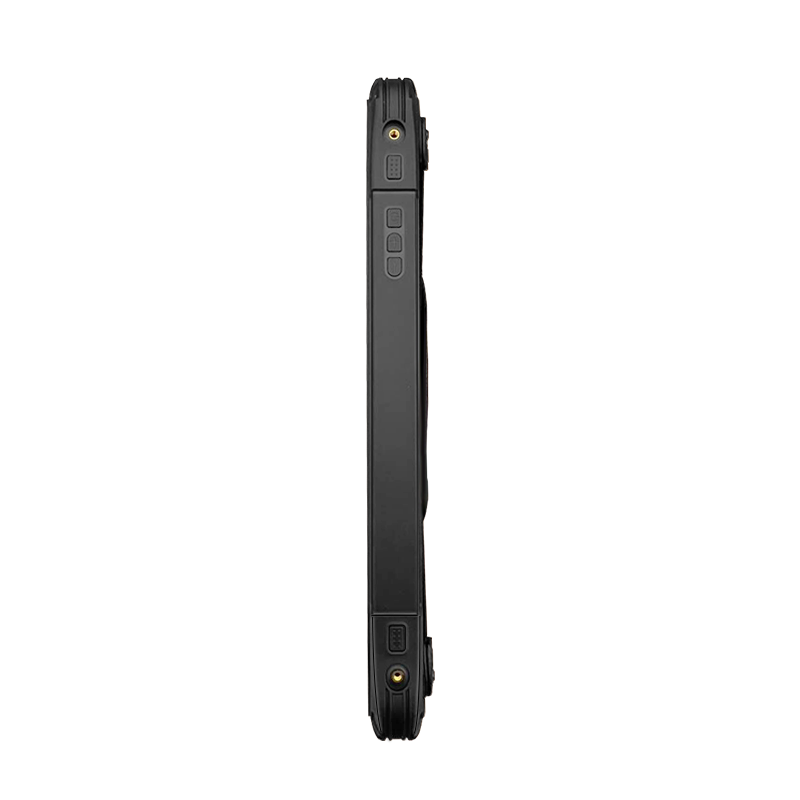

Detail photos of Expad-10 Windows Rugged Tablet
Product parameters of Expad-10 Windows Rugged Tablet
| Physical parameters | size | 280*188*23mm |
| weight | 1200g | |
| color | black | |
| LCD | screen size | 10.1-inch 16:10 TFT IPS screen |
| resolution standard | 800 * 1280 HD, optional: 1200 * 1920 FHD (customized at a separate cost) | |
| brightness | 750cd/㎡ high brightness screen | |
| touch Screen | 10 point touch capacitive touch screen, G+G, Gorilla Glass, hardness 7H | |
| Camera | front | 5MP fixed focus camera |
| postposition | 800MP autofocus camera with flashlight function | |
| Speaker | built-in | 8 Ω/1W, stereo dual speakers |
| Microphone | built-in | Single MIC, sensitivity: -42db, output impedance 2.2k Ω |
| Battery | capacity | 3.7V/10000mAh |
| endurance | 8 hours (default 50% brightness to play 1080P video) | |
| CPU | Intel JASPER LAKE N5100 processor, 4 cores, 4 threads, embedded 4 MB SmartCache；Maximum frequency 2.8GHz | |
| GPU | Intel® HD Graphics Gen 11 LP | |
| Memory | 8GB+128GB | |
| Operating system | windows 10/11 (Genuine systems require additional purchase) | |
| Sensor | support gravity acceleration sensor | |
| WIFI | WIFI 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI | |
| Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m | |
| 4G | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD B40,WCDMA: B1/B5/B8 GSM: 900/1800 | |
| GPS | GPS、Glonass、beidou(G+G+B) | |
| NFC | 13.56MHz supports ISO/IEC 14443A/14443B/15693/18092/Mifare protocol, with a card reading distance of 2-5cm | |
| RFID ID | RFID and ID card optional (paid separately)can only choose one or the other | high frequency 13.56MHz, supporting ISO/IEC 14443A/14443B/15693 protocol ultra high frequency PR9200/R2000 |
| QR code | optional (paid separately) | optical resolution: 5ml, scanning speed: 50 times/s |
| fingerprint | optional (paid separately) | FBI certified fingerprint module |
| Standard interface | TF card | TF card x1, supports up to 256GB expansion (optional separately paid) |
| SIM card | micro SIMcard x1 | |
| USB Type-C | fully functional Type-C x1, charging and data transmission | |
| USB Type-A | USB 3.0 x1 | |
| headphone jack | standard 3.5mm interface x1 | |
| HDMI | Mini HDMI 1.4a x1 | |
| etherNet | RJ45 x1，10M/100/1000M | |
| Expansion | pogo pin | bottom 12pin * 1 (charging interface, USB signal connection base) |
| aviation interface (optional, paid separately) | aviation interface x2, USB, RS232, DC power input (two out of three functions) | |
| The power adapter | input AC100V~240V, 50Hz/60Hz, output DC 19V/3.42A | |
| Data line | Type-C USB data cable | |
| Base | optional (paid separately), supports simultaneous charging of host and single battery, supports USB, RJ45 network port, RS232 data interface expansion | |
| Hand strap | hand strap x1 | |
| Shoulder strap | optional (paid separately) | |
| Protective performance | dustproof and waterproof | IP67 |
| operation temperature | -10 °C ~ 50 °C | |
| storage temperature | -20 °C ~ 60 °C | |
| electrostatic Discharge | ± 5kV contact discharge, ± 10kV air discharge | |
| humidity | 95% non condensing | |
