Rugged Tablet For Challenging Environments
The XUXIN KJD3.7 Rugged Android Tablet is a high-performance device engineered for wireless communication in explosion-hazard environments such as coal mines. Powered by the advanced Android operating system and robust hardware, it delivers reliable performance with outstanding explosion-proof, dustproof, waterproof, and drop-resistant capabilities, ensuring stable operation even in demanding underground conditions.
Product Description
Introduction of Rugged Tablet For Challenging Environments
XUXIN KJD3.7 Rugged Tablet Android is a high-performance terminal designed specifically for wireless communication systems in explosion-proof areas such as coal mines. It adopts advanced Android operating system and powerful hardware configuration, with excellent explosion-proof, dustproof, waterproof and anti drop performance, and can operate stably in harsh underground working environments.
Feature of Rugged Tablet For Challenging Environments
1) Reliable protection design: With an IP65 protection rating, the device is resistant to dust and water intrusion. Its rugged casing provides excellent drop resistance, ensuring stable performance even in harsh outdoor environments.
2) Ample storage and smooth multitasking: Equipped with 4GB of RAM and 64GB of ROM, it offers sufficient capacity to handle multiple applications and store large amounts of data efficiently.
3) Clear and responsive display: Featuring an 8-inch IPS HD screen with a resolution of 800×1280, the tablet delivers crisp visuals. The multi-touch capacitive screen provides quick response and intuitive operation for various tasks.
4) Certified explosion-proof safety: Utilizing intrinsic safety explosion-proof technology, the device is certified with explosion-proof and safety standards, making it suitable for coal mines and other environments containing explosive gases like methane and coal dust.
5) Comprehensive functional support: Built-in GPS enables accurate positioning and navigation, while NFC functionality allows seamless near-field communication and data exchange for improved work efficiency.

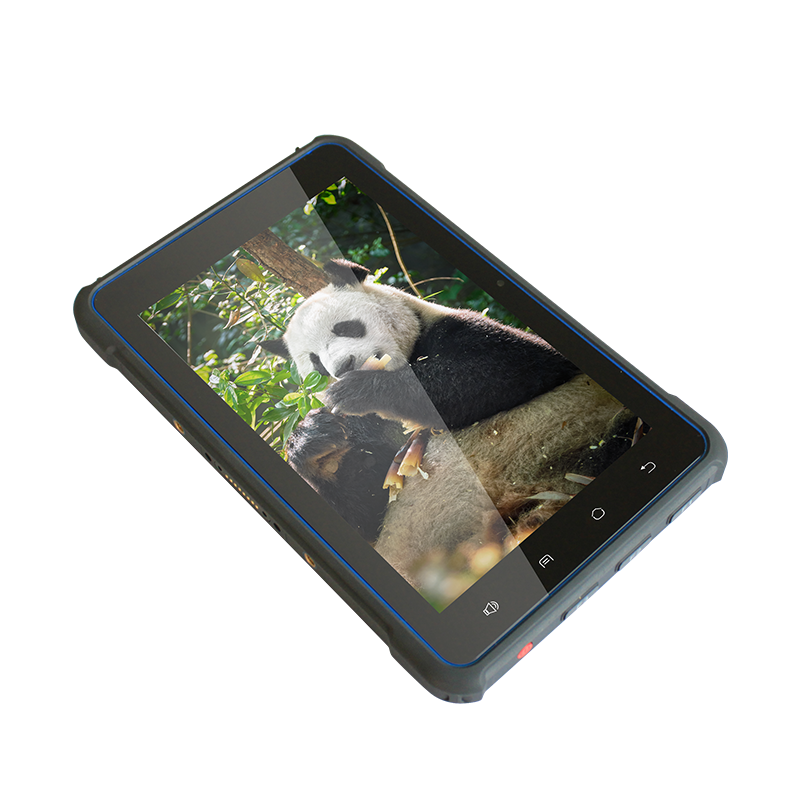

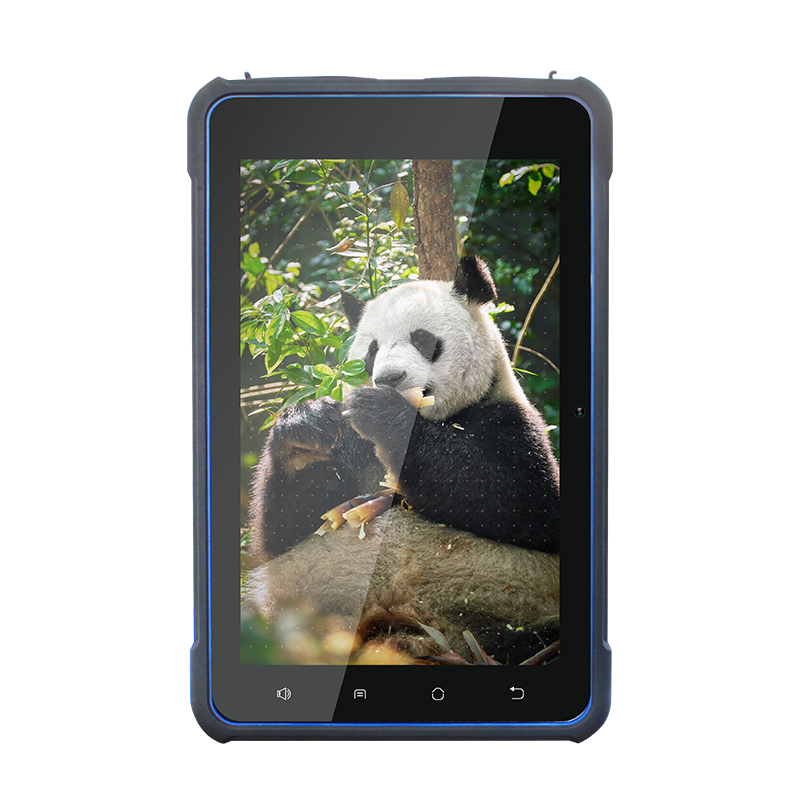

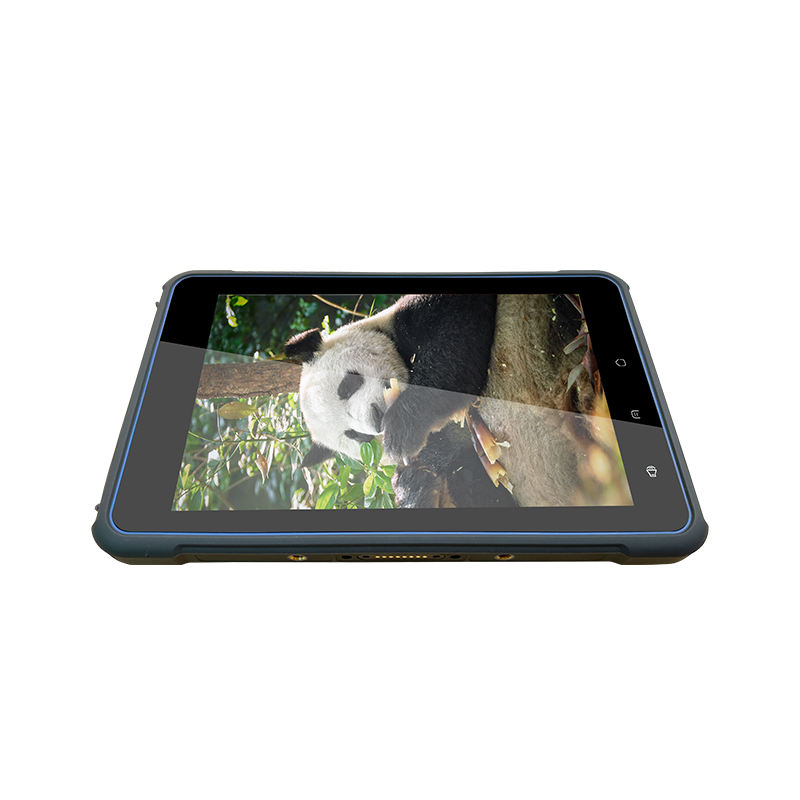

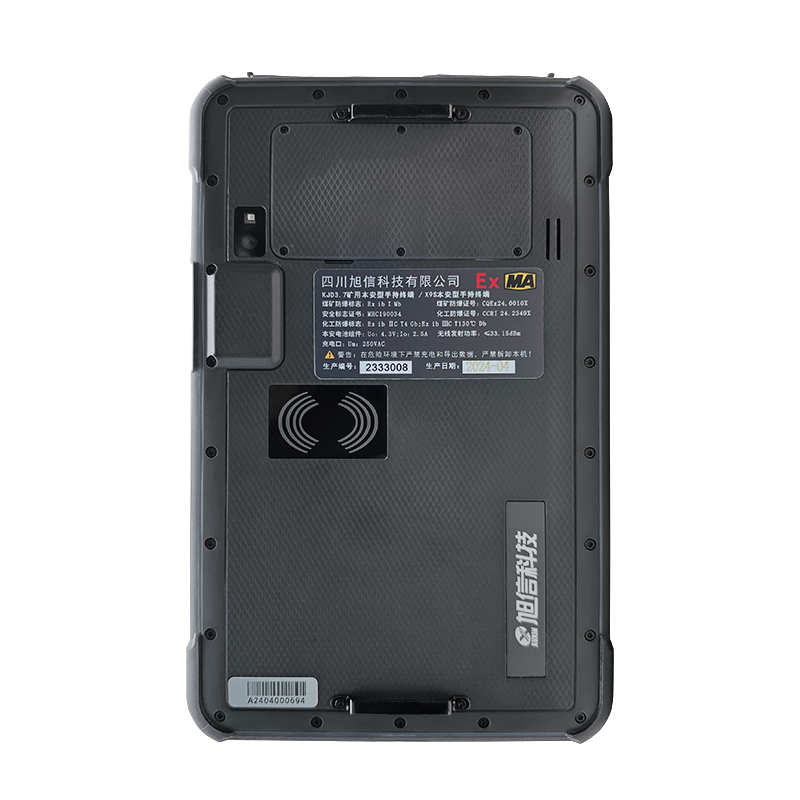

Detail photos of Rugged Tablet For Challenging Environments
Product parameters of Rugged Tablet For Challenging Environments
| Explosion proof mark | Ex ib I Mb；Ex ib IIC T4 Gb |
| Overall dimensions | 230×146×20mm |
| Whole machine weight | 650g |
| Display | 8-inch IPS high-definition screen, resolution 800 * 1280 |
| Touch screen | Corning Gorilla third-generation industrial grade multi touch capacitive screen |
| Expansion Slots | 2 PSAM card slots (expandable to customize 4 PSAM cards), 2 SIM card slots, and 1 MicroSD (TF) card slot |
| Communication interface | 1 Type-C interface, 1 Type-A interface, 1 DC3.5mm charging port |
| Indicator light | Charging indicator light |
| keyboard | Side scan key, side function key |
| Camera | Front 5 million pixels, rear 13 million pixels, camera with flash and autofocus function |
| Flashlight | Low power LED lighting for emergency use |
| Location | GPS/GLONASS/Beidou/Galileo |
| CPU | Eight core 64 bit, MT6762 main frequency 2.0GHz |
| Memory capacity | RAM：4GB ROM：64GB |
| Operating system | Android10.0 |
| Expand memory | Supports 256GB Micro SD card |
| 4G |
TD-LTEBand38/39/40/41 FDD-LTEBand1,2,3,4,7,17,20 |
| 3G | WCDMA(850/1900/2100MHz); |
| 2G | GSM/GPRS/Edge（850/900/1800/1900MHz） |
| WIFI | 2.4G/5G dual band, compliant with IEEE802.11a/b/g/n/ac |
| Bluetooth | Compliant with Bluetooth 4.2 |
| Operating temperature | -20℃～50℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5% to 95% non condensable |
| Protection level | IP65 |
| Battery capacity | 6000mAh |
| The following configurations are optional modules for customers | |
| 2D barcode collection (optional) | |
| 2D scanning engine | Honeywell-6603 |
| Support two-dimensional barcode types | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,USPostNet,USPlanet,UKPostal,AustralianPostal,JapanPostal,Dutch |
| Ultra high frequency RFID (optional) | |
| Ultra high frequency | RFID (optional) |
| Support agreement | Regarding EPCC1GEN2/ISO18000-6C protocol |
| Scan Distance | Optional distance of 1-6 meters (depending on label and environment) |
| High frequency RFID (optional) | |
| Support frequency | 13.56MHz |
| Support agreement | Regarding the dual protocols of ISO15693 and ISO14443 |
| Scan Distance | 0-7 centimeters (depending on label and environment) |
| Low frequency | 125K/134.2K animal ear tags |
| High frequency (CPU card) | Supports reading and writing of CPU cards, used in conjunction with PSAM |
| Active 2.45G (customized) | Distance of 200m, 200 labels can be read at once |
| Fingerprint recognition (optional) | |
| Module functionality | Fingerprint input/comparison/deletion, image processing, etc |
| Sensor | TCSI biometric fingerprint/FBI fingerprint authentication |
| Sensor type | Capacitive inductive type |
| Image size | 256*360pixel |
| Resolving power | 500 DPI |
| Storage capacity | 1000 pieces |
| ZigBee (optional) | |
| ZigBee | Use wireless networking for data collection |
| Other optional modules (optional) | |
| Electric infrared (customized) | Support power infrared function |
| 433M (customized) | Adjustable distance |
