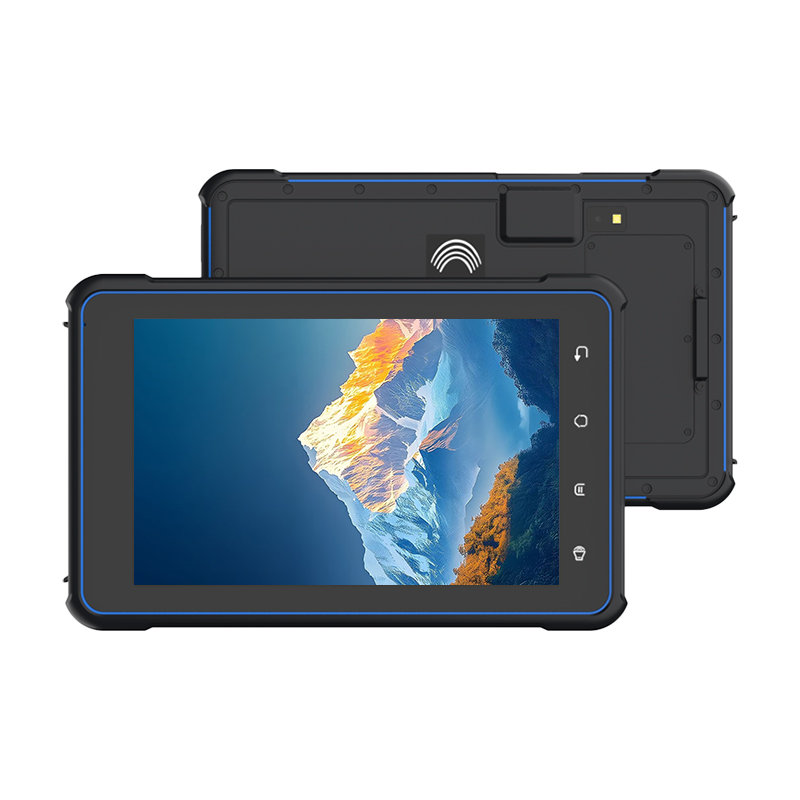

Rugged Android Tablet with Barcode Scanner

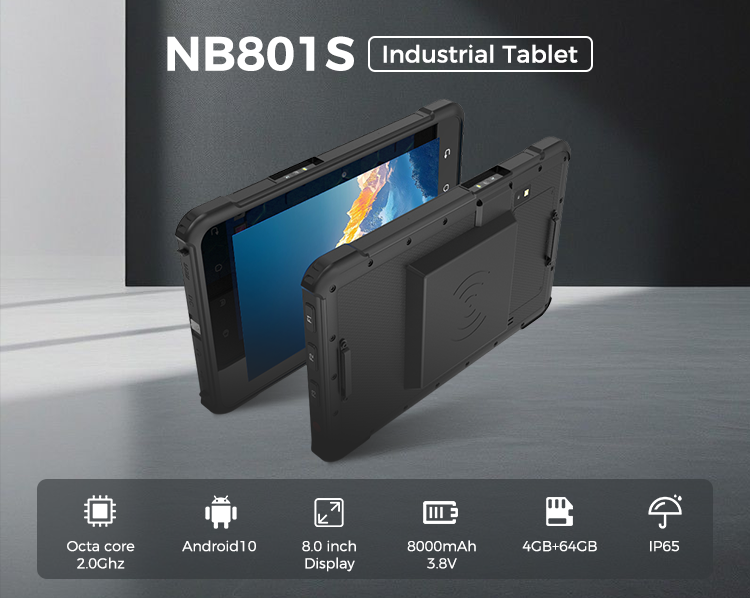

The NB801S is an industrial rugged android tablet with barcode scanner, powered by a 2.0GHz octa-core Cortex-A73 CPU and Android 10.0. Boasting 4GB RAM/64GB ROM (expandable to 256GB), 8000mAh long-lasting battery, and IP65 protection, it supports diverse data collection (RFID, barcode, fingerprint, etc.) and multiple connectivity options (WWAN, WLAN, Bluetooth, GPS). Compact (230x146x20mm) and rugged, it endures 1.5m drops and -20℃ to 50℃ operating temps.
Product Description
Introduction of Rugged Android Tablet with Barcode Scanner
The NB801S is an industrial rugged android tablet with barcode scanner, powered by a 2.0GHz octa-core Cortex-A73 CPU and Android 10.0. Boasting 4GB RAM/64GB ROM (expandable to 256GB), 8000mAh long-lasting battery, and IP65 protection, it supports diverse data collection (RFID, barcode, fingerprint, etc.) and multiple connectivity options (WWAN, WLAN, Bluetooth, GPS). Compact (230x146x20mm) and rugged, it endures 1.5m drops and -20℃ to 50℃ operating temps.
Feature of Rugged Android Tablet with Barcode Scanner
1) Industry-leading, high.speed octa-core CPU
Based on and exceptinal leading 12nm process technology, the high-speed octa-core CPU offers advancedfeatures andexceptional performance, allowing it to run a wide range of applications at lightning speed.

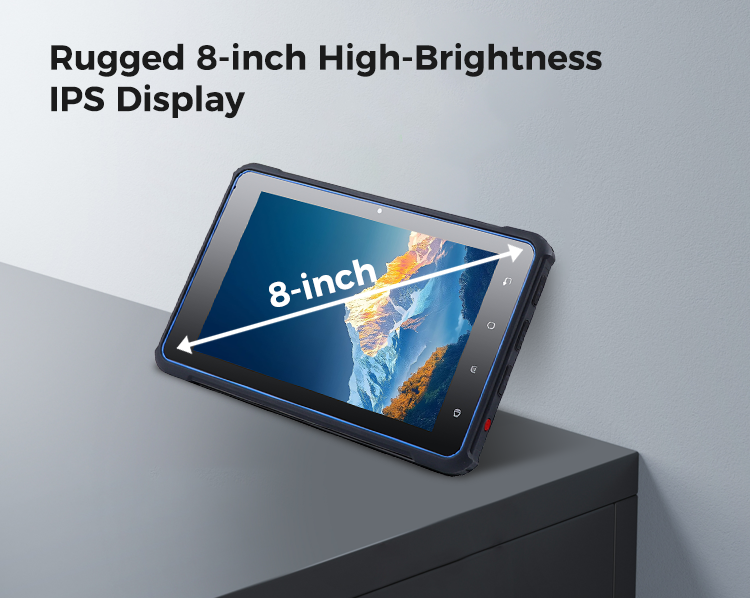

2) Extremely rugged 8-inch screen for enhanced durability

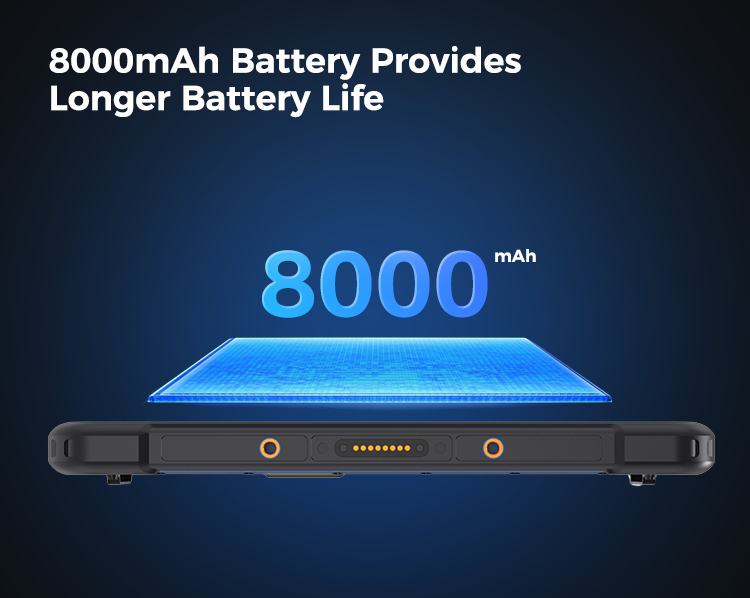

The device utilizes Corning Gorila Glass 3, a secondary tempered glass, providing enhanced screenhardness, drop resistance, and scratch resistance.The device boasts a built-in 8000mAh battery.delivering over12 hours of continuous operation, ensurina maximum battery life for extended outdoor use.
3) Diverse Data Collection Functions and Strong Protection

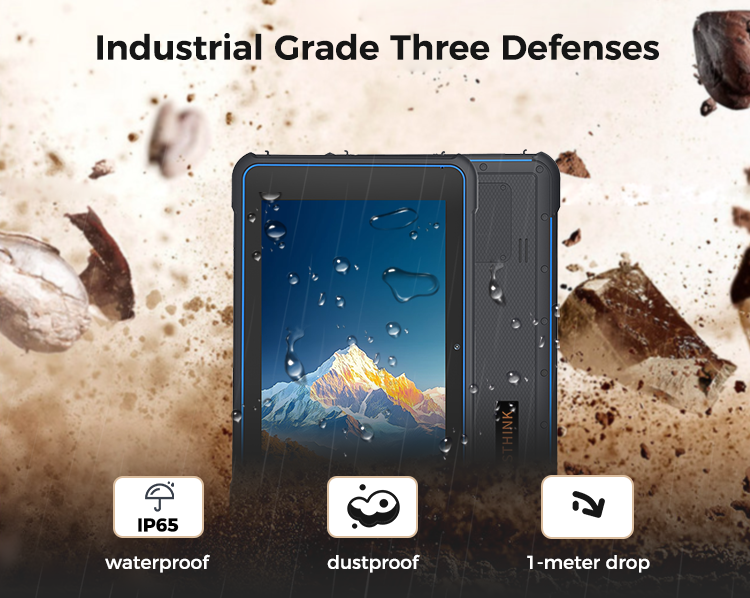

The device can flexibly integrate RFlD, barcode scanning, fingerprint recognition, lD card reader, facialrecognition,NFC, and PSAM, effectively meeting the needs of diverse application scenarios. it alsomeets lP65 protection standards, providing complete protection against dust intrusion and splashresistance, meeting indoor and outdoor waterproof requirements.
Detail photos of Rugged Android Tablet with Barcode Scanner
Product Parameters of Rugged Android Tablet with Barcode Scanner
| PHYSICAL CHARACTERISTICS | |
| Dimension | 230mm(H)x146mm(W)x20mm(D)±2 mm |
| Weight | 1000g |
| Display | Tough 8.0 in. TFT-LCD(800x1280)touch screen with backlight |
| Backlight | LED backlight |
| Expansions | 2 PSAM, 1 SIM, 1 TF |
| Battery | Rechargeable li-ion polymer, 3.8V, 8000mAh |
| PERFORMANCE CHARACTERSTICS | |
| CPU | Cortex-A73 2.0GHz octa-core |
| Operating System | Android 10.0 |
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) |
| DEVELOPMENT ENVIRONMENT | |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| DATA COMMUNICATION | |
| WWAN |
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| WPAN | Bluetooth-v2.1+EDR, Bluetooth-v3.0+HS, Bluetooth-v4.2 |
| GPS | GPS(embedded A-GPS), accuracy of 10 m |
| CAMERA | |
| Resolution | Rear 13 megapixel, front 5.0 megapixel |
| Lens | Auto-focus with LED flash |
| ACCESSORIES | |
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable |
| Optional | Cradle |
| USER ENVIRONMENT | |
| Operating Temp. | -20℃ to 50℃ |
| Storage Temp | 20℃ to 70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range |
| Sealing | IP65 |
FAQ about Rugged Android Tablet with Barcode Scanner
Q1: What’s the NB801S’s screen size and protection?
A1: It has an 8.0-inch TFT-LCD touchscreen with Corning Gorilla Glass 3 and secondary tempered glass for durability.
Q2: How long does its battery last?
A2: The 8000mAh rechargeable battery provides over 12 hours of continuous operation.
Q3: What OS and storage does it offer?
A3: It runs Android 10.0, with 4GB RAM/64GB ROM and up to 256GB MicroSD expansion.
Q4: Is it waterproof and dustproof?
A4: Yes, it meets IP65 standards, protecting against dust and splashes for indoor/outdoor use.
Q5: What connectivity options are available?
A5: It supports WWAN, dual-band WLAN, Bluetooth, GPS, NFC, and diverse data collection functions.
