Rugged Tablet for Field Work
The XUXIN E-187 Rugged Field Service Tablet is built to perform reliably in demanding industrial environments, offering outstanding durability and performance. Constructed with high-strength, wear-resistant materials including a metal casing and reinforced frame, it maintains stable operation even under harsh conditions. Additionally, its buttons and ports are specially engineered with dustproof and waterproof protection to ensure long-term reliability in tough field applications.
Product Description
Introduction of Rugged Tablet for Field Work
XUXIN E-187 Rugged Field Service Tablet is designed for harsh environments such as industrial applications, with excellent durability and performance. It is made of high-strength, wear-resistant materials such as metal shells and reinforced frames to ensure good performance even in harsh environments. At the same time, the buttons and interfaces of the tablet are specially designed to prevent dust and moisture from entering.
Feature of Rugged Tablet for Field Work
1) Compact and portable design: The device is lightweight and easy to carry, ensuring convenient operation in the field.
2) Powerful performance: Equipped with a high-performance processor and large memory capacity, it delivers smooth and efficient performance even when handling complex workloads.
3) Versatile system compatibility: Supports multiple operating systems such as Windows 10, offering a wide range of applications and functions to meet diverse user requirements for field service operations.
4) High-definition, bright display: The high-resolution, high-brightness screen provides clear and sharp visuals, ensuring excellent readability under any lighting conditions.
5) Reliable outdoor protection: With IP68-rated dustproof and waterproof performance, the device operates steadily even in challenging and extreme environments.

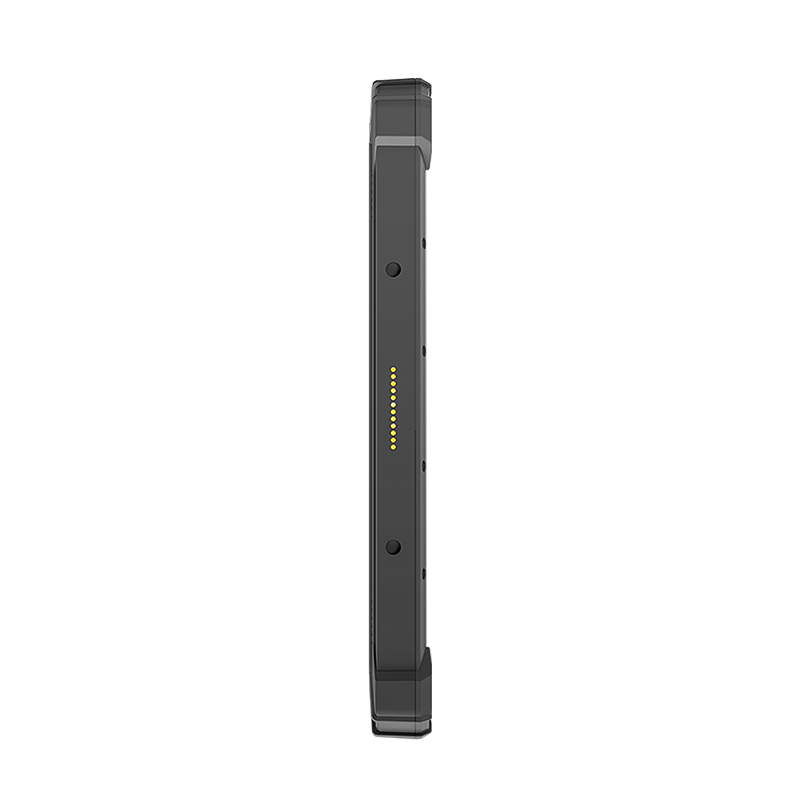

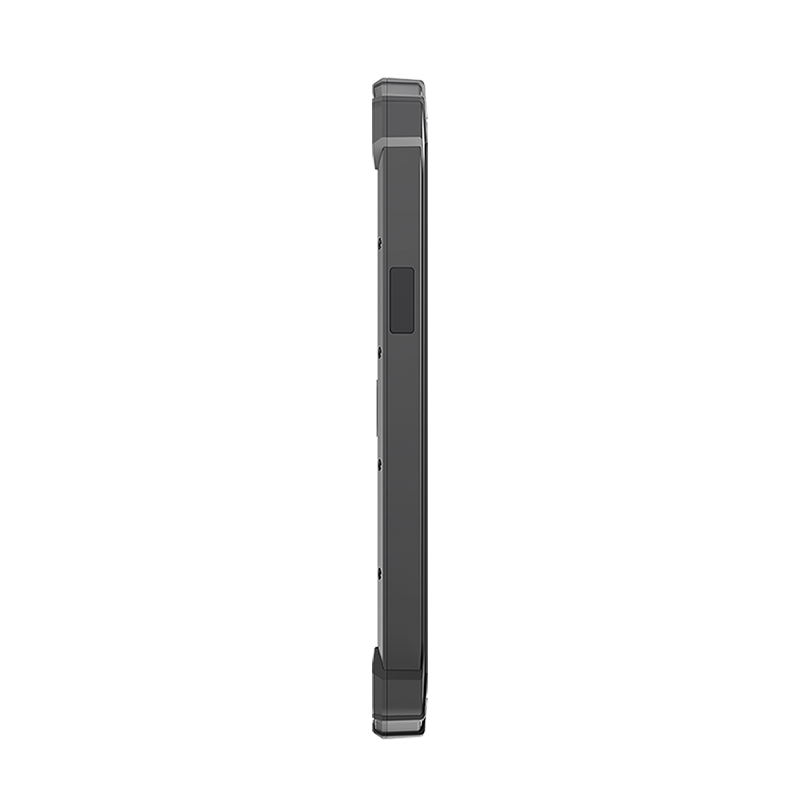

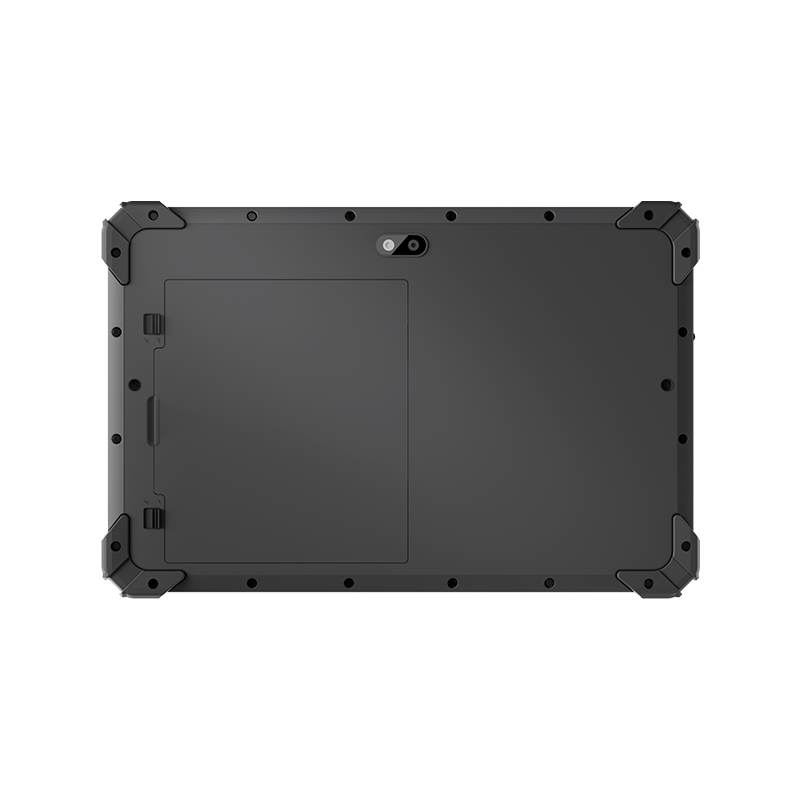

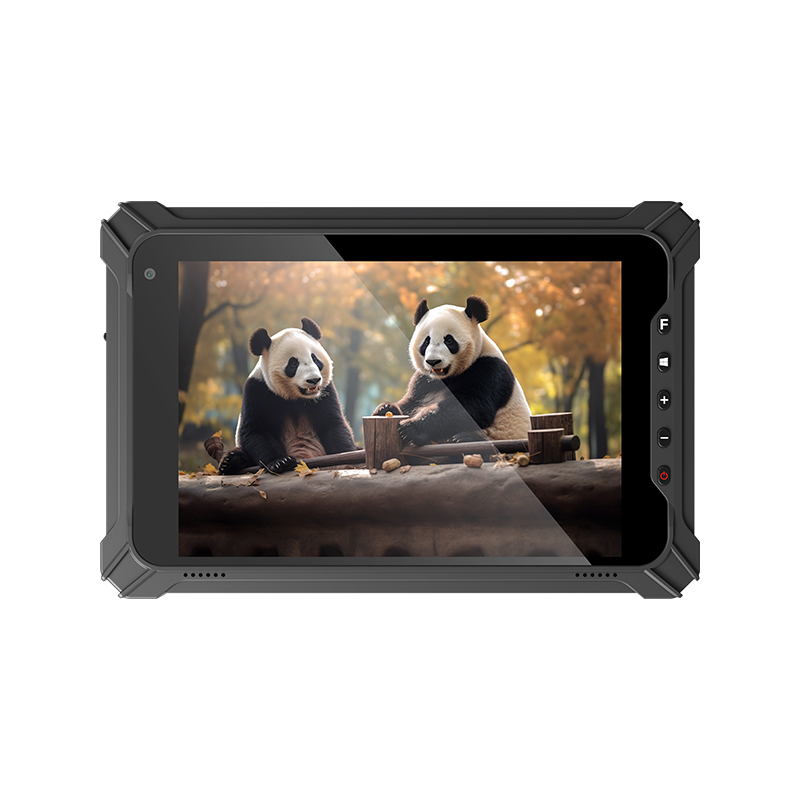

Detail photos of Rugged Tablet for Field Work
Product parameters of Rugged Tablet for Field Work
| Product Form | 8-inch reinforced tablet computer |
| Appearance size | 236.7*155.7*20 mm |
| Color | black |
| CPU | Intel JASPER LAKE N5100 processor, 4 cores and 4 threads, embedded with 4 MB SmartCache, TDP 6W， Maximum frequency 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory storage |
RAM 4GB DDR ROM 64GB |
| Operating system | Windows 10 Home，optional:Windows 10 Pro/Windows 10 IOT |
| Display |
Type: TFT Size: 8-inch frame mounted TFT color full screen 16:10 resolving power: 1200*1920 Brightness: 550cd/㎡ |
| Touch screen | 5-point tempered glass capacitive screen, G+G， Hardness 7H |
| Camera |
Front 5.0MP Rear 8.0MP, supports autofocus, with flashlight function |
| Key |
Power on/off button * 1 Volume+key * 1 Volume - Key * 1 F key * 1 (scan code key), customizable when there is no scan function Home button * 1 |
| Speaker | Built in 8 Ω/1W speakers * 2 |
| Mi Tou | Single MIC, sensitivity:- 42db, output impedance 2.2k Ω |
| Sensor | Gravity acceleration sensor |
| Real time clock | Built in polymer lithium-ion battery with a capacity of 3V/1mAh |
| Battery | Detachable polymer lithium-ion battery
Under a charging current of 5000mAh/7.6V, 19V/3.42A, it can be fully charged in 4 hours 6 hours (default 50% volume, WiFi connection, default 200 lumens brightness, playing 1080P high-definition video) |
| WIFI | WIFI 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI |
| Bluetooth | BT5.0 (BLE) class1 Transmission distance: 10m |
| 4G |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 optional：EC25-AF，750-VA，750-VSA |
| GPS | Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), cold start time not exceeding 60s |
| I/O interface | USB 3.0 * 1 (USB A port, HOST data transfer), Type C * 1 (charging and data transfer, support OTG * 1, support full speed 2.0 mode) |
| 3.5mm standard headphone jack * 1 | |
| Three in one card holder (Micro SD card, supports up to 512GB); Nano-SIM *1) | |
| HDMI 1.4a mini *1 | |
| 12PIN Pogo Pin * 1 (charging interface, USB signal connection base) | |
| The power adapter | Power input AC100V~240V 50Hz/60Hz output DC 19V 3.42A European standard |
| Pilot lamp | Blue indicator light * 1 (blue constant on when turned on, off when turned off) |
| Three defense characteristics | Working temperature:- 20 °C to 60 °C |
| Storage temperature:- 30 °C to 70 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% without condensation | |
| Protection level | IP65 |
| Optional Husks |
QR code，Honeywell N3680 |
|
NFC NXP NFC 13.56MHz Support ISO/IEC下14443A/14443B/15693/18092/Mifare protocol, card reading distance: 4cm Optional NXP300 |
