IP65 Industrial Waterproof Tablet
The XUXIN KJD3.7 Shock-Resistant Tablet is a rugged device built for demanding industrial environments, offering exceptional resistance to shocks and vibrations. It ensures stable operation under harsh conditions and is ideal for explosion-proof and vibration-resistant applications in sectors such as coal mining, petroleum, chemical processing, firefighting, and power industries.
Product Description
Introduction of IP65 Industrial Waterproof Tablet
XUXIN KJD3.7 Shock-resistant tablet is a sturdy and durable tablet designed specifically for industrial environments, with excellent shock resistance performance. It can operate stably in harsh environments such as vibration and impact, and is suitable for special explosion-proof and seismic resistant applications such as coal mines, petroleum, chemical, fire protection, and electricity.
Feature of IP65 Industrial Waterproof Tablet
1) Rugged structural design: Built with a reinforced and durable framework, the device can withstand strong vibrations and impacts. Its internal components are specially protected to ensure consistent and stable performance in high-vibration environments.
2) Powerful configuration: Equipped with a high-performance processor, ample memory, and large storage capacity to efficiently handle data processing and storage requirements in industrial applications.
3) Clear and vivid display: Features an 8-inch high-definition screen with excellent resolution, providing sharp and detailed visuals for easy viewing.
4) Efficient data collection: Supports functions such as QR code scanning, enabling users to conveniently capture and record data directly at the job site.

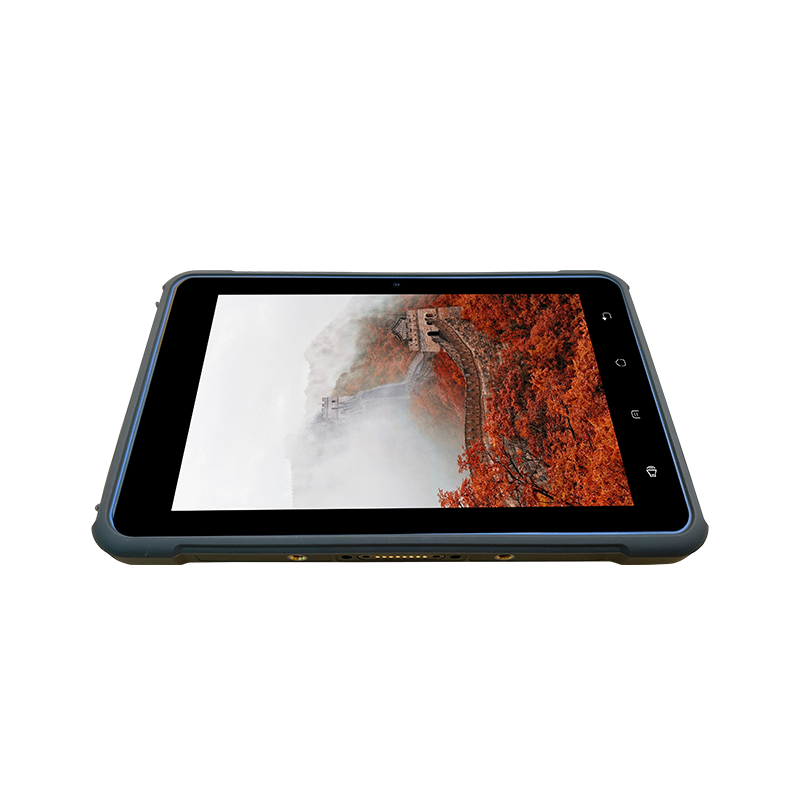

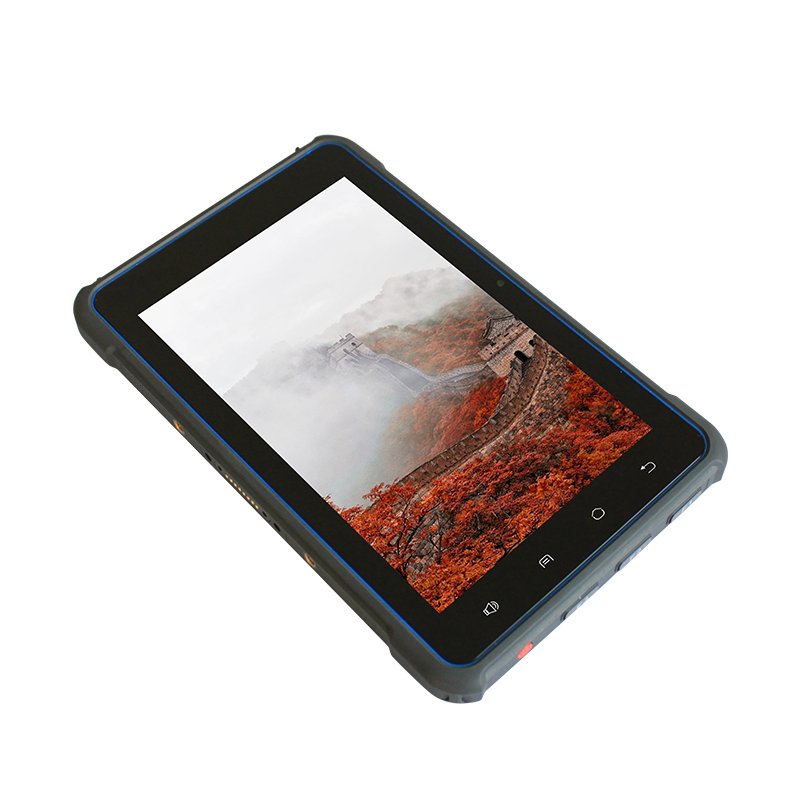

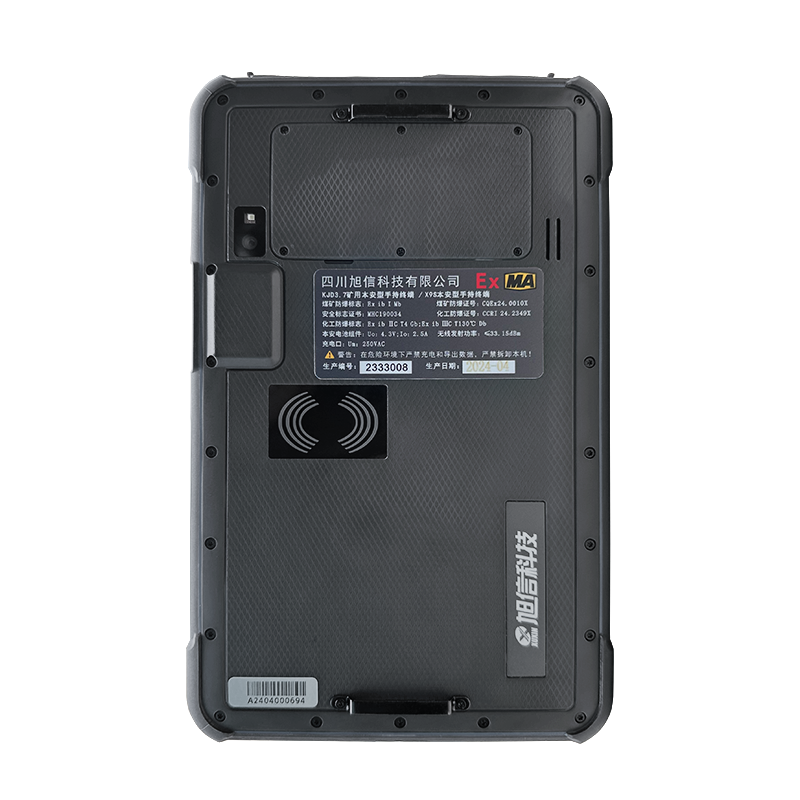

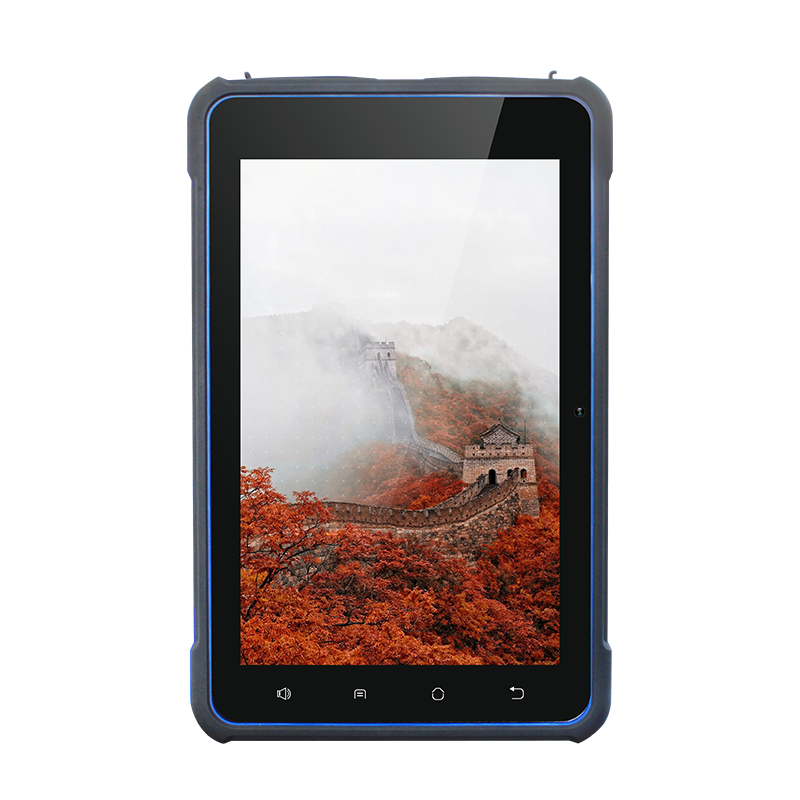

Detail photos of IP65 Industrial Waterproof Tablet
Product parameters of IP65 Industrial Waterproof Tablet
| Explosion proof mark | Ex ib I Mb；Ex ib IIC T4 Gb |
| Overall dimensions | 230×146×20mm |
| Whole machine weight | 650g |
| Display | 8-inch IPS high-definition screen, resolution 800 * 1280 |
| Touch screen | Corning Gorilla third-generation industrial grade multi touch capacitive screen |
| Expansion Slots | 2 PSAM card slots (expandable to customize 4 PSAM cards), 2 SIM card slots, and 1 MicroSD (TF) card slot |
| Communication interface | 1 Type-C interface, 1 Type-A interface, 1 DC3.5mm charging port |
| Indicator light | Charging indicator light |
| keyboard | Side scan key, side function key |
| Camera | Front 5 million pixels, rear 13 million pixels, camera with flash and autofocus function |
| Flashlight | Low power LED lighting for emergency use |
| Location | GPS/GLONASS/Beidou/Galileo |
| CPU | Eight core 64 bit, MT6762 main frequency 2.0GHz |
| Memory capacity | RAM：4GB ROM：64GB |
| Operating system | Android10.0 |
| Expand memory | Supports 256GB Micro SD card |
| 4G |
TD-LTEBand38/39/40/41 FDD-LTEBand1,2,3,4,7,17,20 |
| 3G | WCDMA(850/1900/2100MHz); |
| 2G | GSM/GPRS/Edge（850/900/1800/1900MHz） |
| WIFI | 2.4G/5G dual band, compliant with IEEE802.11a/b/g/n/ac |
| Bluetooth | Compliant with Bluetooth 4.2 |
| Operating temperature | -20℃～50℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5% to 95% non condensable |
| Protection level | IP65 |
| Battery capacity | 6000mAh |
| The following configurations are optional modules for customers | |
| 2D barcode collection (optional) | |
| 2D scanning engine | Honeywell-6603 |
| Support two-dimensional barcode types | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,USPostNet,USPlanet,UKPostal,AustralianPostal,JapanPostal,Dutch |
| Ultra high frequency RFID (optional) | |
| Support frequency | 915MHz, 865MHz (865-868MHz or 902-928MHz) |
| Support agreement | Regarding EPCC1GEN2/ISO18000-6C protocol |
| Scan Distance | Optional distance of 1-6 meters (depending on label and environment) |
| High frequency RFID (optional) | |
| Support agreement | Regarding the dual protocols of ISO15693 and ISO14443 |
| Scan Distance | 0-7 centimeters (depending on label and environment) |
| Low frequency | 125K/134.2K animal ear tags |
| High frequency (CPU card) | Supports reading and writing of CPU cards, used in conjunction with PSAM |
| Active 2.45G (customized) | Distance of 200m, 200 labels can be read at once |
| Fingerprint recognition (optional) | |
| Module functionality | Fingerprint input/comparison/deletion, image processing, etc |
| Sensor | TCSI biometric fingerprint/FBI fingerprint authentication |
| Sensor type | Capacitive inductive type |
| Image size | 256*360pixel |
| Resolving power | 500 DPI |
| Storage capacity | 1000 pieces |
| ZigBee (optional) | |
| ZigBee | Use wireless networking for data collection |
| Other optional modules (optional) | |
| Electric infrared (customized) | Support power infrared function |
| 433M (customized) | Adjustable distance |
