X9S Rugged Tablet For Outdoor Use
The XUXIN X9S Rugged Outdoor Tablet is a high-performance device built for wireless communication in specialized explosion-hazard environments, including petroleum, chemical, firefighting, and power sectors. It offers outstanding waterproof, dustproof, and drop-resistant capabilities, along with certified explosion-proof performance, ensuring reliable and stable operation even in demanding outdoor conditions.
Product Description
Introduction of X9S Rugged Tablet For Outdoor Use
XUXIN X9S Rugged Outdoor Tablet is a high-performance tablet designed specifically for wireless communication systems in special explosion-proof areas such as petroleum, chemical, fire, and power. It has excellent three proof (waterproof, dustproof, anti fall) performance and explosion-proof performance, and can operate stably in harsh outdoor environments.
Feature of X9S Rugged Tablet For Outdoor Use
1) Reliable protection: With an IP65 rating, the device is resistant to water, dust, and impacts, ensuring durability in challenging environments.
2) Powerful performance: Featuring a high-performance processor, 4GB of RAM, and 64GB of storage, it delivers smooth operation and ample space for applications and data.
3) Long-lasting battery: Equipped with a rechargeable lithium-ion battery, the tablet supports extended use in outdoor settings without frequent recharging.
4) Durable display: The screen is designed to resist scratches and impacts, making it ideal for tough outdoor conditions.
5) Seamless connectivity: Supports Wi-Fi, enabling efficient data transfer and remote communication for users in the field.

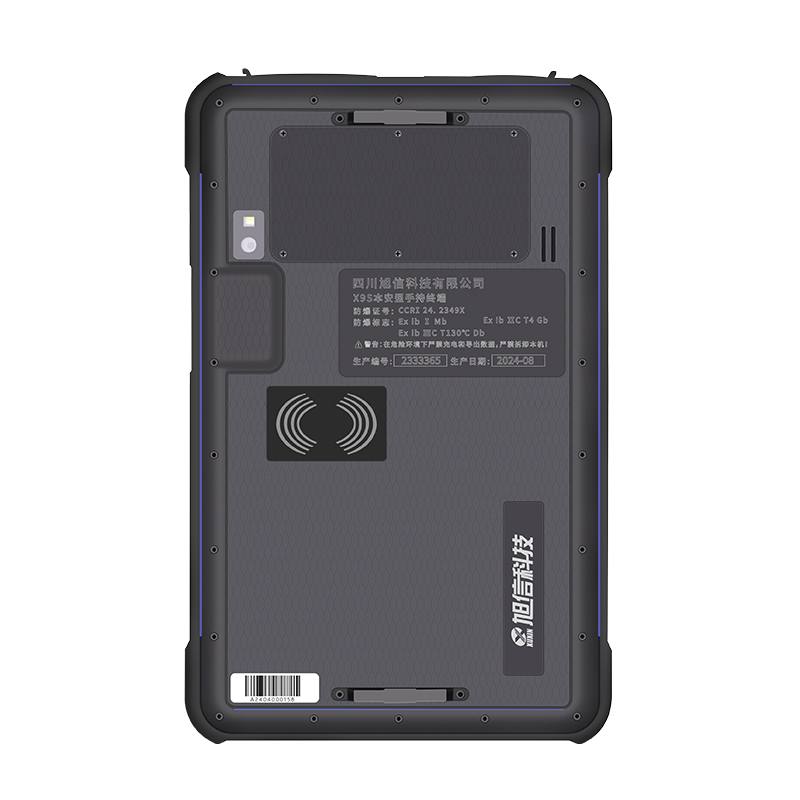

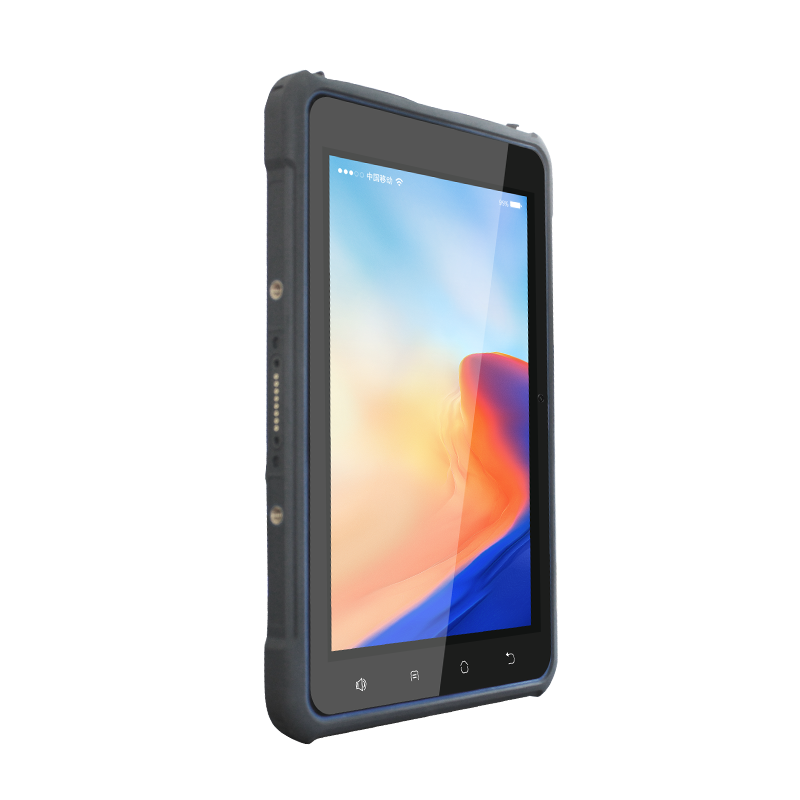

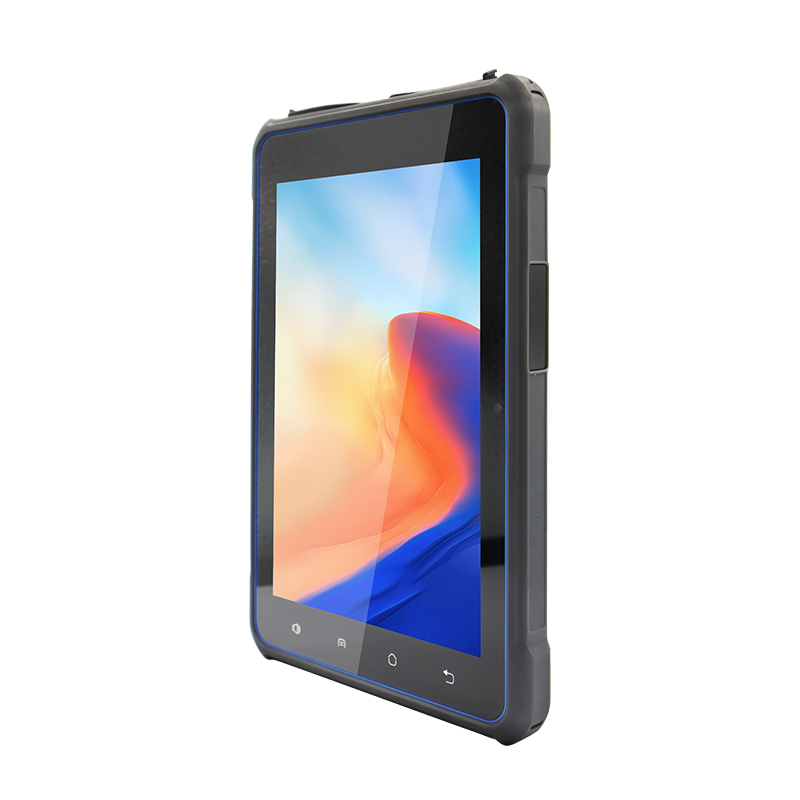

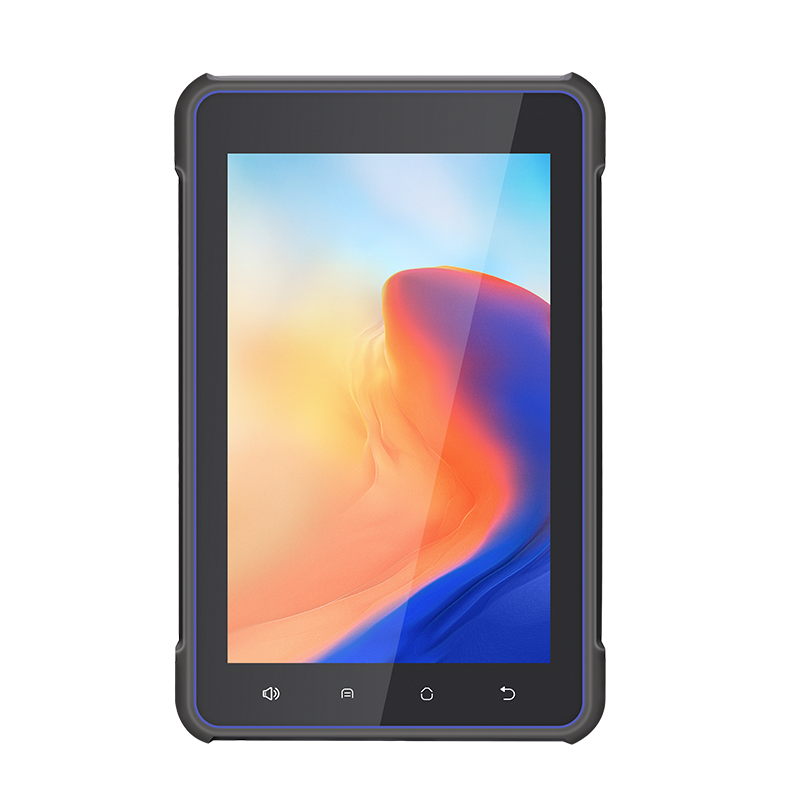

Detail photos of X9S Rugged Tablet For Outdoor Use
Product parameters of X9S Rugged Tablet For Outdoor Use
| Explosion proof mark | Ex ib I Mb；Ex ib IIC T4 Gb |
| Overall dimensions | 230×146×20mm |
| Whole machine weight | 650g |
| Display | 8-inch IPS high-definition screen, resolution 800 * 1280 |
| Touch screen | Corning Gorilla third-generation industrial grade multi touch capacitive screen |
| Expansion Slots | 2 PSAM card slots (expandable to customize 4 PSAM cards), 2 SIM card slots, and 1 MicroSD (TF) card slot |
| Communication interface | 1 Type-C interface, 1 Type-A interface, 1 DC3.5mm charging port |
| Indicator light | Charging indicator light |
| keyboard | Side scan key, side function key |
| Camera | Front 5 million pixels, rear 13 million pixels, camera with flash and autofocus function |
| Flashlight | Low power LED lighting for emergency use |
| Location | GPS/GLONASS/Beidou/Galileo |
| CPU | Eight core 64 bit, MT6762 main frequency 2.0GHz |
| Memory capacity | RAM：4GB ROM：64GB |
| Operating system | Android10.0 |
| 4G |
TD-LTEBand38/39/40/41 FDD-LTEBand1,2,3,4,7,17,20 |
| 3G | WCDMA(850/1900/2100MHz); |
| 2G | GSM/GPRS/Edge（850/900/1800/1900MHz） |
| WIFI | 2.4G/5G dual band, compliant with IEEE802.11a/b/g/n/ac |
| Bluetooth | Compliant with Bluetooth 4.2 |
| Operating temperature | -20℃～50℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5% to 95% non condensable |
| Protection level | IP65 |
| Battery capacity | 6000mAh |
| The following configurations are optional modules for customers | |
| 2D barcode collection (optional) | |
| 2D scanning engine | Honeywell-6603 |
| Support two-dimensional barcode types | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,USPostNet,USPlanet,UKPostal,AustralianPostal,JapanPostal,Dutch |
| Ultra high frequency RFID (optional) | |
| Support frequency | 915MHz, 865MHz (865-868MHz or 902-928MHz) |
| Support agreement | Regarding EPCC1GEN2/ISO18000-6C protocol |
| Scan Distance | Optional distance of 1-6 meters (depending on label and environment) |
| High frequency RFID (optional) | |
| High frequency | RFID (optional) |
| Support agreement | Regarding the dual protocols of ISO15693 and ISO14443 |
| Scan Distance | 0-7 centimeters (depending on label and environment) |
| Low frequency | 125K/134.2K animal ear tags |
| High frequency (CPU card) | Supports reading and writing of CPU cards, used in conjunction with PSAM |
| Active 2.45G (customized) | Distance of 200m, 200 labels can be read at once |
| Fingerprint recognition (optional) | |
| Module functionality | Fingerprint input/comparison/deletion, image processing, etc |
| Sensor | TCSI biometric fingerprint/FBI fingerprint authentication |
| Sensor type | Capacitive inductive type |
| Image size | 256*360pixel |
| Resolving power | 500 DPI |
| Storage capacity | 1000 pieces |
| ZigBee (optional) | |
| ZigBee | Use wireless networking for data collection |
| Other optional modules (optional) | |
| Electric infrared (customized) | Support power infrared function |
| 433M (customized) | Adjustable distance |
FAQ
Q1. Why choose you?
A1: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q2. You are factory or trading company?
A2: We are 100% factory.
Q3. What is your payment?
A3: T/T wire bank transfer.
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
