Windows Rugged Tablets for Constructions
The XUXIN Expad-10 is a rugged Windows tablet built for demanding environments, running the Windows 10 operating system. Its robust construction and reliable performance make it well-suited for applications in industrial automation, petrochemical industries, outdoor exploration, and other challenging fields.
Product Description
Introduction of Windows Rugged Tablets for Constructions
XUXIN Expad-10 is a Rugged Windows Tablet designed specifically for harsh environments, supporting the Windows 10 operating system. It has been widely used in industrial automation, petrochemicals, outdoor exploration and other fields due to its excellent performance and stable structure.
Feature of Windows Rugged Tablets for Constructions
1) Durable 10.1-inch touchscreen: Constructed from high-strength, high-hardness materials with a hardness rating of 7H or above, the screen resists scratches without requiring a protective film.
2) High-performance hardware: Powered by an Intel processor with 8GB of RAM and 128GB of internal storage, the tablet ensures smooth operation and ample space for applications and data.
3) Long-lasting, safe battery: Features a 5000mAh intrinsically safe lithium battery designed for extended use. The battery is removable, allowing easy replacement or recharging as needed.
4) Integrated safety monitoring: Includes various sensors, such as temperature and pressure sensors, to monitor equipment status in real time, ensuring safe and reliable operation.
5) Reliable power management: The detachable 5000mAh intrinsically safe lithium battery provides long-term usage and convenient backup battery replacement or charging options.

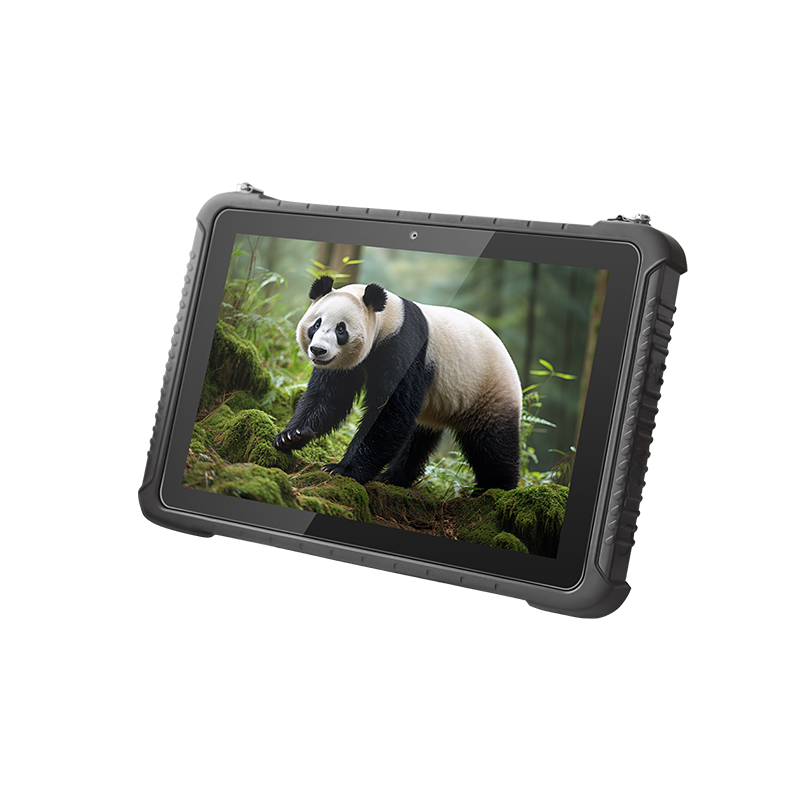

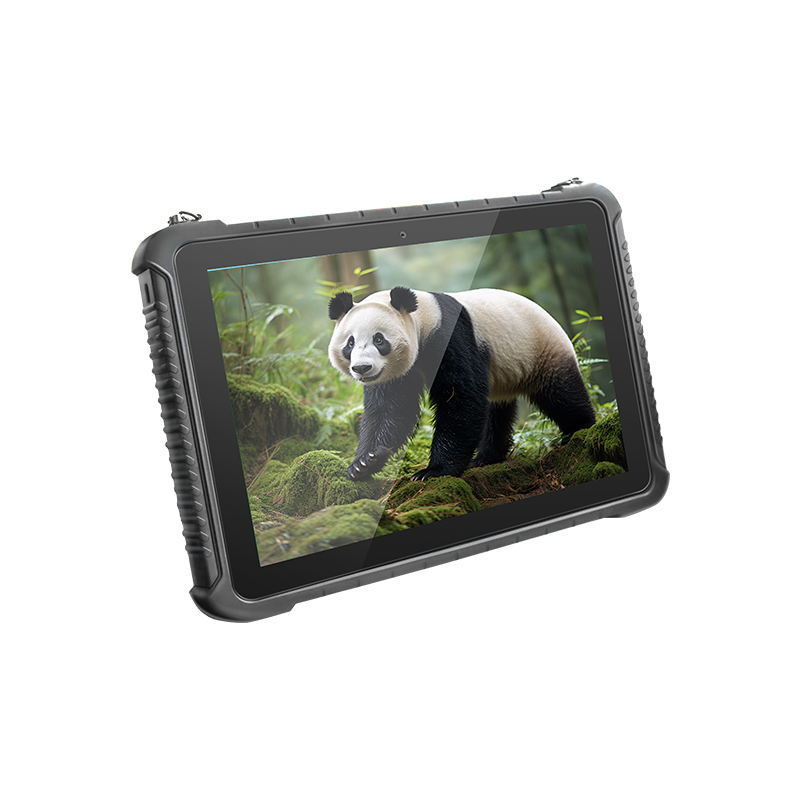

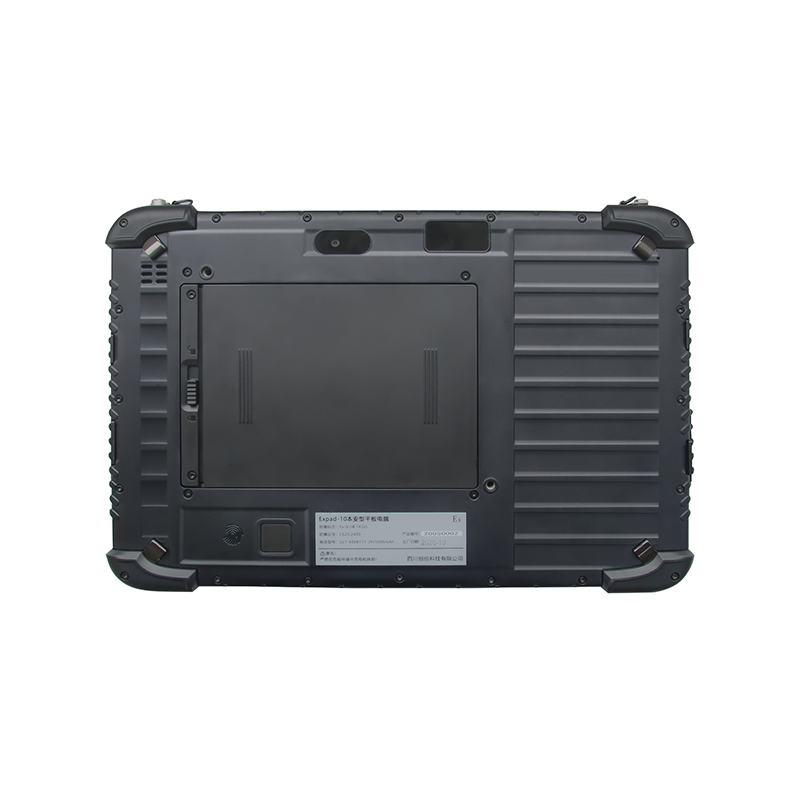

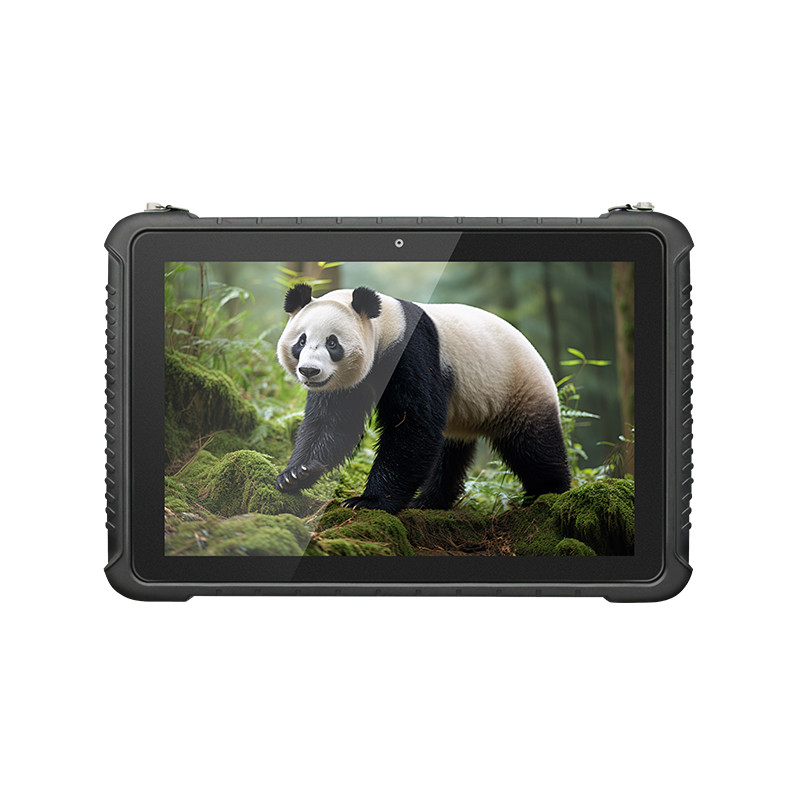

Detail photos of Windows Rugged Tablets for Constructions
Product parameters of Windows Rugged Tablets for Constructions
| Explosion proof sign | Ex ib IIB T4 Gb |
| Outline dimension | 280.4*187*26.6mm |
| Weight | Bare machine 1014g |
| Colour | black |
| Screen size | 10.1 inch 16:10 |
| Screen resolution | 1200×1920 |
| Brightness | 330 cd/m2 |
| Touch Screen | 10 point capacitive screen, G+G, hardness above 7H, scratch resistant |
| Front camera | 2.0MP with charging indicator light |
| Rear Camera | 8.0MP （USB） |
| Speaker | Built in 8 Ω/0.8W waterproof speaker x 1 |
| Mic | Sensitivity: -42dB, output impedance 2.2k Ω |
| Battery capacity | Intrinsic safety type 5000mAh |
| Endurance | 6 hours (default 50% volume, default 200 lumens brightness, playing 1080P high-definition video) |
| CPU | Intel JASPER LAKE N5100，4M Cache, 2.20 GHz |
| GPU | Intel® HD Graphics 515 |
| Operating system | windows 10 Home 64bit |
| RAM | 8GB |
| SSD | 128GB，Optional 256GB |
| WIFI | WIFI 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI Intel 3165D2WG (3.3v) |
| Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m |
| 4G |
Mobile EC25-EC (European version) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (with poor support from China Unicom and China Telecom, only B8 support without TDD frequency band) Europe, Middle East, Africa |
| GPS | support |
| One-dimensional code |
Optional, MOTO SE655E100R, optical resolution: 5ml, scanning speed: 50 times/s, supports code systems: UPC/EAN, Bookland EAN, UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128, Code 39,Trioptic Code 39 , Code 32,Code 93 ,Code 11 |
| QR code |
Optional, EM80 hard decoding, optical resolution: 5ml, scanning speed: 50 times/s, supports code systems: PDF417, MicroPDF417 Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses, Han Xin,Han Xin Inverse |
| Expand external storage | TF x1 max：128G |
| SIM | SIM x1 |
| USB2.0 | Micr USB 2.0x1 |
| USB3.0 | USB 3.0x1 |
| DC interface | DC 12V4A ∮4.0mm |
| Headphone jack | ∮3.5mm |
| HDMI interface | HDMI 1.4a Type C |
| Pogo Pin | 12pin Pogo Pin |
| UART serial port | RS232 TTL |
FAQ
Q1. Why choose you?
A1: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q2. You are factory or trading company?
A2: We are 100% factory.
Q3. What is your payment?
A3: T/T wire bank transfer.
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
