X9S Android Rugged Tablet
XUXIN X9S Android Rugged Tablet is a robust device engineered for demanding industrial and hazardous environments. It integrates advanced explosion-proof technology with a stable Android operating system to deliver a secure, dependable, and high-performance mobile computing experience. This tablet is ideal for use in explosion-prone areas such as petroleum, chemical, fire protection, and electric power industries, as well as in challenging outdoor or field conditions.
Product Description
Introduction of X9S Android Rugged Tablet
XUXIN X9S Android Rugged Tablet is a tablet designed specifically for industrial and special environments, combining advanced explosion-proof technology and mature Android operating system to provide users with a safe, reliable, and efficient mobile computing experience. It is suitable for special explosion-proof areas such as petroleum, chemical, fire protection, and electricity, as well as harsh environments such as outdoors and wilderness.
Feature of X9S Android Rugged Tablet
1) Rugged protection: Designed to be waterproof, dustproof, and drop-resistant, making it ideal for demanding environments such as outdoor and remote fieldwork.
2) Certified explosion-proof safety: Engineered and tested to meet international explosion-proof standards, ensuring safe operation in hazardous areas.
3) Versatile connectivity: Equipped with multiple ports, including USB and HDMI, for seamless data transfer and device expansion.
4) Wireless communication support: Enables network connectivity for voice calls and data exchange between tablets or with servers.
5) Portable and convenient: Compact and lightweight design allows it to be easily attached to personnel belts, providing quick and convenient access for staff in the field.

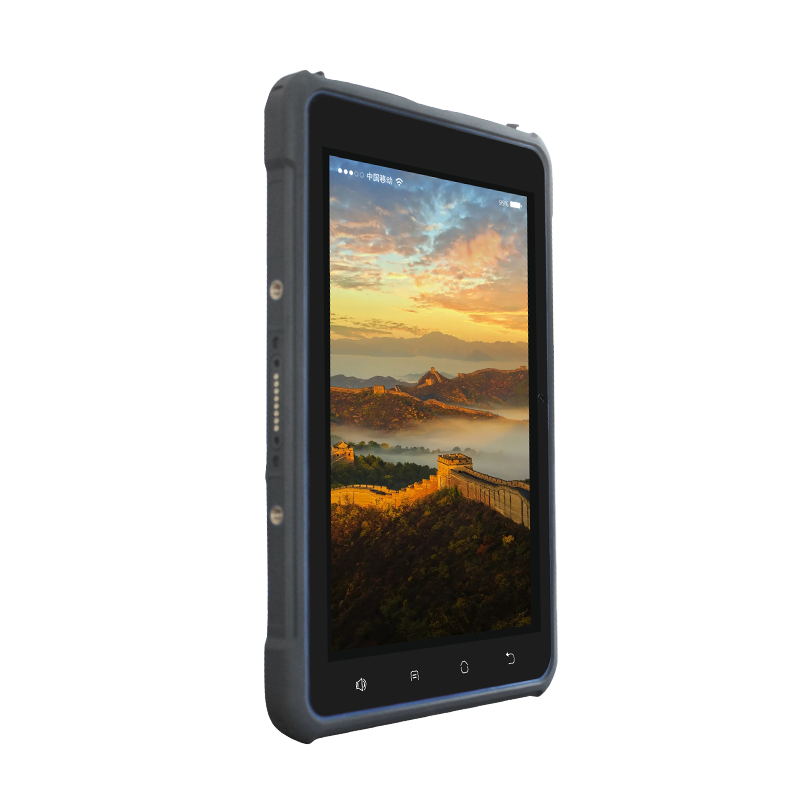

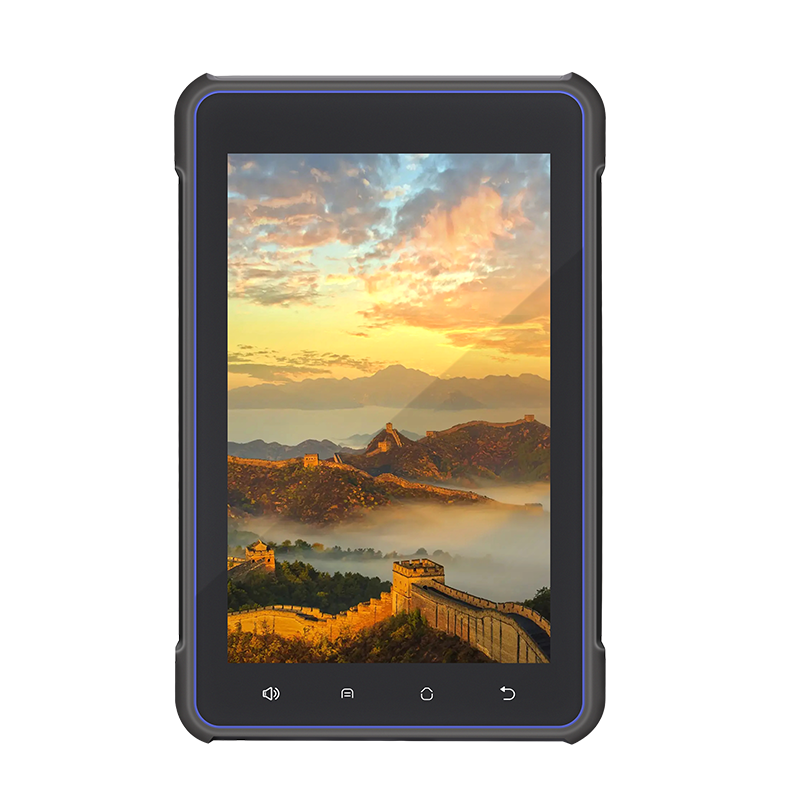

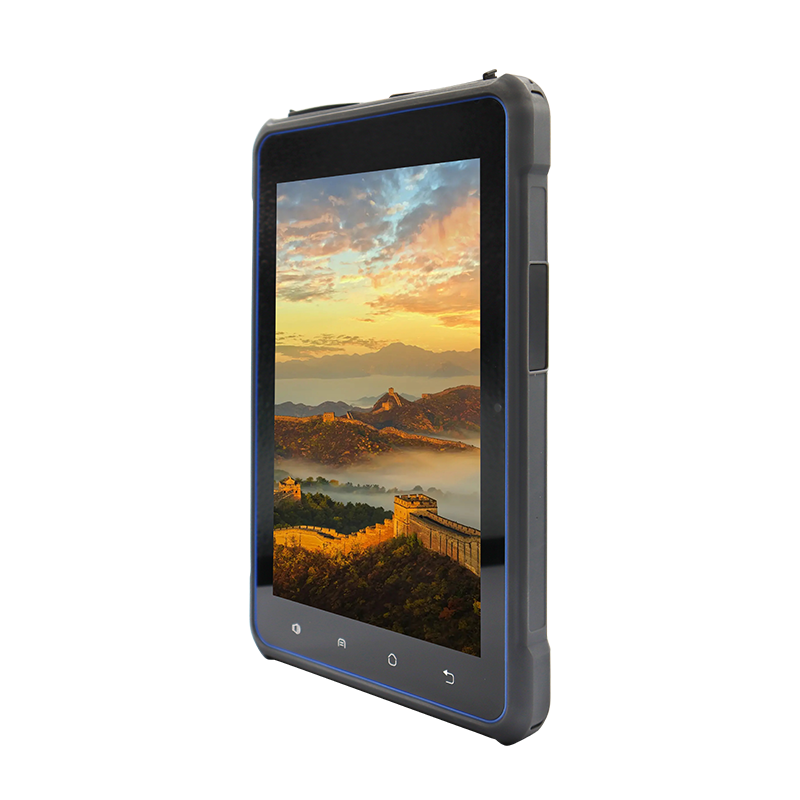

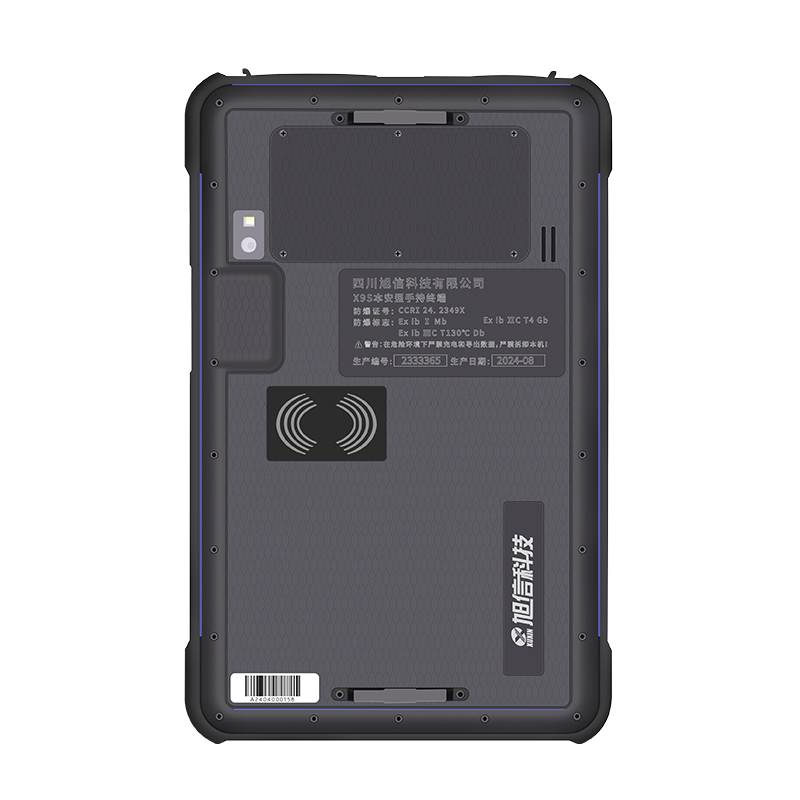

Detail photos of X9S Android Rugged Tablet
Product parameters of X9S Android Rugged Tablet
| Explosion proof mark | Ex ib I Mb；Ex ib IIC T4 Gb |
| Overall dimensions | 230×146×20mm |
| Whole machine weight | 650g |
| Display | 8-inch IPS high-definition screen, resolution 800 * 1280 |
| Touch screen | Corning Gorilla third-generation industrial grade multi touch capacitive screen |
| Expansion Slots | 2 PSAM card slots (expandable to customize 4 PSAM cards), 2 SIM card slots, and 1 MicroSD (TF) card slot |
| Communication interface | 1 Type-C interface, 1 Type-A interface, 1 DC3.5mm charging port |
| Indicator light | Charging indicator light |
| keyboard | Side scan key, side function key |
| Camera | Front 5 million pixels, rear 13 million pixels, camera with flash and autofocus function |
| Flashlight | Low power LED lighting for emergency use |
| Location | GPS/GLONASS/Beidou/Galileo |
| CPU | Eight core 64 bit, MT6762 main frequency 2.0GHz |
| Memory capacity | RAM：4GB ROM：64GB |
| Operating system | Android10.0 |
| Expand memory | Supports 256GB Micro SD card |
| 4G |
TD-LTEBand38/39/40/41 FDD-LTEBand1,2,3,4,7,17,20 |
| 3G | WCDMA(850/1900/2100MHz); |
| 2G | GSM/GPRS/Edge（850/900/1800/1900MHz） |
| WIFI | 2.4G/5G dual band, compliant with IEEE802.11a/b/g/n/ac |
| Bluetooth | Compliant with Bluetooth 4.2 |
| Operating temperature | -20℃～50℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5% to 95% non condensable |
| Protection level | IP65 |
| Battery capacity | 6000mAh |
| The following configurations are optional modules for customers | |
| 2D barcode collection (optional) | |
| 2D scanning engine | Honeywell-6603 |
| Support two-dimensional barcode types | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,USPostNet,USPlanet,UKPostal,AustralianPostal,JapanPostal,Dutch |
| Ultra high frequency RFID (optional) | |
| Support frequency | 915MHz, 865MHz (865-868MHz or 902-928MHz) |
| Support agreement | Regarding EPCC1GEN2/ISO18000-6C protocol |
| Scan Distance | Optional distance of 1-6 meters (depending on label and environment) |
| High frequency RFID (optional) | |
| Support frequency | 13.56MHz |
| Support agreement | Regarding the dual protocols of ISO15693 and ISO14443 |
| Scan Distance | 0-7 centimeters (depending on label and environment) |
| Low frequency | 125K/134.2K animal ear tags |
| High frequency | (CPU card) Supports reading and writing of CPU cards, used in conjunction with PSAM |
| Active 2.45G (customized) | Distance of 200m, 200 labels can be read at once |
| Fingerprint recognition (optional) | |
| Module functionality | Fingerprint input/comparison/deletion, image processing, etc |
| Sensor | TCSI biometric fingerprint/FBI fingerprint authentication |
| Sensor type | Capacitive inductive type |
| Image size | 256*360pixel |
| Resolving power | 500 DPI |
| Storage capacity | 1000 pieces |
| ZigBee (optional) | |
| ZigBee | Use wireless networking for data collection |
| Other optional modules (optional) | |
| Electric infrared (customized) | Support power infrared function |
| 433M (customized) | Adjustable distance |
FAQ
Q1. Why choose you?
A1: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q2. You are factory or trading company?
A2: We are 100% factory.
Q3. What is your payment?
A3: T/T wire bank transfer.
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
